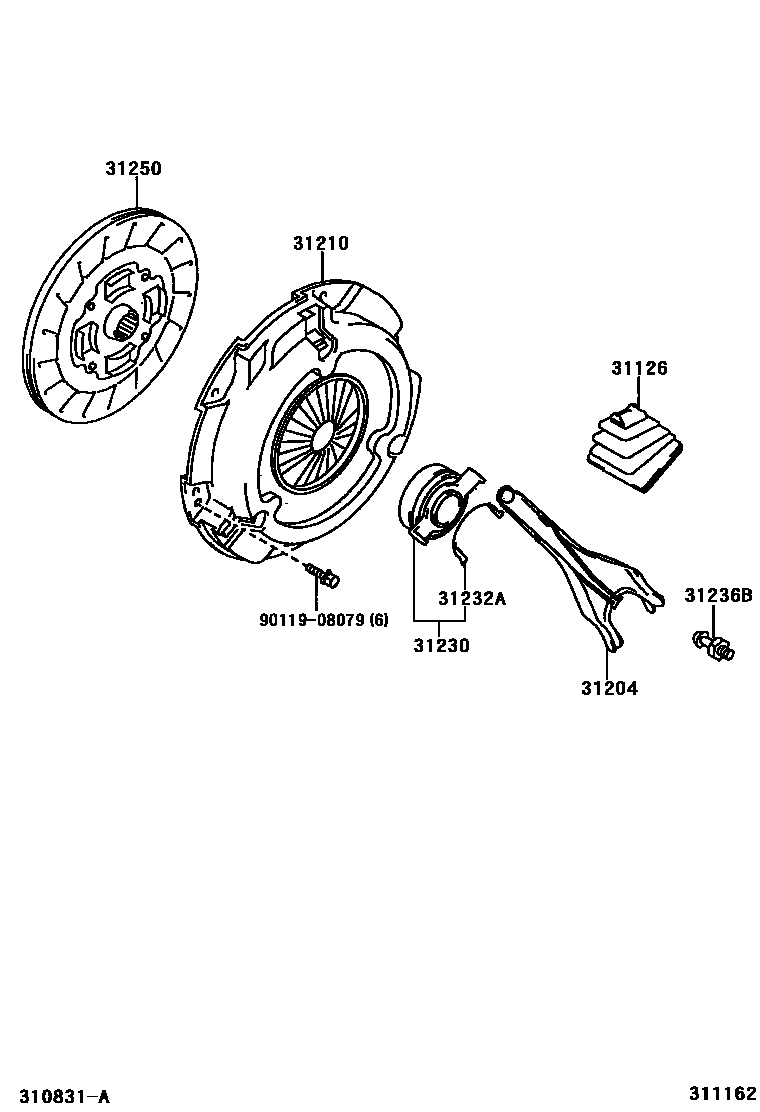

Toyota SOLARA — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-32010iACV30..5F200307-200605

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iACV30..5F200307-200605

31210COVER ASSY, CLUTCH

main31210-28060iACV30..5F200307-200509

main31210-33040iACV30..5F200510-200605

main31210-33041iACV30..5F200703-200704

main31210-33042iACV30..5F200704-200808

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iACV30..5F200307-200605

main31230-33020iACV30..5F200607-200808

31232ACLIP, RELEASE BEARING HUB

main31232-20020iACV30..5F200307-200605

31236BSUPPORT, RELEASE FORK

main31236-20060iACV30..5F200605-200808

main31236-20061iACV30..5F200307-200605

31250DISC ASSY, CLUTCH

main31250-28180iACV30..5F200307-200510

main31250-28181iACV30..5F200511-200605

sub31250-33060

main31250-33040iACV30..5F200605-200808

sub31250-33041

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
