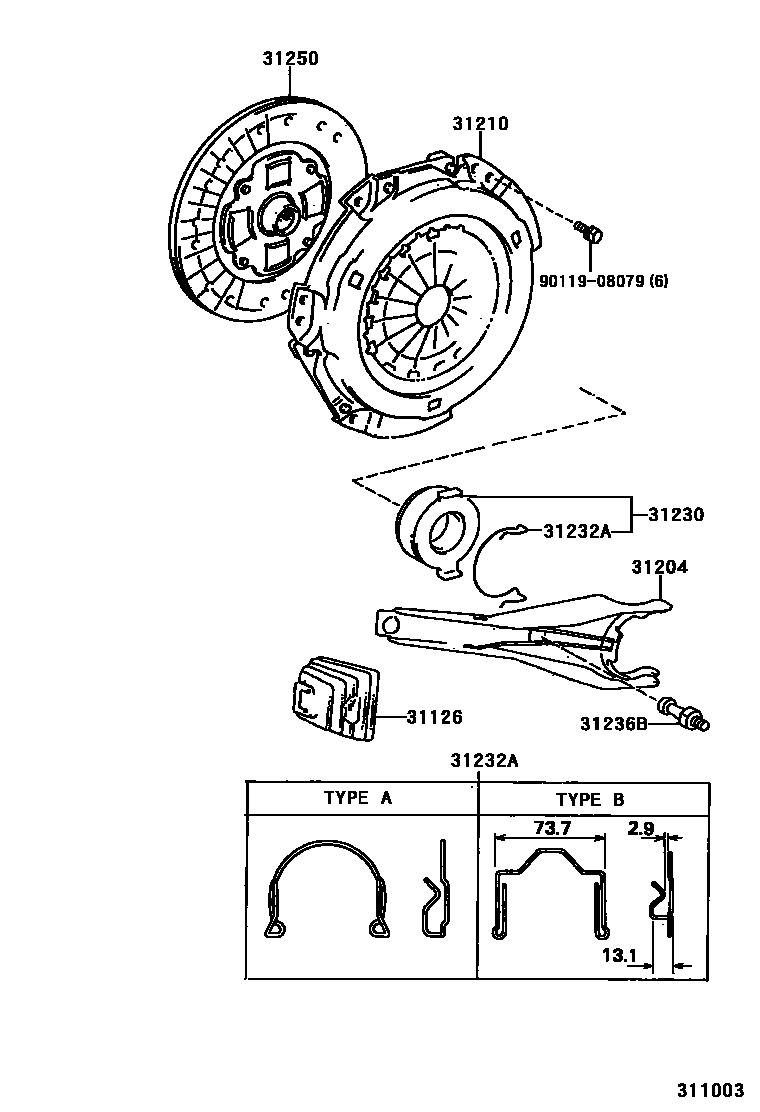

Toyota SOLARA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20080iMCV20..MTM199806-200207

main31126-32010iACV20,SXV20..MTM199806-200212

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20100iACV20,SXV20..MTM199806-200212

main31204-20111iMCV20..MTM199806-200207

31210COVER ASSY, CLUTCH

main31210-28060iACV20..MTM200107-200212

sub31210-33040

main31210-32130iSXV20..MTM199806-200107

sub31210-33030

main31210-33021iMCV20..MTM199806-200207

sub31210-33022

31230BEARING ASSY, CLUTCH RELEASE

main31230-20170iACV20..MTM200107-200212

main31230-20190iMCV20..MTM199806-199811

main31230-20191iMCV20..MTM199811-200207

main31230-32060iSXV20..MTM199806-200107

31232ACLIP, RELEASE BEARING HUB

main31232-20020iACV20..MTM200107-200212

main31232-20031iMCV20..MTM199806-200207

main31232-32050iSXV20..MTM199806-200107

TYPE B:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-20060iACV20..MTM200107-200212

main31236-20070iMCV20..MTM199806-200207

main31236-32010iSXV20..MTM199806-200107

31250DISC ASSY, CLUTCH

main31250-20141iMCV20..MTM199806-199904

sub31250-20142

main31250-20250iSXV20..MTM199806-199812

main31250-20251iSXV20..MTM199812-200107

sub31250-20252

main31250-28180iACV20..MTM200107-200212

sub31250-28181

main31250-33030iMCV20..MTM199904-200005

main31250-33031iMCV20..MTM200005-200207

sub31250-33032

9011908079

main90119-08079

8 parts on this diagram · 2 diagrams in section
