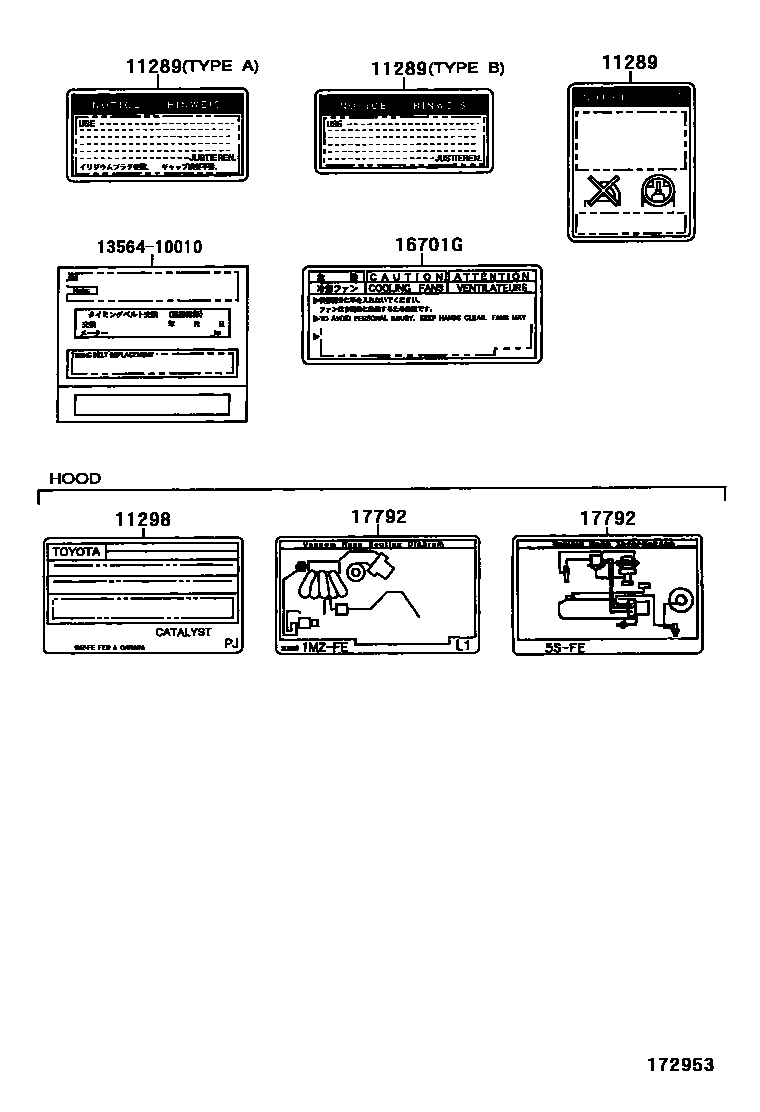

Toyota SOLARA — CAUTION PLATE & NAME PLATE (ENGINE)

11289PLATE, SPARK PLUG CAUTION

main11289-20010i1MZFE..MCV20200207-200212

main11289-28010i2AZFE..ACV20200107-200212

TYPE A:REFER TO ILLUSTRATION

main11289-50010i2AZFE..ACV20200107-200212

TYPE B:REFER TO ILLUSTRATION

11298PLATE, EMISSION CONTROL INFORMATION

main11298-20170i1MZFE..MCV20..ATM199806-199908

main11298-20181i1MZFE..MCV20..ATM..USA199806-199908

CALIFORNIA SPEC

main11298-20240i1MZFE..MCV20..MTM199806-199908

main11298-20300i1MZFE..MCV20..ATM199908-200008

main11298-20310i1MZFE..MCV20..ATM..USA199908-200008

CALIFORNIA SPEC

main11298-20320i1MZFE..MCV20..MTM199908-200008

main11298-20390i1MZFE..MCV20..ATM200008-200107

main11298-20400i1MZFE..MCV20..MTM200008-200107

main11298-20460i1MZFE..MCV20..ATM200107-200207

main11298-20470i1MZFE..MCV20..MTM200107-200207

main11298-20600i1MZFE..MCV20200207-200212

main11298-28190i2AZFE..ACV20200107-200203

main11298-28191i2AZFE..ACV20200203-200207

main11298-28250i2AZFE..ACV20200207-200212

main11298-7A490i5SFE..SXV20199806-199808

main11298-7A491i5SFE..SXV20199808-199908

main11298-7A521i5SFE..SXV20..USA199806-199908

CALIFORNIA SPEC

main11298-7A580i5SFE..SXV20..CP199908-200008

main11298-7A590i5SFE..SXV20..CVT200002-200008

main11298-7A650i5SFE..SXV20..CP200008-200107

main11298-7A660i5SFE..SXV20..CVT200008-200107

16701GLABEL, CAUTION

main88723-03010i1MZFE,5SFE..MCV20,SXV20199806-199908

main88723-0A050i1MZFE,5SFE..MCV20,SXV20199908-200207

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-20110i1MZFE..MCV20199806-199908

main17792-20170i1MZFE..MCV20199908-200207

main17792-74560i5SFE..SXV20199806-199908

main17792-74640i5SFE..SXV20199908-200107

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

5 parts on this diagram · 1 diagram in section
