Toyota SOLARA — ANTENNA

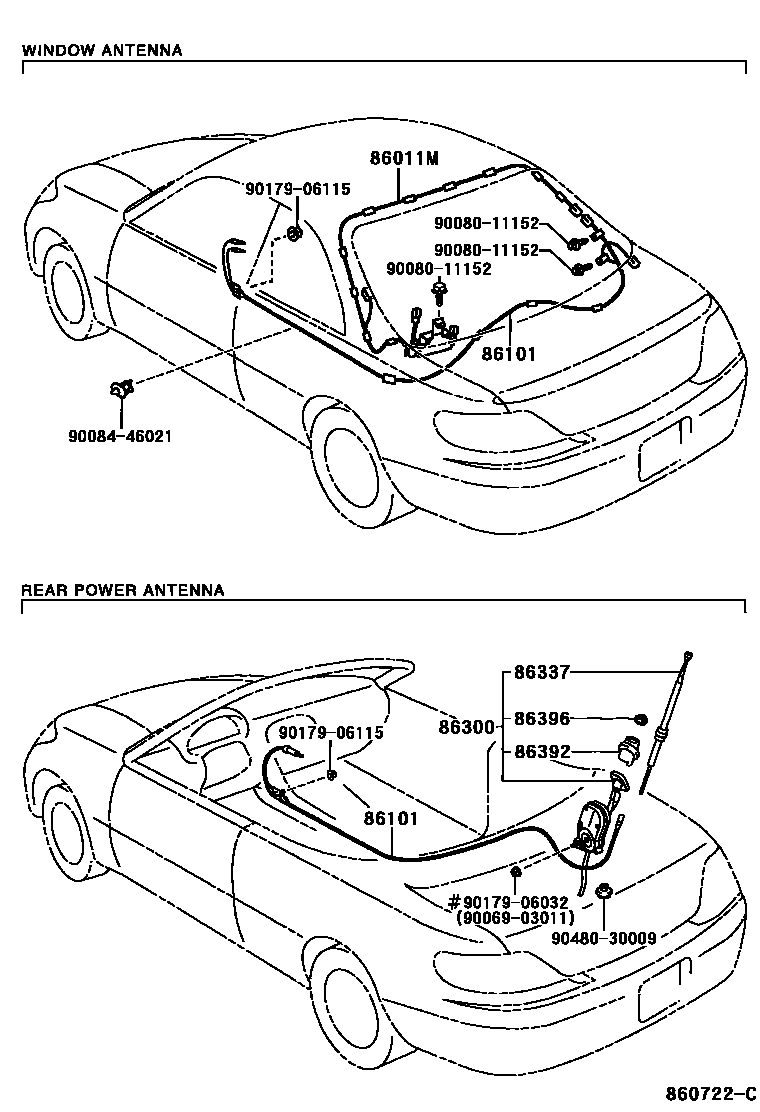

Parts diagram

86011MFILTER, NOISE

main90084-98057i200207-200212

86101CORD SUB-ASSY, ANTENNA

main86101-AA080i199806-199901

main86101-AA081i199901-200107

main86101-AA082i200107-200207

main86101-AA110i199806-199901

W(DIVERSITY ANTENNA)

main86101-AA111i199901-200107

W(DIVERSITY ANTENNA)

main86101-AA112i200107-200207

W(DIVERSITY ANTENNA)

main86101-AA120i200002-200212

86300ANTENNA ASSY, W/HOLDER

main86300-AA040i200002-200102

main86300-AA041i200102-200212

86337ROD & PIPE, SEALED W/CABLE

main86337-AA020i200002-200102

main86337-AA021i200102-200212

86392ORNAMENT, ANTENNA

main86392-AA030i200002-200212

86396NUT, ANTENNA

main86396-06010i200002-200212

9006903011

main90069-03011

9008011152

main90080-11152

9008446021

main90084-46021

9017906032

main90179-06032

9017906115

main90179-06115

9048030009

main90480-30009

12 parts on this diagram · 1 diagram in section

ANTENNA for Toyota SOLARA

This section contains 12 genuine Toyota parts for the ANTENNA system of the Toyota SOLARA. Key components include: FILTER, NOISE, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ROD & PIPE, SEALED W/CABLE, ORNAMENT, ANTENNA.
