Toyota SOLARA — ACCELERATOR LINK

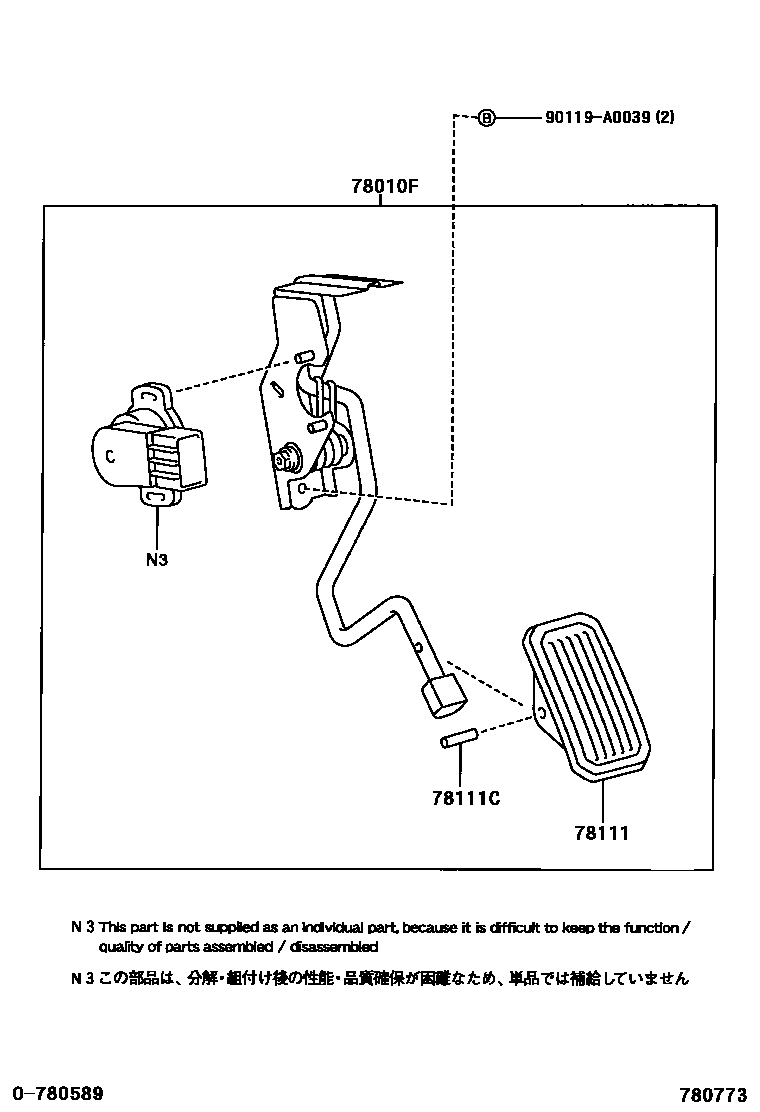

Parts diagram

78010FPEDAL ASSY, ACCELERATOR

main78010-33010i200307-200503

78111PEDAL, ACCELERATOR

main78111-33010i200307-200503

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019i200307-200503

90119A0039

main90119-A0039

4 parts on this diagram · 1 diagram in section
