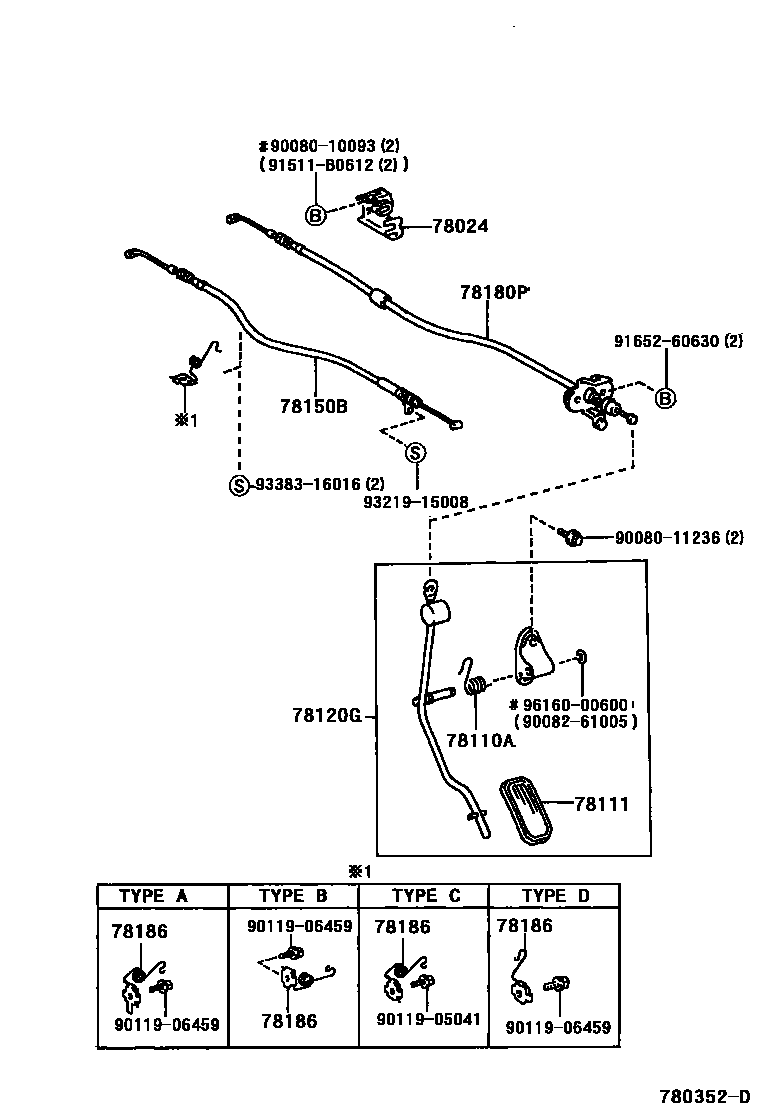

Toyota SOLARA — ACCELERATOR LINK

0001 1 0002 1

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-06030iSXV20199806-200107

(L)

main78024-33030iSXV20199806-200107

(J)

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90080-50168iMCV20,SXV20..MTM199806-200207

main90080-50169iMCV20,SXV20..ATM199806-200212

78111PEDAL, ACCELERATOR

main78111-06010iMCV20,SXV20199806-200207

main78111-33010iACV20200107-200212

78120GROD ASSY, ACCELERATOR PEDAL

main78120-06010iMCV20,SXV20..ATM199806-200212

main78120-06020iMCV20,SXV20..MTM199806-200207

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-06010iMCV20199806-200207

(L)

main78150-06020iSXV20199806-199908

(L)

main78150-06030iSXV20199908-200107

(L)

main78150-33070iSXV20199806-199908

(J)

main78150-33080iMCV20200207-200212

(J)

main78150-33110iSXV20199908-200107

(J)

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-06100iSXV20199806-199908

main78180-06140iMCV20199806-200207

main78180-06150iSXV20199908-200107

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-33050iSXV20199806-199908

TYPE A:REFER TO ILLUSTRATION

main78186-33060iMCV20..CP200207-200212

TYPE B:REFER TO ILLUSTRATION

main78186-33090iSXV20199902-200107

TYPE C:REFER TO ILLUSTRATION

main78186-33110iSXV20199908-200107

TYPE D:REFER TO ILLUSTRATION

main78186-33120iSXV20199908-200107

TYPE A:REFER TO ILLUSTRATION

9008010093

main90080-10093

9008011236

main90080-11236

9008261005

main90082-61005

9011905041

main90119-05041

9011906459

main90119-06459

91511B0612

main91511-B0612

9165260630

main91652-60630

9321915008

main93219-15008

9338316016

main93383-16016

9616000600

main96160-00600

17 parts on this diagram · 2 diagrams in section
