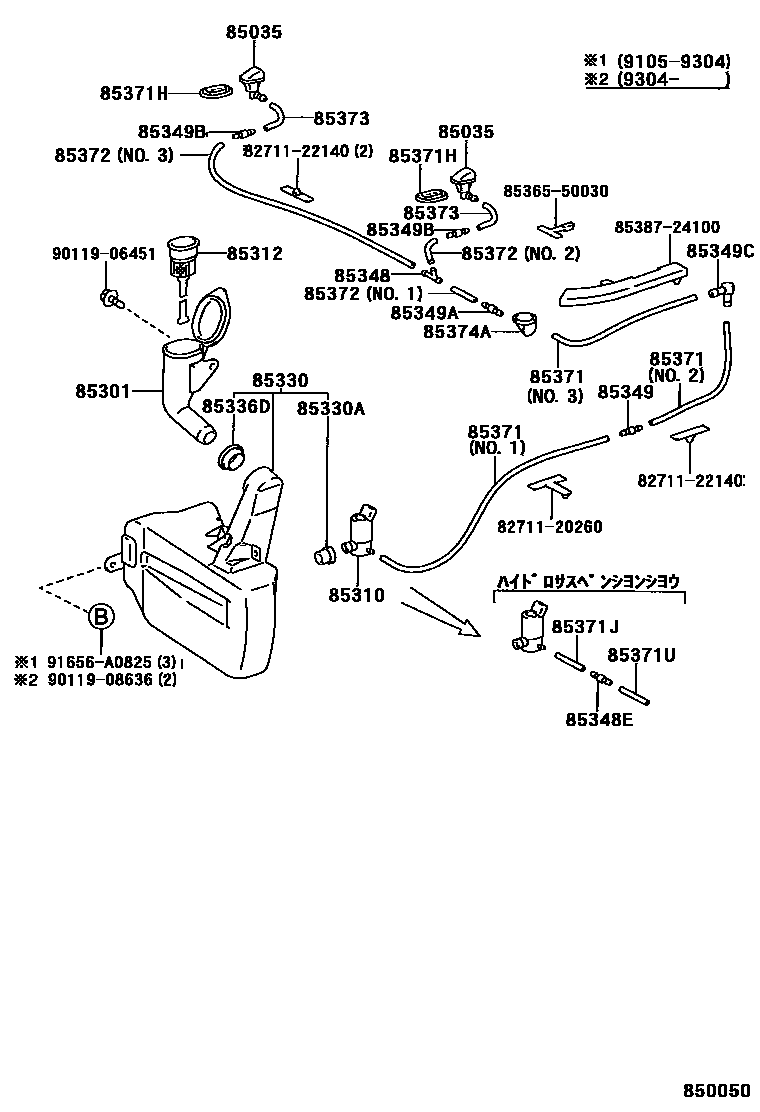

Toyota SOARER — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
SUPER WHITE PEARL M,051
SUPER WHT PEARL MICA,051
WHITE PM.,057
SUPER SILVER 3 M,176
BLUISH SILVER M.,1A0
SILVER ME.,1C0
BLACK,202
RED MICA,3K3 ,4K9
SUPER RED 4,3L2
WINE RED MC.,3L4
BEIGE METALLIC,4K9
BLUISH GREEN M.I.O,6M2
GRAYISH GREEN M.,6M3
MI. GR. GREEN MCGR,6N1
DK. GREEN M.M.,6P2
DARK BLUE MCFP,8J5
BLUE M.M,8L5
BLUISH SILVER M.,1A0
SUPER RED 4,3L2
MI. GR. GREEN MCGR,6Q7
DK.BLUE MCFP,8J5
SUPER SILVER 3 M,176
202 ,6M2 ,8J5
85301INLET SUB-ASSY, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85312PACKING, WINDSHIELD WASHER TANK
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85336DPACKING, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
85349AJOINT, WINDSHIELD WASHER HOSE, NO.2
85349BJOINT, WINDSHIELD WASHER HOSE, NO.3
85349CJOINT, WINDSHIELD WASHER ELBOW, NO.4
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85371HCOVER, WASHER NOZZLE SERVICE HOLE
85371JTUBE, RUBBER
85371UTUBE, RUBBER
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85374APROTECTOR, WASHER HOSE
8271120260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-20260
8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22140
8536550030INSULATOR, WINDSHIELD WASHER JAR
main85365-50030
8538724100CLAMP NO.1 (FOR WINDSEIELD WASHER)
main85387-24100
9011906451
main90119-06451
9011908636
main90119-08636
91656A0825
main91656-A0825
27 parts on this diagram · 4 diagrams in section
WINDSHIELD WASHER for Toyota SOARER
This section contains 48 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SOARER. Key components include: VALVE SUB-ASSY, WASHER, NOZZLE SUB-ASSY, WASHER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, MOTOR & PUMP ASSY, WINDSHIELD WASHER.
