Toyota SOARER — WINDSHIELD WASHER

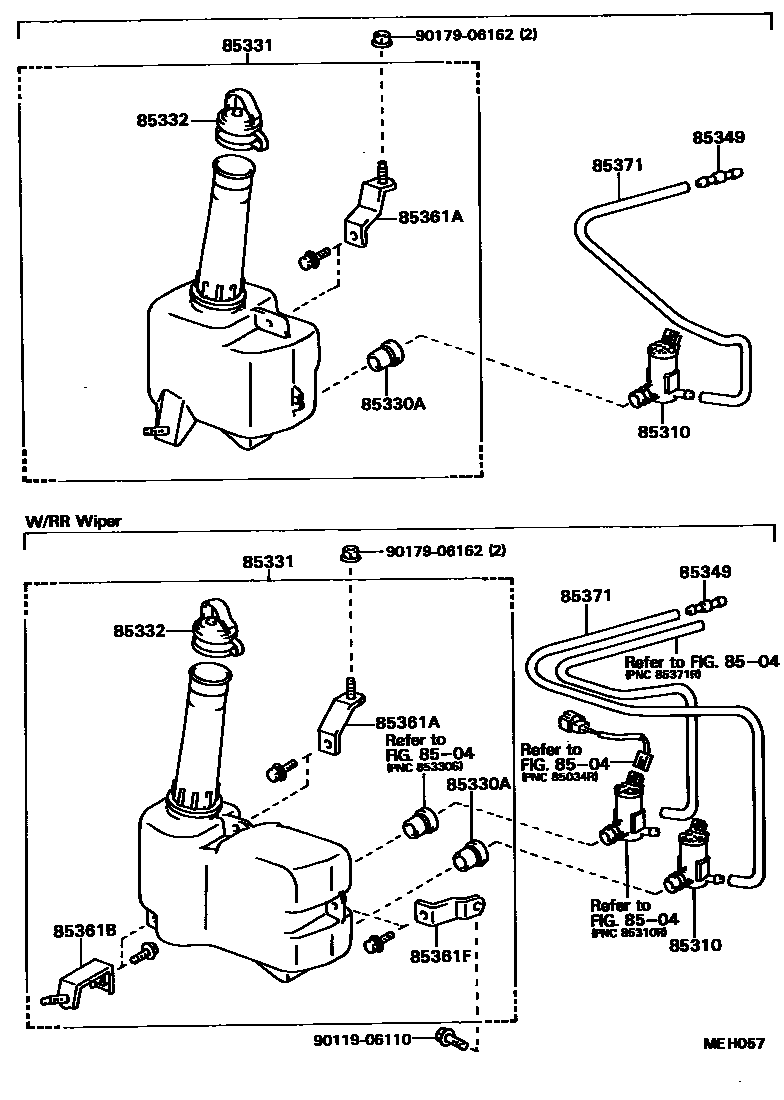

Parts diagram
8504REAR WASHER
→ Go to FIG 85-04
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-22080i198601-198801
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198601-198801
85331JAR SUB-ASSY, WINDSHIELD WASHER
main85331-14680i198601-198801
W/RR WIPER
main85331-24060i198601-198801
85332CAP, WINDSHIELD WASHER JAR
main85332-20441i198601-198801
85349JOINT, WINDSHIELD WASHER HOSE, NO.1
main85349-89118i198601-198801
W/RR WIPER
main85349-89122i198601-198801
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85361-14600i198601-198801
85361BBRACKET, WINDSHIELD WASHER, NO.2
main85362-14600i198601-198801
W/RR WIPER
85361FBRACKET, WINDSHIELD WASHER, NO.3
main85363-14600i198601-198801
W/RR WIPER
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-07001i198601-198602
9011906110
main90119-06110
9017906162
main90179-06162

12 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota SOARER

This section contains 20 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SOARER. Key components include: VALVE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, JAR SUB-ASSY, WINDSHIELD WASHER.
