Toyota SOARER — WINDSHIELD WASHER

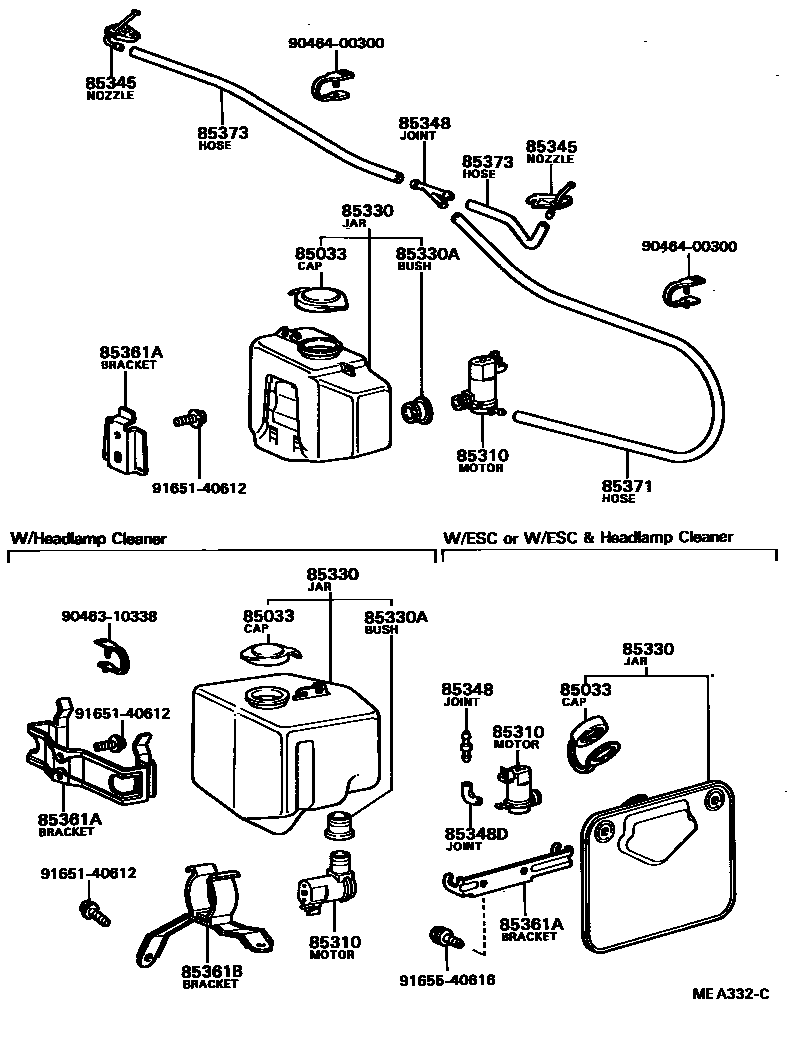

Parts diagram
85033CAP ASSY, WINDSHIELD WASHER
main85332-16010i198102-198512
main85332-20070i198102-198501
W/ESC OR W/ESC & *HC
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-10130i198102-198207
main85310-22080i198207-198512
main85310-30080i198208-198512
W/*HC
85330JAR ASSY, WINDSHIELD WASHER
main85330-12100i198501-198512
main85330-24020i198203-198512
W/*HC
main85330-24040i198102-198501
W/ESC OR W/ESC & *HC
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32089i198102-198512
85345NOZZLE, WINDSHIELD WASHER
main85345-24010i198102-198512
RH
main85346-24010i198102-198512
LH
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85355-14010i198102-198512
main85355-87201×2i198102-198501
W/ESC OR W/ESC & *HC
85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1
main85355-20070i198102-198501
W/ESC OR W/ESC & *HC
85361ABRACKET, WINDSHIELD WASHER, NO.1
main85361-24010i198102-198501
W/ESC OR W/ESC & *HC
main85361-24020i198102-198512
main85361-24030i198203-198512
W/*HC
85361BBRACKET, WINDSHIELD WASHER, NO.2
main85036-24010i198102-198203
W/*HC
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90099-33029i198106-198512
main90099-33299i198102-198106
main90099-33359i198102-198501
W/ESC OR W/ESC & *HC,*H,L=850
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90446-06013i198102-198512
9046310338
main90463-10338
9046400300
main90464-00300
9165140612
main91651-40612
9165540616
main91655-40616

15 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota SOARER

This section contains 15 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SOARER. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, NOZZLE, WINDSHIELD WASHER.
