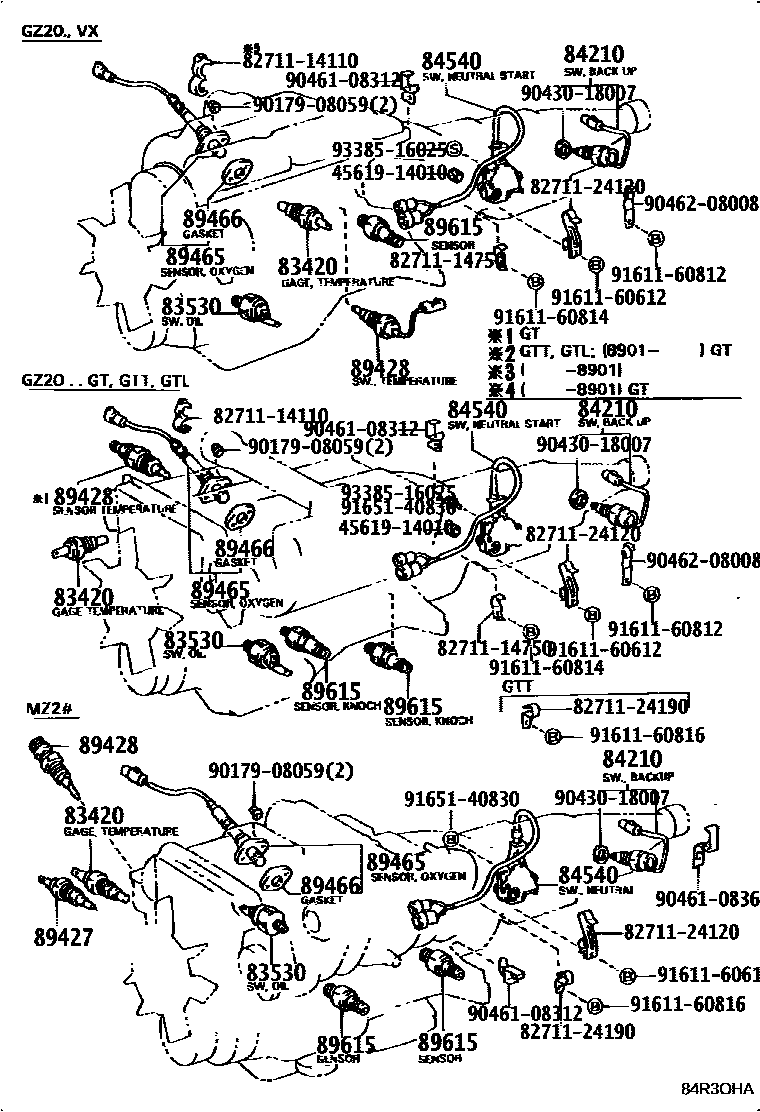

Toyota SOARER — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iGZ20,MZ2#198801-199104

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14020iGZ20,MZ2#198801-198809

sub83530-30080

main83530-30050iGZ20,MZ2#198809-199104

sub83530-30051

84210SWITCH ASSY, BACK-UP LAMP

main84210-30060iGZ20..5F198801-199104

main84210-35030iMZ2#..5F198801-199104

84540SWITCH ASSY, NEUTRAL START

main84540-14130iGZ20..4FC..HTWC198901-199104

sub84540-14131

main84540-30240iGZ20,MZ2#..4FC..(TWC,TWT)198901-199104

sub84540-30241

89427SWITCH, TEMPERATURE DETECT

main88790-24110iMZ2#198801-199104

89428SWITCH, TEMPERATURE DETECT, NO.2

main88790-24090iGZ20..TWC198801-199104

main89428-22050iGZ20..4FC..HTWC198901-199104

main89428-30050iGZ20..4FC..EFI198801-198901

89465SENSOR, OXYGEN

main89465-19075iGZ20..EFI198801-198901

sub89465-19076

main89465-29155iMZ2#198801-198904

main89465-29156iMZ2#198904-199104

main89465-29175iGZ20..HTWC,TWC198801-198904

main89465-29176iGZ20..HTWC,TWC198904-199104

main89465-29255iGZ20..TWT198801-198904

main89465-29256iGZ20..TWT198904-199104

89466GASKET, OXYGEN SENSOR

main89466-20020iGZ20,MZ2#..TWT198810-199104

main89466-30010iGZ20,MZ2#..TWT198801-198810

main89466-30030iGZ20..HTWC,TWC198904-199104

main89466-32010iGZ20..GT,VX198801-198904

89615SENSOR, KNOCK CONTROL

main89615-30020iGZ20..HTWC,TWC198801-199104

4561914010COVER, KNUCKLE STOPPER

main45619-14010

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

8271124190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24190

9017908059

main90179-08059

9043018007

main90430-18007

9046108312

main90461-08312

9046108365

main90461-08365

9046208008

main90462-08008

9161160612

main91611-60612

9161160812

main91611-60812

9161160814

main91611-60814

9161160816

main91611-60816

9165140830

main91651-40830

9338516025

main93385-16025

25 parts on this diagram · 9 diagrams in section
