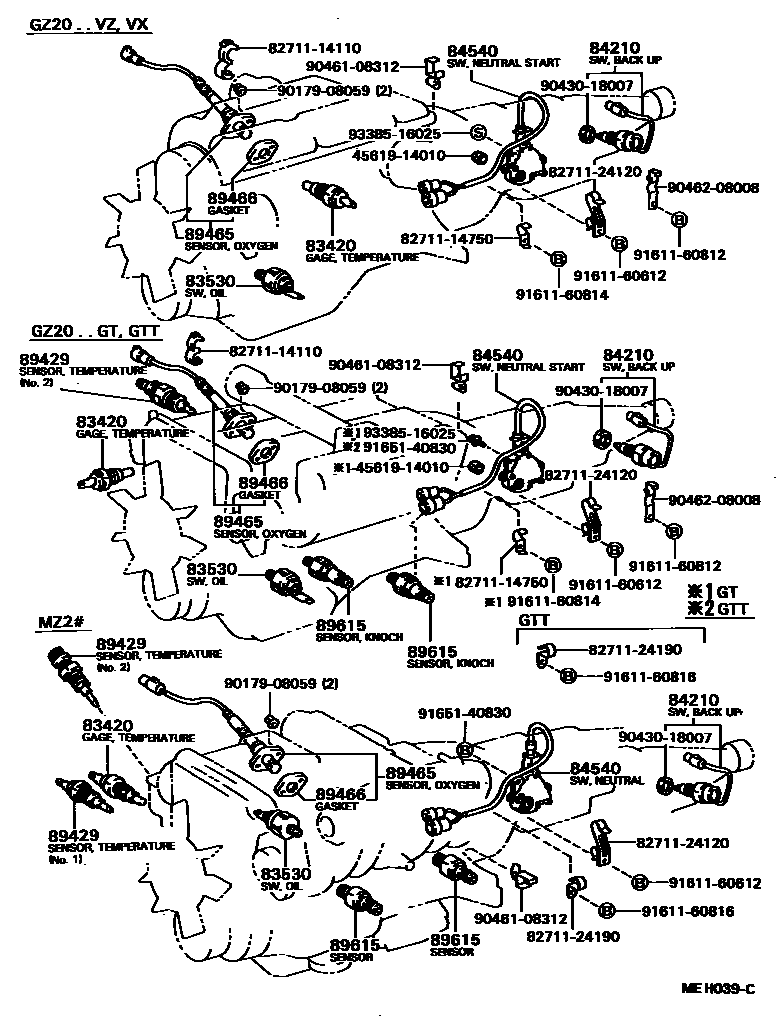

Toyota SOARER — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iGZ20,MZ2#198601-198801

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14020iGZ20,MZ2#198601-198801

sub83530-30080

84210SWITCH ASSY, BACK-UP LAMP

main84210-35030iMZ2#..5F198701-198801

main84210-60021iGZ20..5F198601-198801

84540SWITCH ASSY, NEUTRAL START

main84540-14130iGZ20..4FC..(GT,VX,VZ)198601-198801

sub84540-14131

main84540-30240iGZ20..4FC..GTT198601-198801

sub84540-30241

89429SENSOR, OIL TEMPERATURE

main88790-24080iMZ2#198601-198602

NO.1

main88790-24090iMZ2#198602-198801

NO.2

main88790-24110iMZ2#198602-198801

NO.1

89465SENSOR, OXYGEN

main89465-19075iGZ20..VX,VZ198601-198801

sub89465-19076

main89465-29155iGZ20..GTT198601-198801

sub89465-29156

main89465-29175iGZ20..GT198601-198801

sub89465-29176

89466GASKET, OXYGEN SENSOR

main89466-30010iGZ20..GTT198601-198801

sub89466-20020

main89466-32010iGZ20..GT,VX,VZ198601-198801

sub89466-30030

89615SENSOR, KNOCK CONTROL

main89615-30020×2iGZ20..GTT198601-198801

4561914010COVER, KNUCKLE STOPPER

main45619-14010

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271114750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14750

8271124120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24120

8271124190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24190

9017908059

main90179-08059

9043018007

main90430-18007

9046108312

main90461-08312

9046208008

main90462-08008

9161160612

main91611-60612

9161160812

main91611-60812

9161160814

main91611-60814

9161160816

main91611-60816

9165140830

main91651-40830

9338516025

main93385-16025

23 parts on this diagram · 8 diagrams in section
