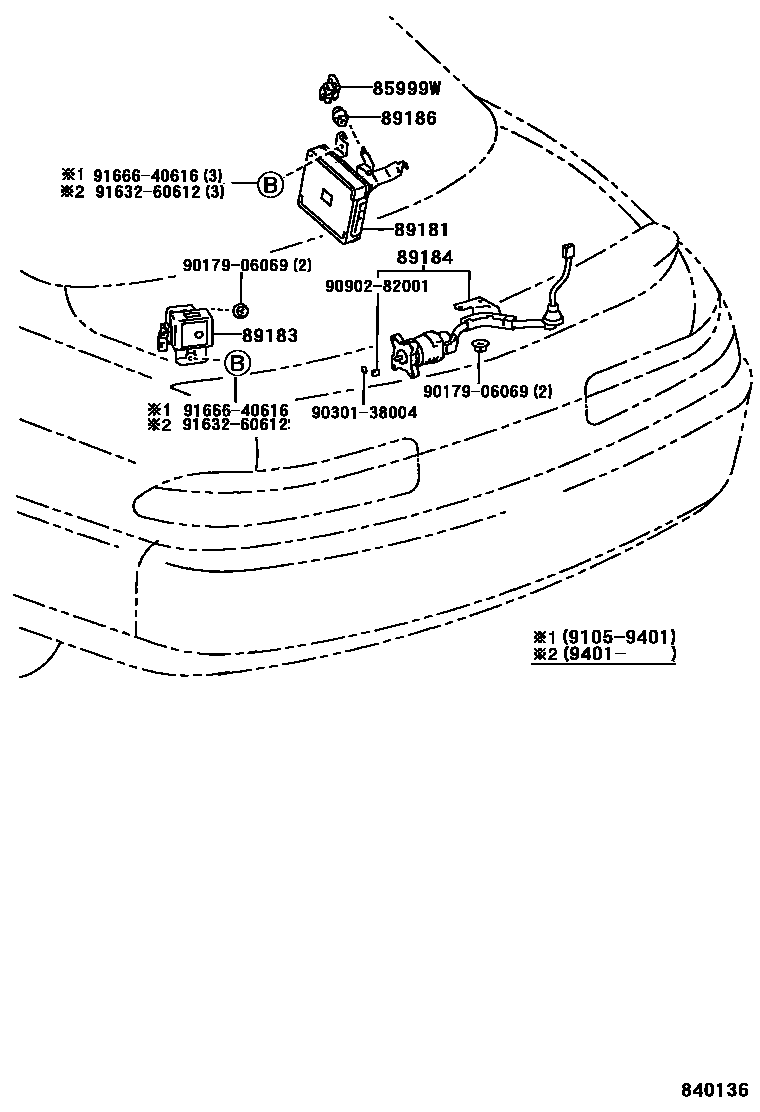

Toyota SOARER — STEERING CONTROL SYSTEM

85999WBRACKET, RELAY

main85999-12050iUZZ32199105-199608

89181COMPUTER, STEERING CONTROL

main89181-24010iUZZ32199105-199206

main89181-24011iUZZ32199206-199401

main89181-24020iUZZ32199401-199608

89183SENSOR, YAWRATE

main89183-24010iUZZ32199105-199608

89184MOTOR, STEERING CONTROL, NO.2

main89184-24010iUZZ32199105-199608

89186RELAY, STEERING CONTROL

main90987-02004iUZZ32199105-199608

9017906069

main90179-06069

9030138004

main90301-38004

9090282001

main90902-82001

9163260612

main91632-60612

9166640616

main91666-40616

10 parts on this diagram · 1 diagram in section
