Toyota SOARER — SPEAKER

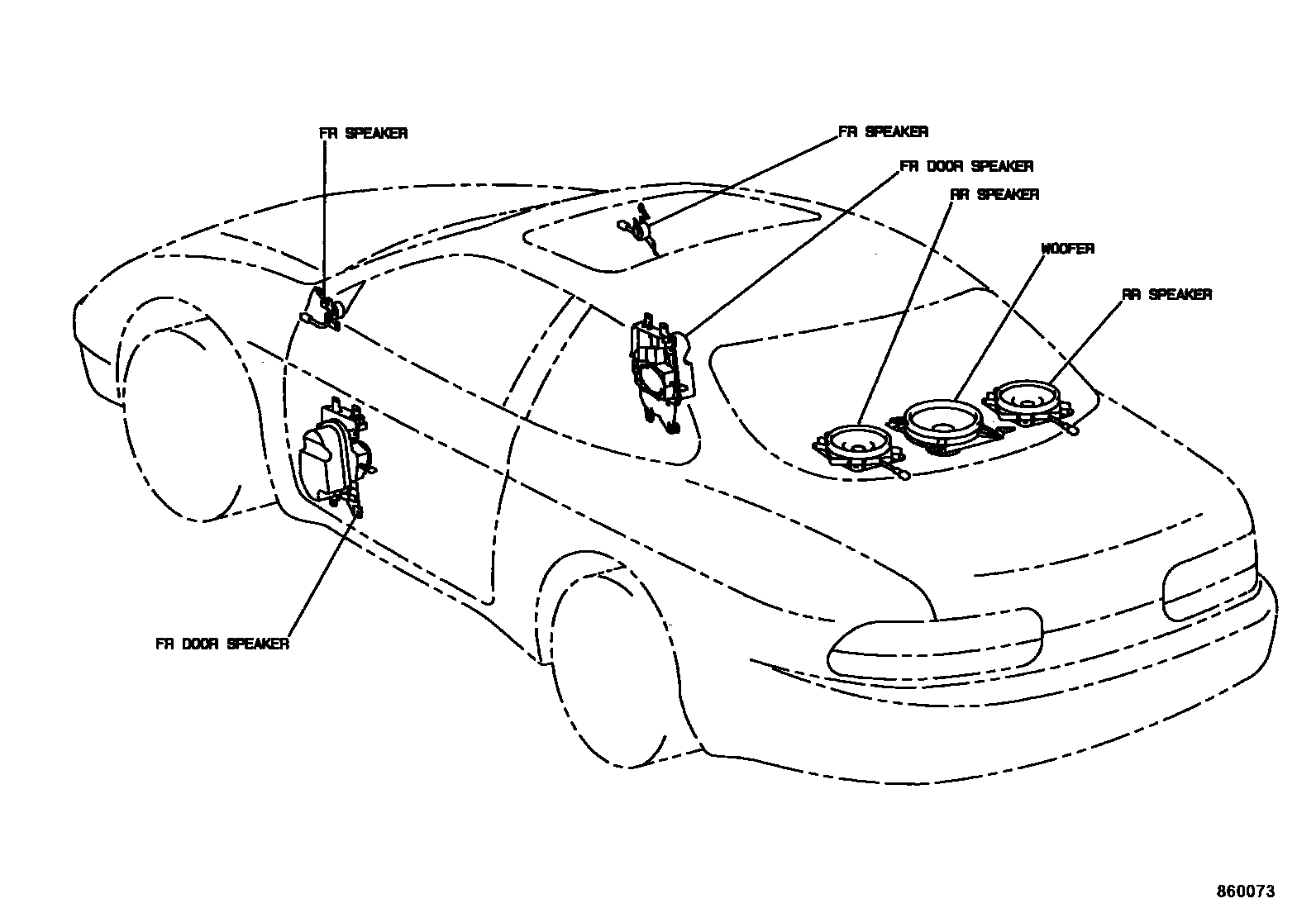

Parts diagram

86150SPEAKER ASSY, W/BOX, NO.1

main86150-24150i199105-199608

main86150-24151i199608

main86150-24160i199105-199608

main86150-24161i199608

main86150-24170i199105

main86150-24180i199105

86160SPEAKER ASSY, FRONT NO.1

main86160-24160i199105

main86160-24170i199105

86160BSPEAKER ASSY, REAR

main86160-24240×2i199105-199608

10W

main86160-24241×2i199608

15W

main86160-24250×2i199105-199401

20W,16CM

main86160-24260×2i199105-199709

20W,15.5CM

86160YSPEAKER ASSY, REAR NO.2

main86160-24290i199105

9016360013

main90163-60013

9018906160

main90189-06160

9161260610

main91612-60610

9165160614

main91651-60614

8 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota SOARER

This section contains 8 genuine Toyota parts for the SPEAKER system of the Toyota SOARER. Key components include: SPEAKER ASSY, W/BOX, NO.1, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, REAR NO.2.
