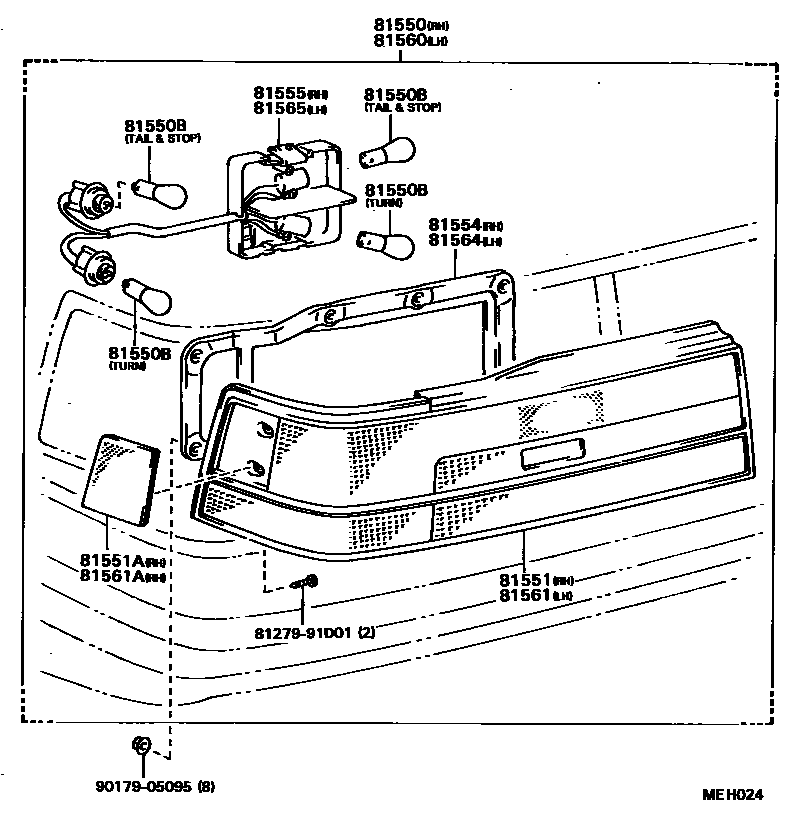

Toyota SOARER — REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-24030i198601-198801

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4i198601-198801

main99132-21210×4i198601-198801

81551LENS, REAR COMBINATION LAMP, RH

main81551-24030i198601-198801

81551ALENS, REAR COMBINATION LAMP, RH

main81552-24030i198601-198801

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-24030i198601-198801

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-24030i198601-198801

81560LAMP ASSY, REAR COMBINATION, LH

main81560-24030i198601-198801

main81560-24040i198601-198801

81561LENS, REAR COMBINATION LAMP, LH

main81561-24030i198601-198801

main81561-24040i198601-198801

81561ALENS, REAR COMBINATION LAMP, LH

main81562-24030i198601-198801

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-24030i198601-198801

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-24030i198601-198801

8127991D01WASHER, SIDE TURN SIGNAL LAMP

main81279-91D01

9017905095

main90179-05095

13 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota SOARER

This section contains 13 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota SOARER. Key components include: LAMP ASSY, REAR COMBINATION, RH, BULB(FOR REAR COMBINATION LAMP), LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, RH.
