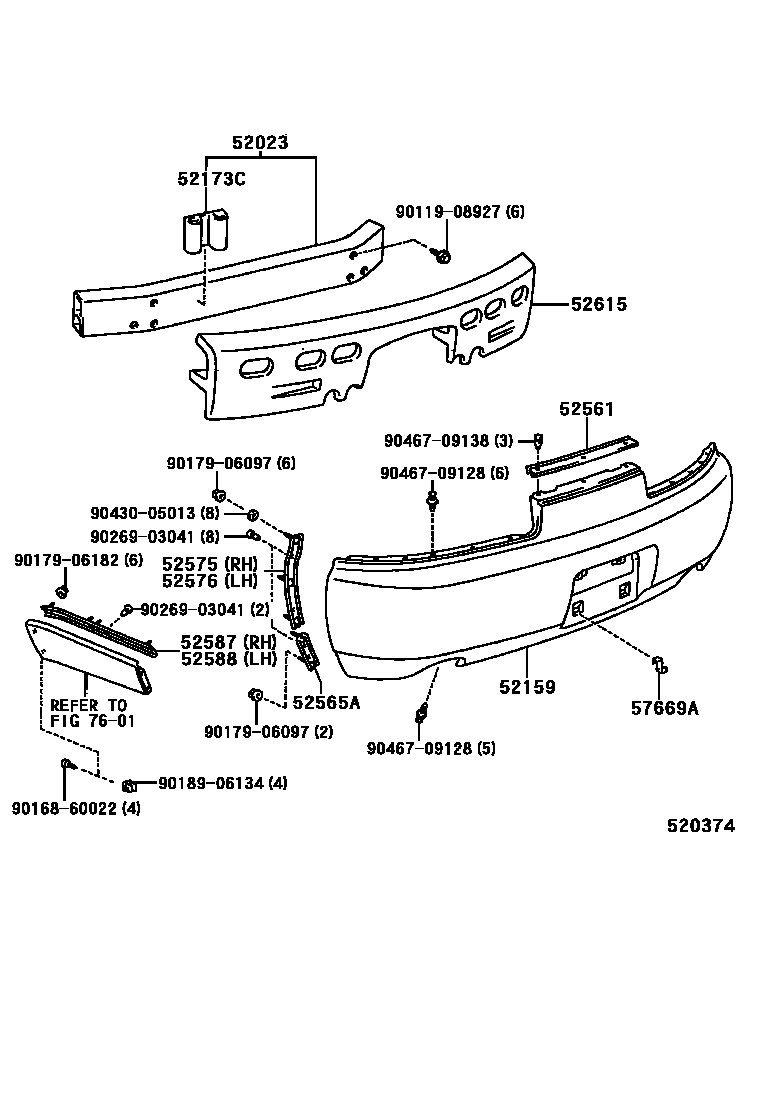

Toyota SOARER — REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
SU.WHITE PM,051
WHITE PM.,057
BLUISH SILVER ME.,1A0
SILVER ME.,1C0
BLACK,202
SUPER RED 4,3L2
WINE RED MC.,3L4
ROSE RED MC.,3M9
RED MC,3N1
DK.GREEN M.M.,6P2
DK. GREEN MC.,6Q7
BLUE M.M.,8L5
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5
BEIGE M,4K9
BLUISH GREEN MIO,6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
BLUISH SILVER ME,1A0
BLACK,202
SUPER RED 4,3L2
WINE RED MC.,3L4
MI.GR.GREEN MCGR,6N1
52173CREINFORCEMENT, REAR BUMPER, NO.3
52561RETAINER, REAR BUMPER, UPPER CENTER
52565ARETAINER, REAR BUMPER, LOWER
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52587RETAINER, REAR BUMPER END, RH
52588RETAINER, REAR BUMPER END, LH
52615ABSORBER, REAR BUMPER ENERGY
57669ABRACKET, REAR LICENSE PLATE SUPPORT
7601MUDGUARD & SPOILER
9011908927
main90119-08927
9016860022
main90168-60022
9017906097
main90179-06097
9017906182
main90179-06182
9018906134
main90189-06134
9026903041
main90269-03041
9043005013
main90430-05013
9046709128
main90467-09128
9046709138
main90467-09138
21 parts on this diagram · 2 diagrams in section
REAR BUMPER & BUMPER STAY for Toyota SOARER
This section contains 28 genuine Toyota parts for the REAR BUMPER & BUMPER STAY system of the Toyota SOARER. Key components include: REINFORCEMENT SUB-ASSY, REAR BUMPER, COVER, REAR BUMPER, PIECE, REAR BUMPER, REINFORCEMENT, REAR BUMPER, NO.3, RETAINER, REAR BUMPER, UPPER CENTER.
