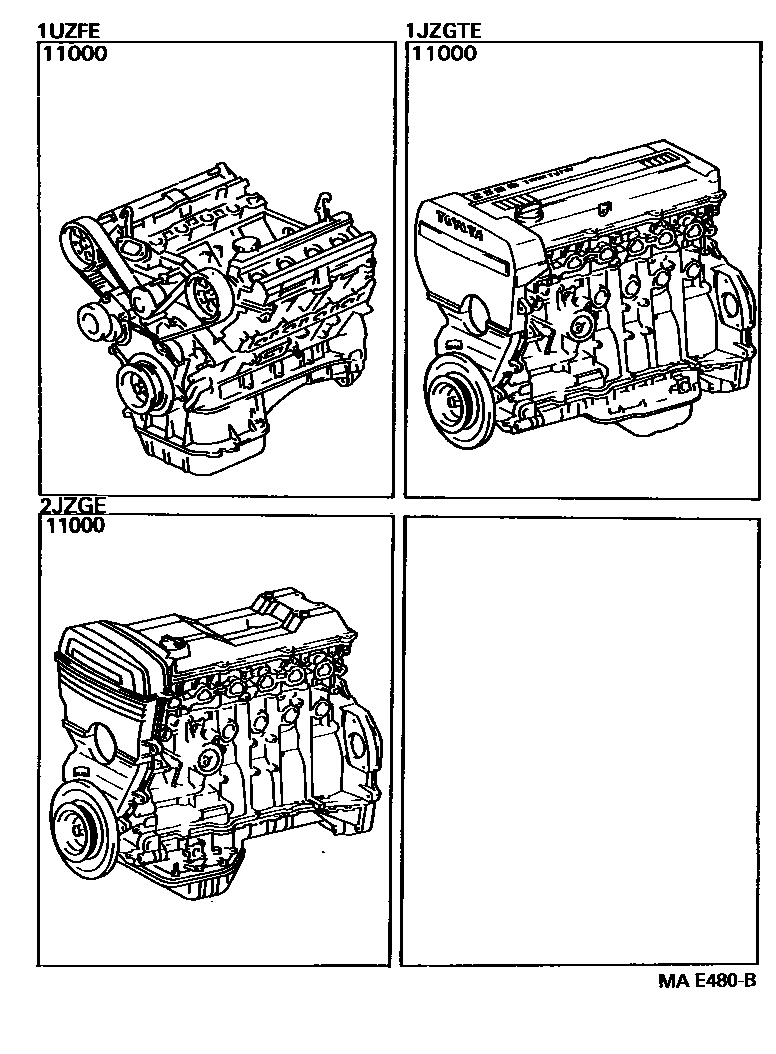

Toyota SOARER — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

main19000-46110i2JZGE..JZZ31199401-199604

main19000-46112i2JZGE..JZZ31199604-199608

main19000-46290i2JZGE..JZZ31199608-199709

sub19000-46291

sub90402-16015

sub90430-16012

main19000-46300i2JZGE..JZZ31199709-199810

main19000-46301i2JZGE..JZZ31199810-200011

main19000-46600i2JZGE..JZZ31200011-200012

main19000-50090i1UZFE..UZZ30,31199105-199407

main19000-50091i1UZFE..UZZ31199407-199408

sub19000-50092

sub90119-10791

sub90919-15444

sub90919-15445

sub90919-15446

sub90919-15447

sub90919-15448

sub90919-15449

sub90919-15450

sub90919-15451

main19000-50093i1UZFE..UZZ31199408-199505

main19000-50094i1UZFE..UZZ31199505-199709

main19000-50100i1UZFE..UZZ32199105-199407

main19000-50101i1UZFE..UZZ32199407-199408

sub19000-50102

sub90919-15444

sub90919-15445

sub90919-15446

sub90919-15447

sub90919-15448

sub90919-15449

sub90919-15450

sub90919-15451

main19000-50103i1UZFE..UZZ32199408-199505

main19000-50104i1UZFE..UZZ32199505-199608

main19000-88402i1JZGTE..JZZ30199105-199210

main19000-88405i1JZGTE..JZZ30199210-199608

main19000-88406i1JZGTE..JZZ30199608-200012

1 parts on this diagram · 1 diagram in section
