Toyota SOARER — PARTIAL ENGINE ASSEMBLY

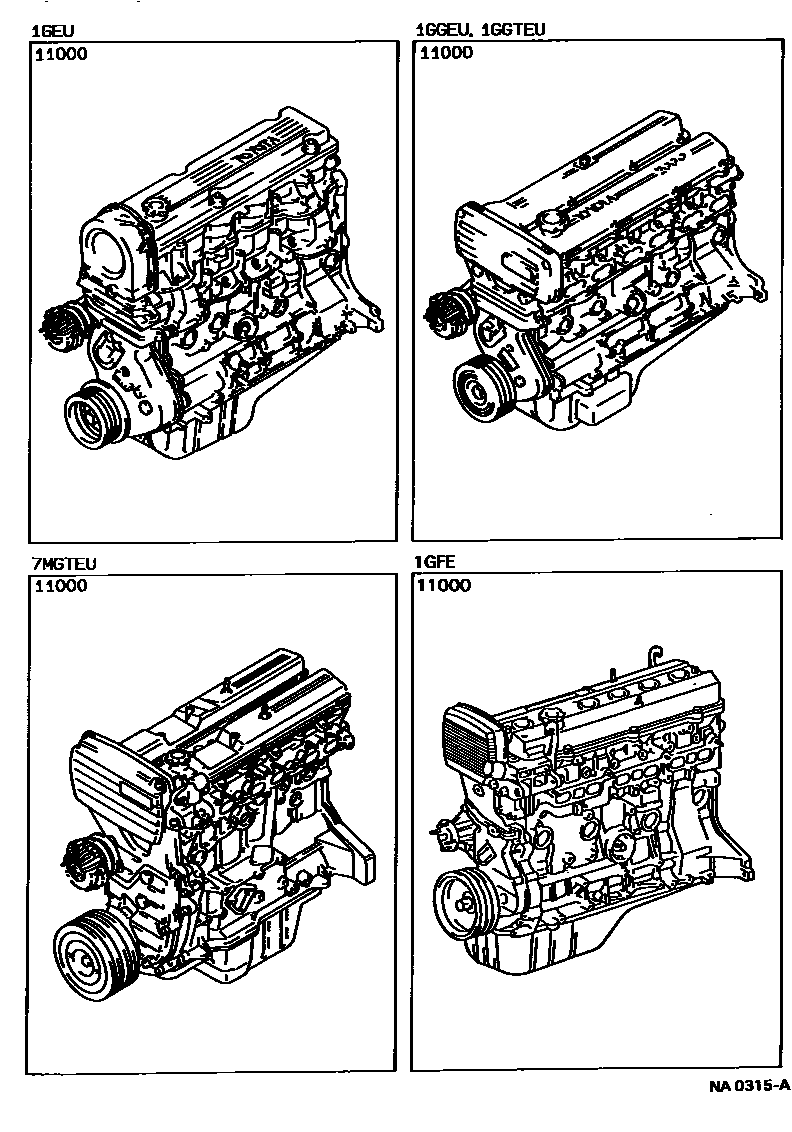

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-42200i198801-198903
main19000-42201i198903-198908
main19000-42202i198908-199104
main19000-70111i198801-198807
main19000-70112i198807-198901
main19000-70140i198801-198805
main19000-70141i198805-198807
main19000-70142i198807-198901
sub19000-88327
main19000-70200i198901-199005
sub17303-70051
main19000-70201i199005-199104
sub19000-70202
main19000-70210i198901-199104
sub19000-88329
main19000-88352i198801-198901
main19000-88354i198901-199104

1 parts on this diagram · 1 diagram in section
