Toyota SOARER — PARTIAL ENGINE ASSEMBLY

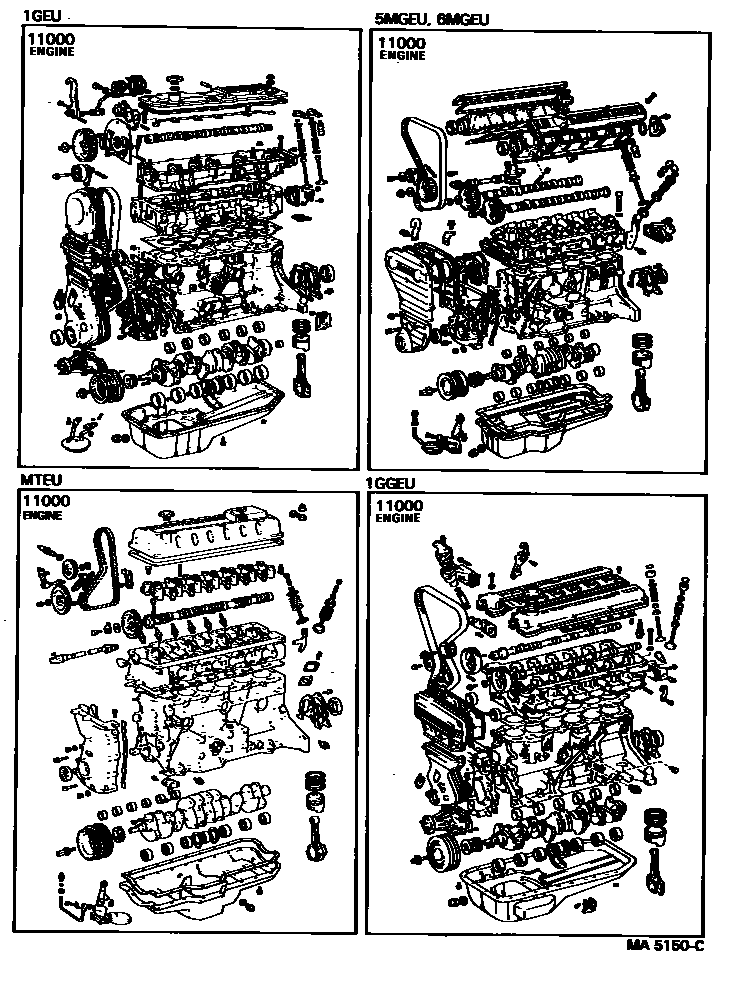

Parts diagram
11000ENGINE ASSY, PARTIAL
main19000-41200i198107-198302
sub19000-41201
main19000-41221i198302-198305
sub35523-30030
sub91111-40812
sub94511-00800
main19000-41222i198305-198308
main19000-41230i198308-198408
sub19000-41231
sub90116-10097
sub90179-10016
main19000-41260i198408-198512
main19000-42080i198501-198505
main19000-42081i198505-198512
sub19000-42082
main19000-43080i198102-198205
main19000-43081i198205-198302
sub19000-43082
sub90116-10097
sub90179-10016
main19000-43150i198302-198308
sub25615-43020
sub25627-43030
sub91611-40816
main19000-43151i198308-198401
sub19000-43152
sub90116-10097
sub90179-10016
main19000-43180i198401-198408
sub19000-43390
sub90116-10097
sub90179-10016
main19000-43181i198408-198501
sub19000-43182
main19000-70013i198302-198501
sub19000-70014
sub32921-14162
sub32921-22133
sub32921-22211
main19000-70020i198102-198302
sub13407-70031
sub90919-01064
main19000-70060i198501-198512
sub19000-70061
main19000-88320i198302-198512

1 parts on this diagram · 1 diagram in section
