Toyota SOARER — MIRROR

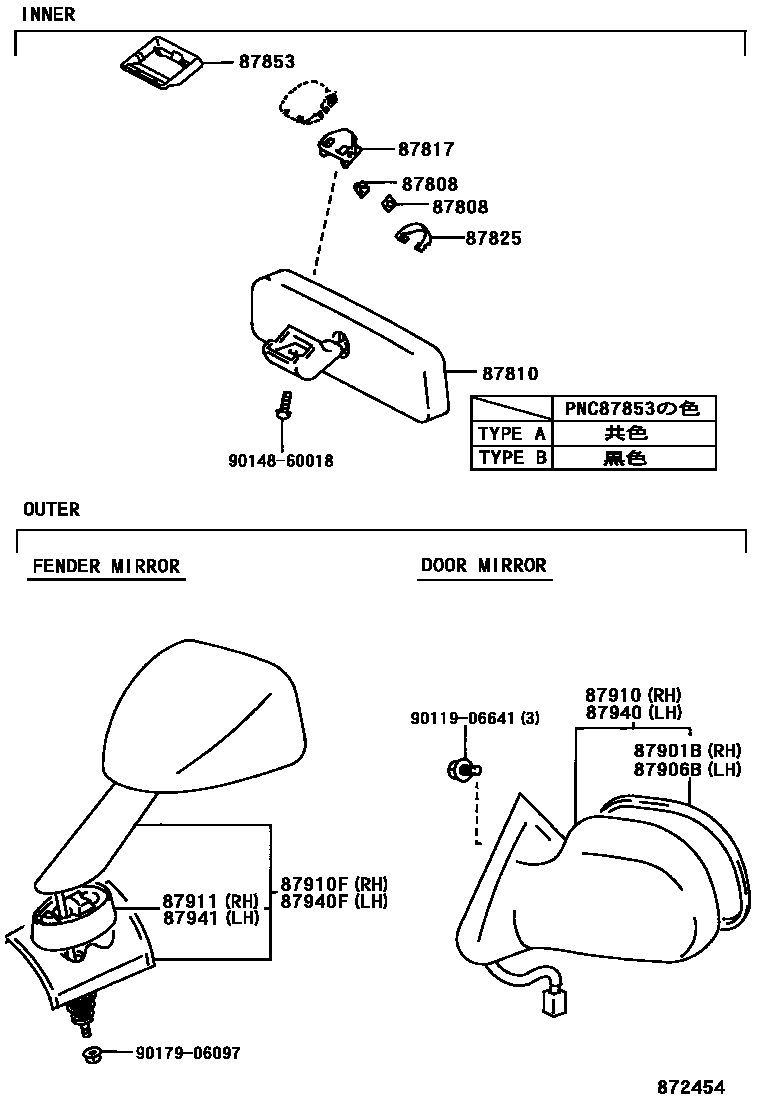

Parts diagram

87808HOLDER SUB-ASSY, INNER MIRROR

main87808-24010×2i199105

87810MIRROR ASSY, INNER REAR VIEW

main87810-24040-03i199105-199401

SHADOW GRAY,TRIM1#

main87810-24040-05i199105-199210

main87810-24040-07i199105-199401

DARK SPRUCE,TRIM6#

main87810-24040-C0i199401-199608

BLACK,TRIM2#

main87810-24040-E0i199608

main87810-24040-G0i199608-199808

DARK SPRUCE,TRIM6#

main87810-24050-03i199105-199209

main87810-24050-05i199105-199209

main87810-24050-07i199105-199209

main87810-24060-B0i199209-199401

main87810-24060-C0i199401-199505

main87810-24060-E0i199209-199210

GREIGE,TRIM0#

main87810-24060-E1i199210-199505

main87810-24060-G0i199209-199505

main87810-24090-C0i199505-199709

main87810-24090-E0i199505-199709

OAK,TRIM0#

main87810-24090-G0i199505-199709

DK.SPRUCE GRAY,TRIM6#

87817SPACER, INNER REAR VIEW MIRROR

main87817-24010i199105

87825SPRING, INNER REAR VIEW MIRROR SETTING

main87825-24010i199105

87853BASE, INNER REAR VIEW MIRROR

main87853-24020i199608

main87853-24020-03i199608-199709

SHADOW GRAY

main87853-24020-05i199608-199709

GRAIGE

main87853-24020-07i199105-199108

DARK SPRUCE

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-24100i199105-199401

main87931-24140i199105-199608

main87931-24160i199709

main87931-24190i199608-199709

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-24100i199105-199401

main87961-24140i199105-199608

main87961-24160i199709

main87961-24190i199608-199709

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-24100-02i199105-199401

RED MICA,3K3

main87910-24100-03i199105-199401

SPR SILVER 3 M,176

main87910-24100-04i199105-199401

DARK BLUE MCFP,8J5

main87910-24100-05i199105-199401

BEIGE METALLIC,4K9

main87910-24100-07i199105-199401

BLUISH GREEN MIO,6M2

main87910-24100-08i199105-199401

SPR WHITE PEARL MICA,051

main87910-24100-17i199105-199401

GRAYISH GREEN M,6M3

main87910-24100-22i199401-199608

BLACK,202

main87910-24100-A0i199401-199608

SU. WHITE PM.,051

main87910-24100-B0i199401-199608

BLUISH SILVER M.,1A0

main87910-24100-C0i199205-199401

BLACK,202

main87910-24100-D0i199401-199608

SUPER RED 4,3L2

main87910-24100-D1i199505-199608

WINE RED MC.,3L4

main87910-24100-G0i199401-199608

BL. GREEN MIO,6M2

main87910-24100-G1i199401-199505

MI. GR. GREEN MCGR,6N1

main87910-24100-J0i199401-199608

DK. BLUE MCFP,8J5

main87910-24110-02i199105-199401

main87910-24110-03i199105-199401

main87910-24110-04i199105-199401

main87910-24110-05i199105-199401

main87910-24110-07i199105-199401

main87910-24110-08i199105-199401

main87910-24110-17i199105-199401

main87910-24110-22i199401-199608

main87910-24110-A0i199401-199608

main87910-24110-B0i199401-199608

main87910-24110-C0i199205-199401

BLACK,202

main87910-24110-D0i199401-199608

main87910-24110-D1i199505-199608

main87910-24110-G0i199401-199608

main87910-24110-G1i199401-199505

main87910-24110-J0i199401-199608

main87910-24140-02i199105-199401

main87910-24140-03i199105-199401

main87910-24140-04i199105-199401

main87910-24140-05i199105-199401

main87910-24140-07i199105-199401

main87910-24140-08i199105-199401

main87910-24140-17i199105-199401

main87910-24140-C0i199205-199401

main87910-24160-A0i199709-199808

SU.WHITE PM,051

main87910-24160-A1i199808

WHITE PM.,057

main87910-24160-B0i199709-199808

BLUISH SILVER ME.,1A0

main87910-24160-B1i199808

SILVER ME.,1C0

main87910-24160-C0i199709

BLACK,202

main87910-24160-D0i199709

SUPER RED 4,3L2

main87910-24160-D2i199709-199908

ROSE RED MC.,3M9

main87910-24160-D3i199908

RED MC.,3N1

main87910-24160-G1i199709

DK. GREEN MC.,6Q7

main87910-24160-J0i199709

BLUE M.M.,8L5

main87910-24180-A0i199608-199709

SU.WHITE PM,051

main87910-24180-B0i199608-199709

BLUISH SILVER ME.,1A0

main87910-24180-C0i199608-199709

BLACK,202

main87910-24180-D0i199608-199709

SUPER RED 4,3L2

main87910-24180-D1i199608-199709

WINE RED MC.,3L4

main87910-24180-G0i199608-199709

DK.GREEN M.M.,6P2

main87910-24180-J0i199608-199709

BLUE M.M.,8L5

main87910-24190-A0i199608-199709

SU.WHITE PM,051

main87910-24190-B0i199608-199709

BLUISH SILVER ME.,1A0

main87910-24190-C0i199608-199709

BLACK,202

main87910-24190-D0i199608-199709

SUPER RED 4,3L2

main87910-24190-D1i199608-199709

WINE RED MC.,3L4

main87910-24190-G0i199608-199709

DK.GREEN M.M.,6P2

main87910-24190-J0i199608-199709

BLUE M.M.,8L5

87910FMIRROR ASSY, FENDER, RH

main87910-24090i199105-199505

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-24030i199105-199505

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-24100-02i199105-199401

RED MICA,3K3

main87940-24100-03i199105-199401

SPR SILVER 3 M,176

main87940-24100-04i199105-199401

DARK BLUE MCFP,8J5

main87940-24100-05i199105-199401

BEIGE METALLIC,4K9

main87940-24100-07i199105-199401

BLUISH GREEN MIO,6M2

main87940-24100-08i199105-199401

SPR WHITE PEARL MICA,051

main87940-24100-17i199105-199401

GRAYISH GREEN M,6M3

main87940-24100-22i199401-199608

BLACK,202

main87940-24100-A0i199401-199608

SU. WHITE PM.,051

main87940-24100-B0i199401-199608

BLUISH SILVER M.,1A0

main87940-24100-C0i199205-199401

BLACK,202

main87940-24100-D0i199401-199608

SUPER RED 4,3L2

main87940-24100-D1i199505-199608

WINE RED MC.,3L4

main87940-24100-G0i199401-199608

BL. GREEN MIO,6M2

main87940-24100-G1i199401-199505

MI. GR. GREEN MCGR,6N1

main87940-24100-J0i199401-199608

DK. BLUE MCFP,8J5

main87940-24110-02i199105-199401

main87940-24110-03i199105-199401

main87940-24110-04i199105-199401

main87940-24110-05i199105-199401

main87940-24110-07i199105-199401

main87940-24110-08i199105-199401

main87940-24110-17i199105-199401

main87940-24110-22i199401-199608

main87940-24110-A0i199401-199608

main87940-24110-B0i199401-199608

main87940-24110-C0i199205-199401

BLACK,202

main87940-24110-D0i199401-199608

main87940-24110-D1i199505-199608

main87940-24110-G0i199401-199608

main87940-24110-G1i199401-199505

main87940-24110-J0i199401-199608

main87940-24140-02i199105-199401

main87940-24140-03i199105-199401

main87940-24140-04i199105-199401

main87940-24140-05i199105-199401

main87940-24140-07i199105-199401

main87940-24140-08i199105-199401

main87940-24140-17i199105-199401

main87940-24140-C0i199205-199401

main87940-24160-A0i199709-199808

SU.WHITE PM,051

main87940-24160-A1i199808

WHITE PM.,057

main87940-24160-B0i199709-199808

BLUISH SILVER ME.,1A0

main87940-24160-B1i199808

SILVER ME.,1C0

main87940-24160-C0i199709

BLACK,202

main87940-24160-D0i199709

SUPER RED 4,3L2

main87940-24160-D2i199709-199908

ROSE RED MC.,3M9

main87940-24160-D3i199908

RED MC.,3N1

main87940-24160-G1i199709

DK. GREEN MC.,6Q7

main87940-24160-J0i199709

BLUE M.M.,8L5

main87940-24180-A0i199608-199709

SU.WHITE PM,051

main87940-24180-B0i199608-199709

BLUISH SILVER ME.,1A0

main87940-24180-C0i199608-199709

BLACK,202

main87940-24180-D0i199608-199709

SUPER RED 4,3L2

main87940-24180-D1i199608-199709

WINE RED MC.,3L4

main87940-24180-G0i199608-199709

DK.GREEN M.M.,6P2

main87940-24180-J0i199608-199709

BLUE M.M.,8L5

main87940-24190-A0i199608-199709

SU.WHITE PM,051

main87940-24190-B0i199608-199709

BLUISH SILVER ME.,1A0

main87940-24190-C0i199608-199709

BLACK,202

main87940-24190-D0i199608-199709

SUPER RED 4,3L2

main87940-24190-D1i199608-199709

WINE RED MC.,3L4

main87940-24190-G0i199608-199709

DK.GREEN M.M.,6P2

main87940-24190-J0i199608-199709

BLUE M.M.,8L5

87940FMIRROR ASSY, FENDER, LH

main87940-24090i199105-199505

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-24030i199105-199505

9011906641

main90119-06641

9014860018

main90148-60018

9017906097

main90179-06097

16 parts on this diagram · 1 diagram in section

MIRROR for Toyota SOARER

This section contains 16 genuine Toyota parts for the MIRROR system of the Toyota SOARER. Key components include: HOLDER SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, SPACER, INNER REAR VIEW MIRROR, SPRING, INNER REAR VIEW MIRROR SETTING, BASE, INNER REAR VIEW MIRROR.
