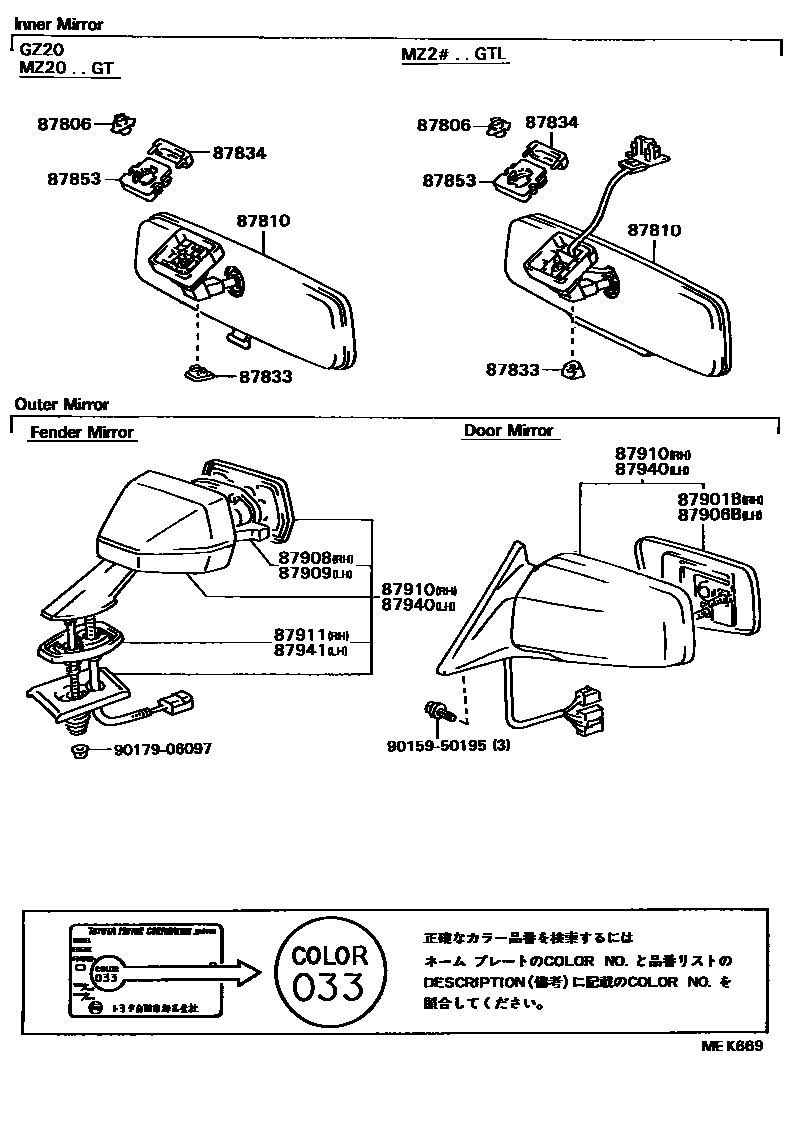

Toyota SOARER — MIRROR
87806SPRING SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,TRIM2#
BLUE,TRIM8#
GRAYGE,TRIM4#
BLUE,TRIM8#
GRAYGE,TRIM4#
87833CAP, INNER MIRROR SERVICE HOLE
BLACK,TRIM2#
BLUE,TRIM8#
GRAYGE,TRIM4#
BLUE,TRIM8#
GRAYGE,TRIM4#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87853BASE, INNER REAR VIEW MIRROR
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87911GASKET, OUTER REAR VIEW MIRROR, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87941GASKET, OUTER REAR VIEW MIRROR, LH
9015950195
main90159-50195
9017906097
main90179-06097
15 parts on this diagram · 1 diagram in section
MIRROR for Toyota SOARER
This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota SOARER. Key components include: SPRING SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, CAP, INNER MIRROR SERVICE HOLE, COVER, INNER REAR VIEW MIRROR STAY HOLDER, BASE, INNER REAR VIEW MIRROR.
