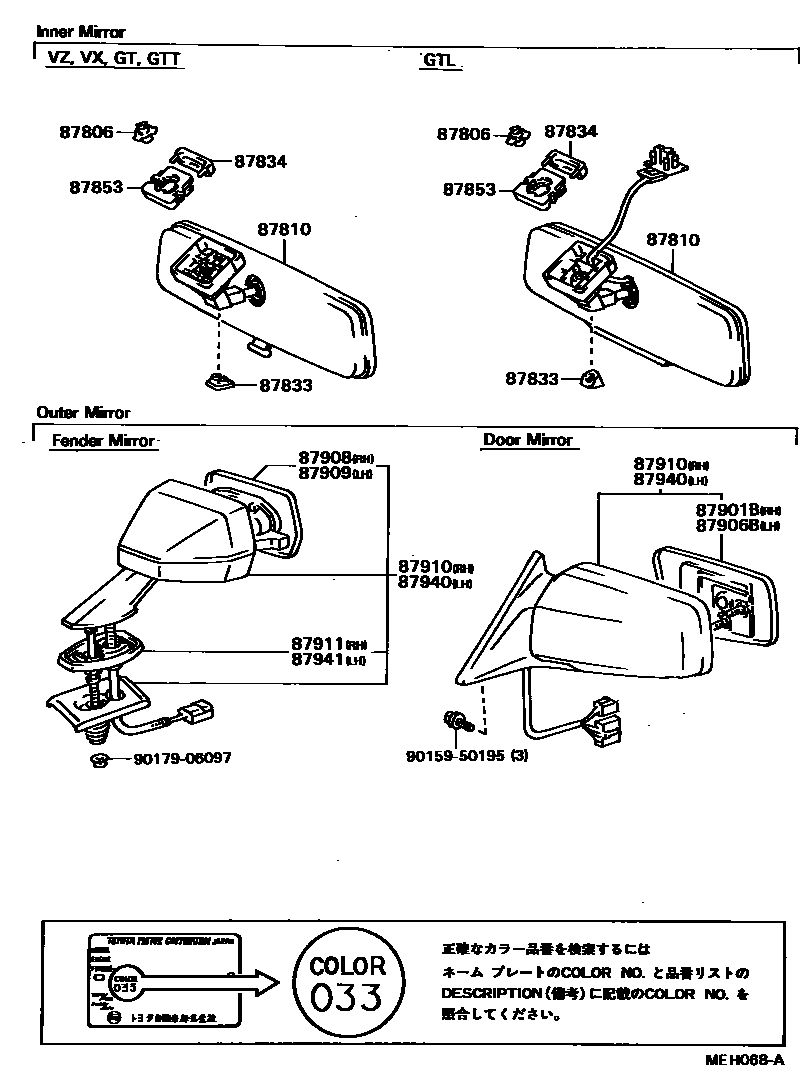

Toyota SOARER — MIRROR
87806SPRING SUB-ASSY, INNER MIRROR
87810MIRROR ASSY, INNER REAR VIEW
BLACK,TRIM2#
BEIGE,TRIM4#
BROWN,TRIM4#
BEIGE,TRIM4#
87833CAP, INNER MIRROR SERVICE HOLE
BLACK,TRIM2#
BEIGE,TRIM4#
BROWN,TRIM4#
BEIGE,TRIM4#
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87853BASE, INNER REAR VIEW MIRROR
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
DOOR
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
DOOR
87908ACTUATOR ASSY, OUTER MIRROR, RH
FENDER
87909ACTUATOR ASSY, OUTER MIRROR, LH
FENDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
FENDER;FENDER,GRAY,GRAY,166 ,26A ,2VO ,3H1
FENDER,SUPER WHITE,040
FENDER,PEARL MICA,25A
DOOR,BLACK,26A ,3H1
DOOR,SILVER-M,166
DOOR,BEIGE-M,2V0
DOOR,SUPER WHITE,040
DOOR,PEARL MICA,25A
87911GASKET, OUTER REAR VIEW MIRROR, RH
FENDER
87940MIRROR ASSY, OUTER REAR VIEW, LH
FENDER,GRAY,166 ,26A ,2V0 ,3H1
FENDER,SUPER WHITE,040
FENDER,PEARL MICA,25A
DOOR,BLACK,26A ,3H1
DOOR,SILVER-M,166
DOOR,BEIGE-M,2V0
DOOR,SUPER WHITE,040
DOOR,PEARL MICA,25A
87941GASKET, OUTER REAR VIEW MIRROR, LH
FENDER
9015950195
main90159-50195
9017906097
main90179-06097
15 parts on this diagram · 1 diagram in section
MIRROR for Toyota SOARER
This section contains 15 genuine Toyota parts for the MIRROR system of the Toyota SOARER. Key components include: SPRING SUB-ASSY, INNER MIRROR, MIRROR ASSY, INNER REAR VIEW, CAP, INNER MIRROR SERVICE HOLE, COVER, INNER REAR VIEW MIRROR STAY HOLDER, BASE, INNER REAR VIEW MIRROR.
