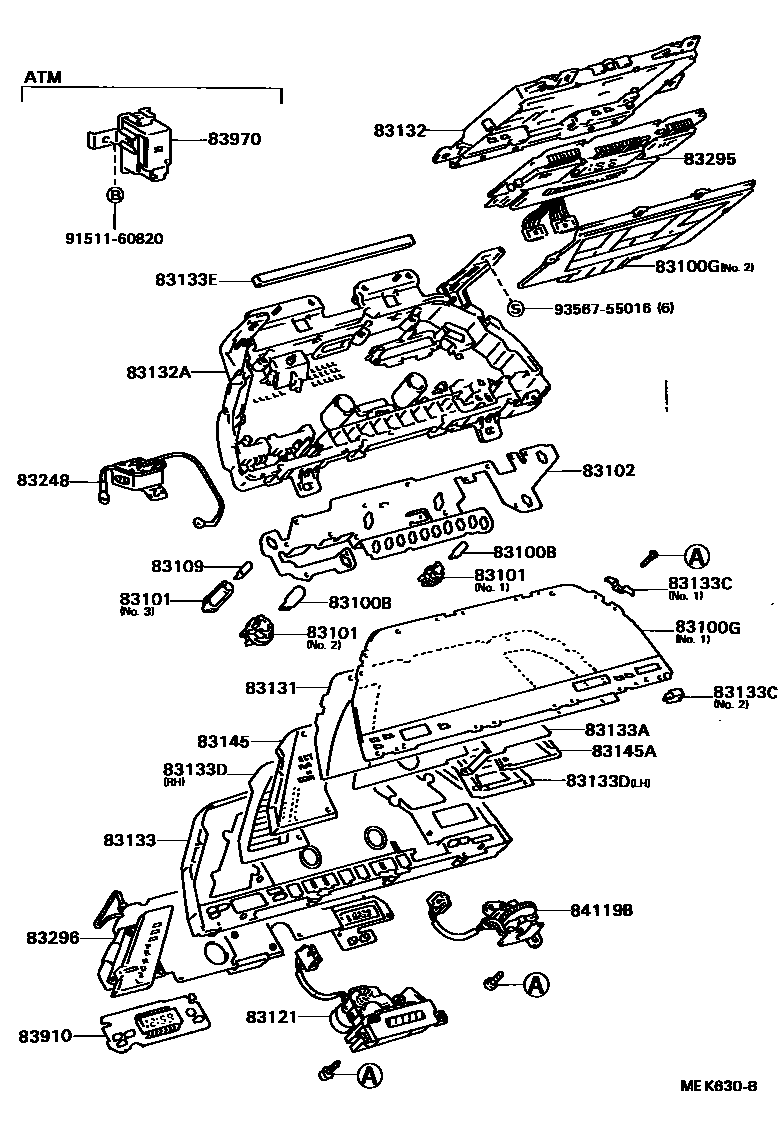

Toyota SOARER — METER
83100BBULB, COMBINATION METER, NO.1
83100GGLASS, COMBINATION METER
NO.1
NO.1
83101SOCKET SUB-ASSY, COMBINATION METER BULB
83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83109BULB, COMBINATION METER, NO.2
83121COUNTER, TOTAL
83131DIAL, METER, NO.1
83132CASE, COMBINATION METER
83132ACASE, METER
83133PLATE, COMBINATION METER, NO.1
83133APLATE, COMBINATION METER, NO.2
83133CPLATE, COMBINATION METER,NO.4
83133DPLATE, DECORATION
83133EPLATE, URETHANE
83145LENS, METER, NO.1
83145ALENS, METER, NO.2
83248CHIME, SPEED WARNING
83295PANEL, METER DISPLAY
83296PANEL, METER COMPUTER
83910CLOCK ASSY
83970BUZZER ASSY, REVERSE WARNING
84119BRHEOSTAT, LIGHT CONTROL
9151160820
main91511-60820
9356755016
main93567-55016
24 parts on this diagram · 3 diagrams in section
METER for Toyota SOARER
This section contains 30 genuine Toyota parts for the METER system of the Toyota SOARER. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, BULB, COMBINATION METER, NO.2.
