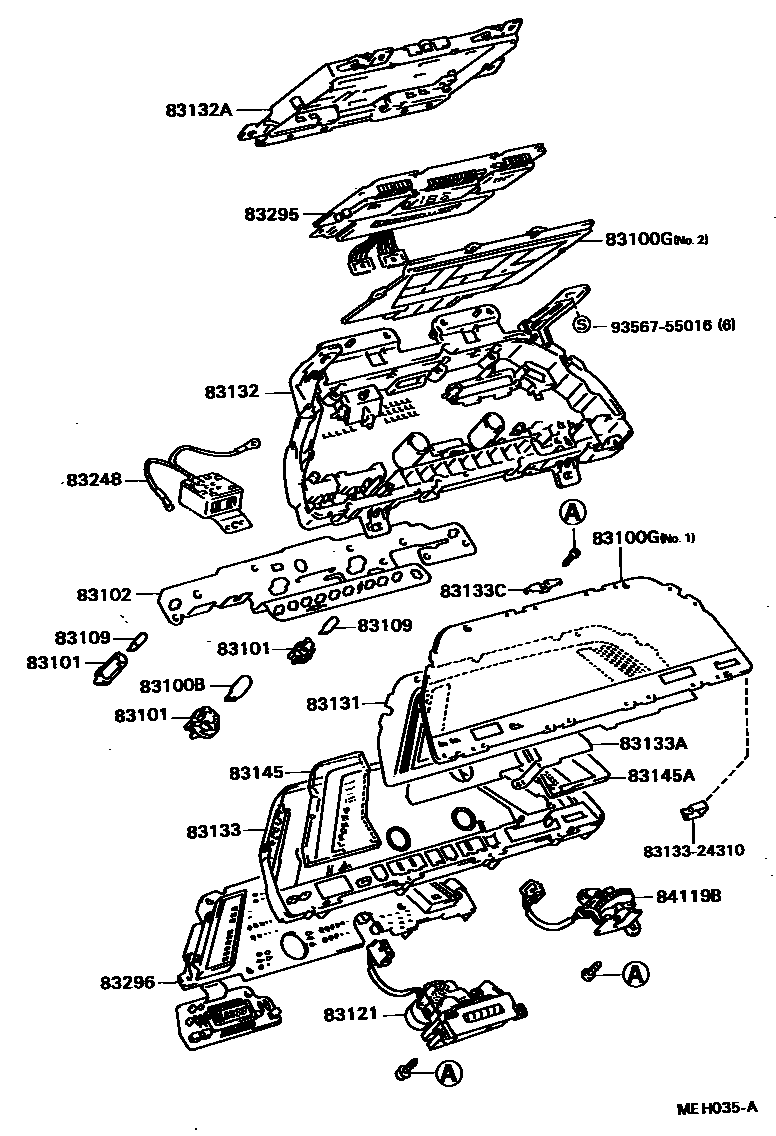

Toyota SOARER — METER

83100BBULB, COMBINATION METER, NO.1

main90981-11018×9i198601-198801

main99132-12034×2i198601-198801

83100GGLASS, COMBINATION METER

main83138-24030i198601-198701

NO.1

main83138-24050i198601-198701

NO.1,W/ESC

main83138-24070i198601-198801

NO.2

main83138-24090i198701-198801

NO.1

main83138-24110i198701-198801

NO.1

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×2i198601-198801

BULB=12V 3.4W

main83101-14040×10i198601-198801

BULB=12V 1.4W,SHORT

main83101-32010×2i198601-198801

BULB=12V 1.4W,LONG

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-24210i198601-198701

main83247-24230i198701-198801

83109BULB, COMBINATION METER, NO.2

main83109-24040×3i198601-198801

83121COUNTER, TOTAL

main83121-24070i198601-198801

83131DIAL, METER, NO.1

main83131-24330i198601-198701

W/ESC

main83131-24350i198601-198701

main83131-24370i198601-198701

main83131-24390i198601-198701

main83131-24410i198701-198801

main83131-24430i198701-198801

main83131-24450i198701-198801

main83131-24470i198701-198801

83132CASE, COMBINATION METER

main83132-24110i198601-198801

83132ACASE, METER

main83132-24130i198601-198801

83133PLATE, COMBINATION METER, NO.1

main83133-24210i198601-198701

main83133-24230i198701-198801

83133APLATE, COMBINATION METER, NO.2

main83133-24250i198601-198801

83133CPLATE, COMBINATION METER,NO.4

main83133-24290×8i198601-198801

83145LENS, METER, NO.1

main83145-24130i198601-198701

main83145-24150i198601-198701

main83145-24170i198601-198701

main83145-24270i198701-198801

main83145-24290i198701-198801

main83145-24310i198701-198801

83145ALENS, METER, NO.2

main83145-24190i198601-198701

main83145-24210i198601-198701

main83145-24230i198601-198701

main83145-24250i198601-198701

main83145-24330i198701-198801

main83145-24350i198701-198801

main83145-24370i198701-198801

main83145-24390i198701-198801

W/TEMS

83248CHIME, SPEED WARNING

main86640-24010i198601-198801

83295PANEL, METER DISPLAY

main83295-24010i198601-198801

main83295-24020i198601-198701

main83295-24021i198701-198801

main83295-24030i198601-198801

main83295-24040i198601-198801

83296PANEL, METER COMPUTER

main83296-24010i198601-198801

main83296-24020i198601-198801

main83296-24030i198601-198801

main83296-24040i198601-198801

main83296-24050i198601-198801

main83296-24060i198601-198801

main83296-24070i198701-198801

main83296-24080i198601-198801

main83296-24090i198701-198801

W/TEMS

main83296-24100i198701-198801

W/TEMS

84119BRHEOSTAT, LIGHT CONTROL

main84119-24050i198601-198801

8313324310PLATE, COMBINATION METER, NO.1

main83133-24310

9356755016

main93567-55016

20 parts on this diagram · 3 diagrams in section

METER for Toyota SOARER

This section contains 27 genuine Toyota parts for the METER system of the Toyota SOARER. Key components include: BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1, BULB, COMBINATION METER, NO.2.
