Toyota SOARER — METER

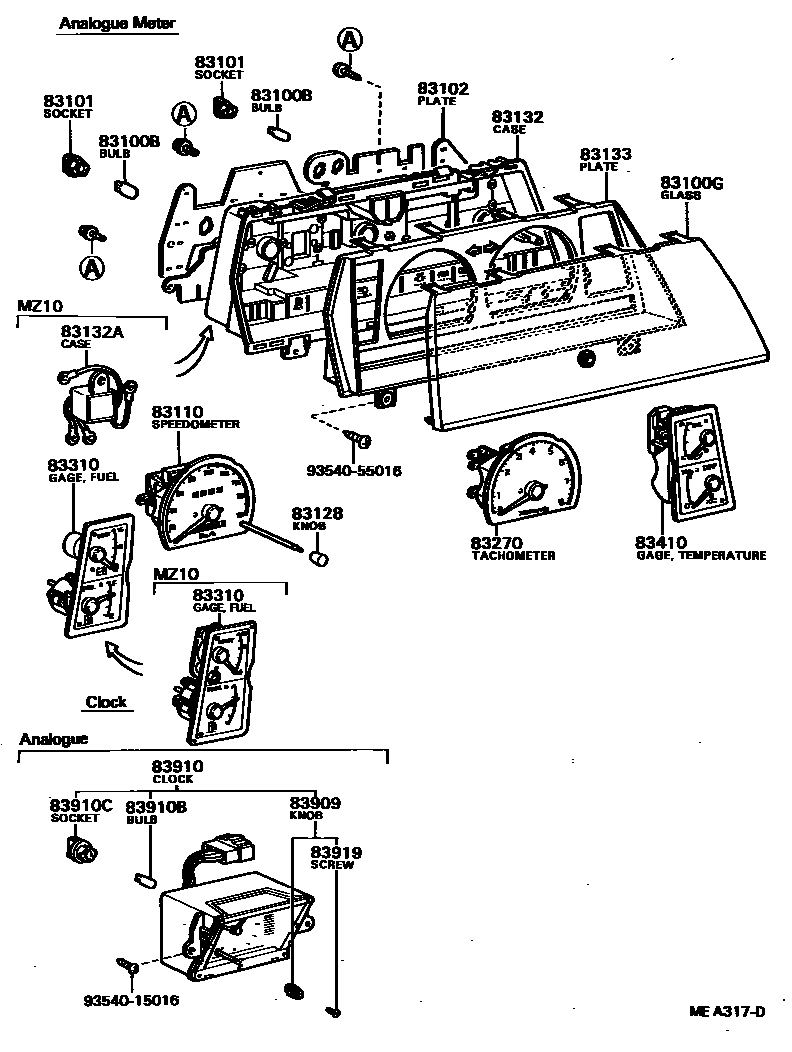

Parts diagram

83100BBULB, COMBINATION METER, NO.1

main90981-11018×11i198102-198512

main99132-12034×4i198102-198203

83100GGLASS, COMBINATION METER

main83133-24130i198302-198512

main83133-24190i198501-198512

W/MULTI DISPLAY

main83138-24010i198102-198203

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-12020i198501-198512

12V 3.4W,LONG

main83101-14030×4i198102-198512

12V 3.4W,SHORT

main83101-14040×13i198102-198512

12V 1.4W,SHORT

main83101-32010×2i198302-198512

12V 1.4W,LONG

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-24010i198102-198203

main83247-24050i198203-198302

main83247-24110i198107-198203

main83247-24130i198302-198401

main83247-24150i198401-198501

main83247-24170i198501-198512

main83247-24190i198501-198512

W/MULTI DISPLAY

83110SPEEDOMETER ASSY

main83110-24010i198102-198203

main83110-24030i198107-198203

main83110-24040i198102-198203

main83110-24041i198203-198302

83128KNOB, TRIP COUNTER

main83128-10260i198102-198203

main83128-24010i198203-198302

83132CASE, COMBINATION METER

main83132-24010i198102-198203

main83132-24030i198102-198203

main83132-24050i198302-198512

main83132-24090i198501-198512

W/MULTI DISPLAY

83132ACASE, METER

main83132-24070i198107-198203

83133PLATE, COMBINATION METER, NO.1

main83133-24010i198102-198203

main83133-24030i198203-198302

main83133-24040i198501-198512

main83133-24050i198203-198302

main83133-24070i198203-198302

main83133-24090i198203-198302

main83133-24110i198302-198401

main83133-24150i198401-198501

main83133-24170i198501-198512

W/MULTI DISPLAY

83270TACHOMETER ASSY, ENGINE

main83242-24010i198102-198203

main83270-24010i198102-198203

main83270-24020i198203-198302

main83270-24030i198107-198203

main83270-24040i198203-198302

83310GAGE ASSY, FUEL RECEIVER

main83243-24010i198102-198203

main83243-24030i198107-198203

main83310-24010i198102-198203

main83310-24011i198204-198302

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-24010i198102-198203

main83410-24010i198102-198203

main83410-24011i198203-198302

83909KNOB, CLOCK

main83909-14012i198102-198203

main83909-14200i198102-198203

83910CLOCK ASSY

main83910-24010i198102-198203

ANALOGUE

main83910-24020i198102-198203

DIGITAL

83910BBULB, CLOCK INDICATOR

main99132-12034i198102-198203

83910CSOCKET SUB-ASSY, CLOCK BULB

main83101-14030i198102-198203

83919SCREW, CLOCK

main83919-12230i198102-198203

main83919-14012i198102-198203

9354015016

main93540-15016

9354055016

main93540-55016

19 parts on this diagram · 6 diagrams in section

METER for Toyota SOARER

This section contains 50 genuine Toyota parts for the METER system of the Toyota SOARER. Key components include: INDICATOR, BULB, COMBINATION METER, NO.1, GLASS, COMBINATION METER, SOCKET SUB-ASSY, COMBINATION METER BULB, PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1.
