Toyota SOARER — INDICATOR

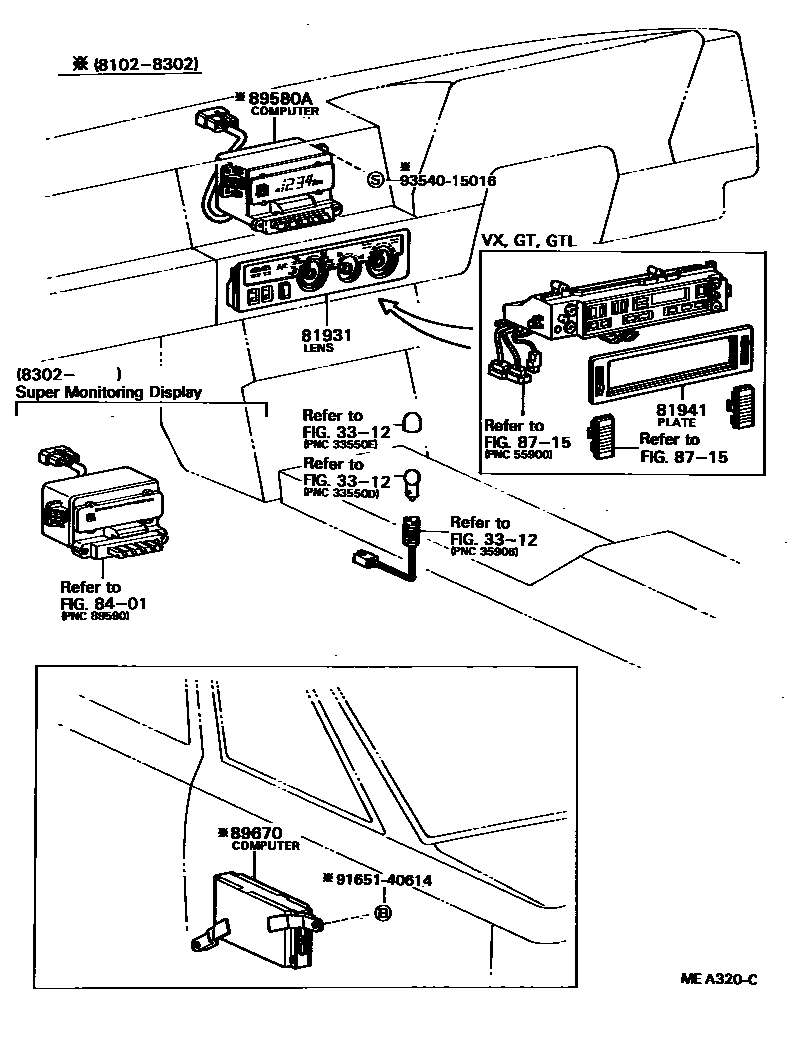

Parts diagram

3312SHIFT LEVER & RETAINER

→ Go to FIG 33-12

81931LENS, HEATER CONTROL INDICATOR

main81940-24010i198102-198512

81941PLATE, HEATER CONTROL NAME

main55519-24021i198102-198512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

89580ACOMPUTER ASSY, CRUISE PILOT

main89580-24010i198102-198302

main89580-24020i198102-198302

89670COMPUTER ASSY, TELLTALE WARNING(FOR SPEAK MONITOR)

main89670-24010i198102-198203

EXTRA EDITION

main89670-24011i198203-198302

LIMITED

9165140614

main91651-40614

9354015016

main93540-15016

9 parts on this diagram · 1 diagram in section

INDICATOR for Toyota SOARER

This section contains 9 genuine Toyota parts for the INDICATOR system of the Toyota SOARER. Key components include: SHIFT LEVER & RETAINER, LENS, HEATER CONTROL INDICATOR, PLATE, HEATER CONTROL NAME, SWITCH & RELAY & COMPUTER, HEATING & AIR CONDITIONING - CONTROL & AIR DUCT.
