Toyota SOARER — HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

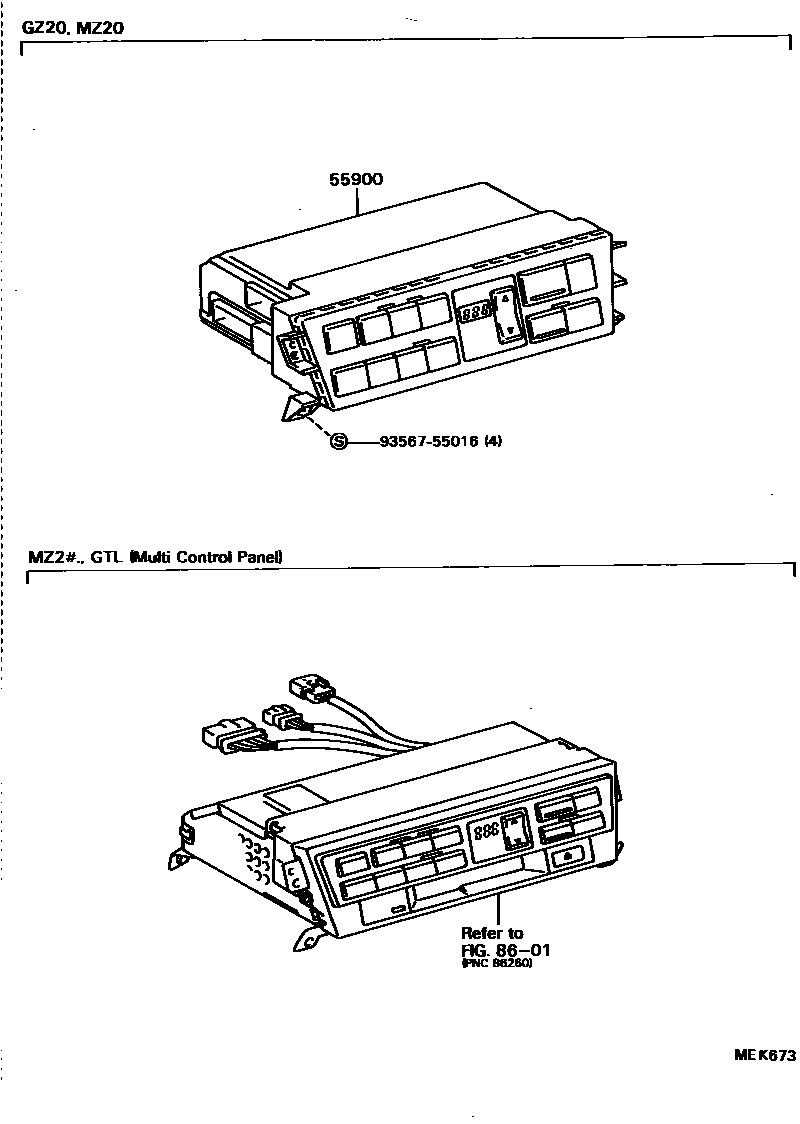

55900CONTROL ASSY, AIR CONDITIONER

main55900-24040i198801-198901

main55900-24041i198901-199104

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

9356755016

main93567-55016

3 parts on this diagram · 3 diagrams in section

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT for Toyota SOARER

This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - CONTROL & AIR DUCT system of the Toyota SOARER. Key components include: CONTROL ASSY, AIR CONDITIONER, RADIO RECEIVER & AMPLIFIER & CONDENSER, DUCT, AIR, NO.2, DUCT, AIR, NO.3, DUCT, AIR, REAR NO.1.
