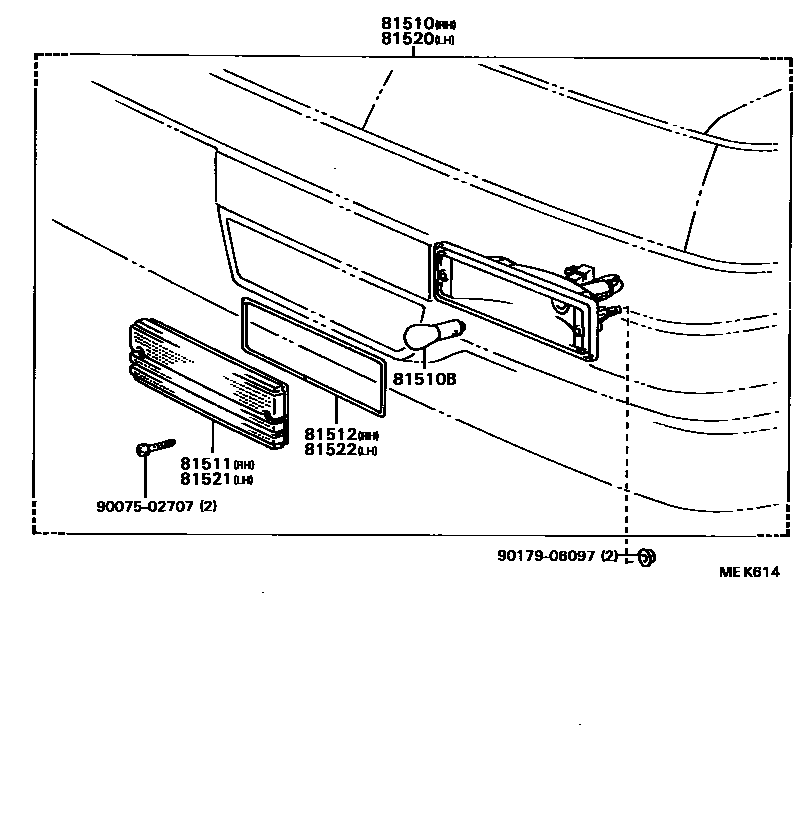

Toyota SOARER — FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-24021i198801-198908

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2i198801-198908

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-24021i198801-198908

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-24020i198801-198908

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-24021i198801-198908

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-24021i198801-198908

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-24020i198801-198908

9007502707

main90075-02707

9017906097

main90179-06097

9 parts on this diagram · 1 diagram in section

FRONT TURN SIGNAL LAMP for Toyota SOARER

This section contains 9 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota SOARER. Key components include: LAMP ASSY, FRONT TURN SIGNAL, RH, BULB (FOR FRONT TURN SIGNAL LAMP), LENS, FRONT TURN SIGNAL LAMP, RH, GASKET, FRONT TURN SIGNAL LAMP LENS, RH, LAMP ASSY, FRONT TURN SIGNAL, LH.
