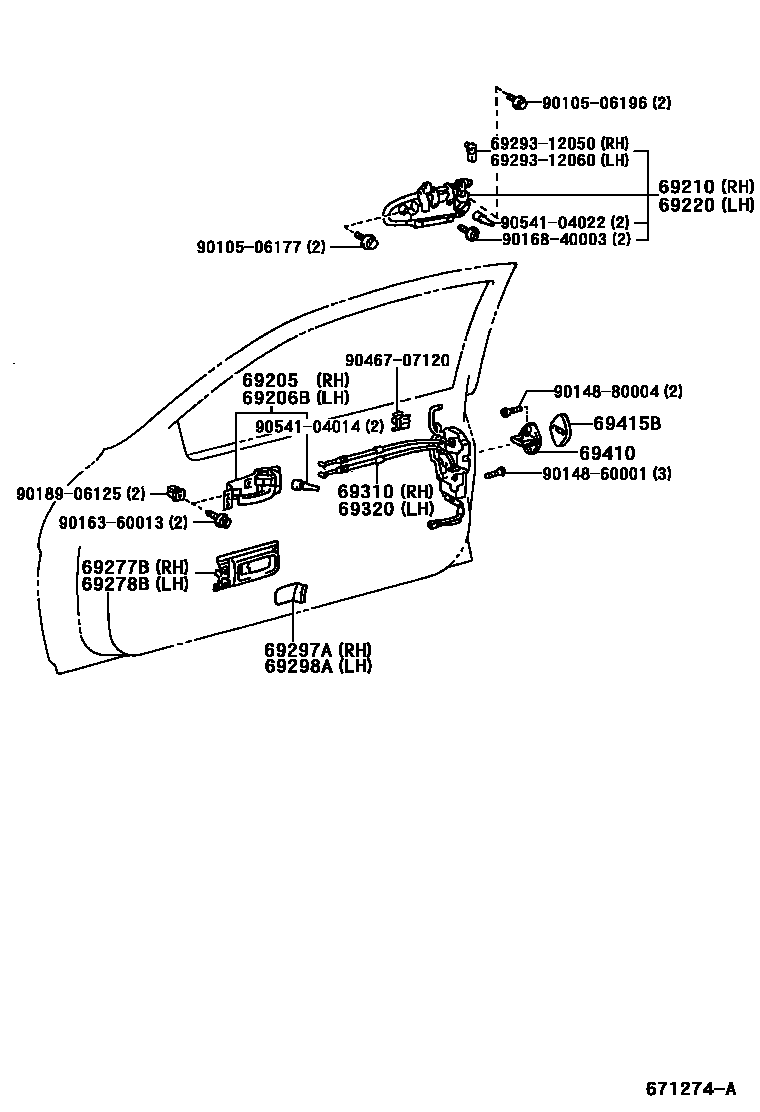

Toyota SOARER — FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
BLACK,202
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5
BEIGE M,4K9
BLUISH GREEN MIO,6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
WHITE PM.,057
BLUISH SILVER ME,1A0
SILVER ME.,1C0
SUPER RED 4,3L2
WINE RED MC.,3L4
ROSE RED MC.,3M9
RED MC,3N1
MI.GR.GREEN MCGR,6N1
DK.GREEN M.M.,6P2
DK. GREEN MC.,6Q7
BLUE M.M.,8L5
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK,202
RED MICA,3K3
SUPER SILVER 3 M,176
DARK BLUE MCFP,8J5
BEIGE M,4K9
BLUISH GREEN MIO,6M2
SUPER WHITE PEARL M,051
GRAYISH GREEN M,6M3
WHITE PM.,057
BLUISH SILVER ME,1A0
SILVER ME.,1C0
SUPER RED 4,3L2
WINE RED MC.,3L4
ROSE RED MC.,3M9
RED MC,3N1
MI.GR.GREEN MCGR,6N1
DK.GREEN M.M.,6P2
DK. GREEN MC.,6Q7
BLUE M.M.,8L5
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69297ABEZEL, DOOR INSIDE HANDLE, NO.2 RH
69298ABEZEL, DOOR INSIDE HANDLE, NO.2 LH
69310LOCK ASSY, FRONT DOOR, RH
69320LOCK ASSY, FRONT DOOR, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
6929312050HANDLE, BACK DOOR
main69293-12050
6929312060HANDLE, BACK DOOR
main69293-12060
9010506177
main90105-06177
9010506196
main90105-06196
9014860001
main90148-60001
9014880004
main90148-80004
9016360013
main90163-60013
9016840003
main90168-40003
9018906125
main90189-06125
9046707120
main90467-07120
9054104014
main90541-04014
9054104022
main90541-04022
24 parts on this diagram · 1 diagram in section
FRONT DOOR LOCK & HANDLE for Toyota SOARER
This section contains 24 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota SOARER. Key components include: HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH, HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH, HANDLE ASSY, FRONT DOOR, OUTSIDE RH, HANDLE ASSY, FRONT DOOR OUTSIDE, LH, BEZEL, FRONT DOOR INSIDE HANDLE, RH.
