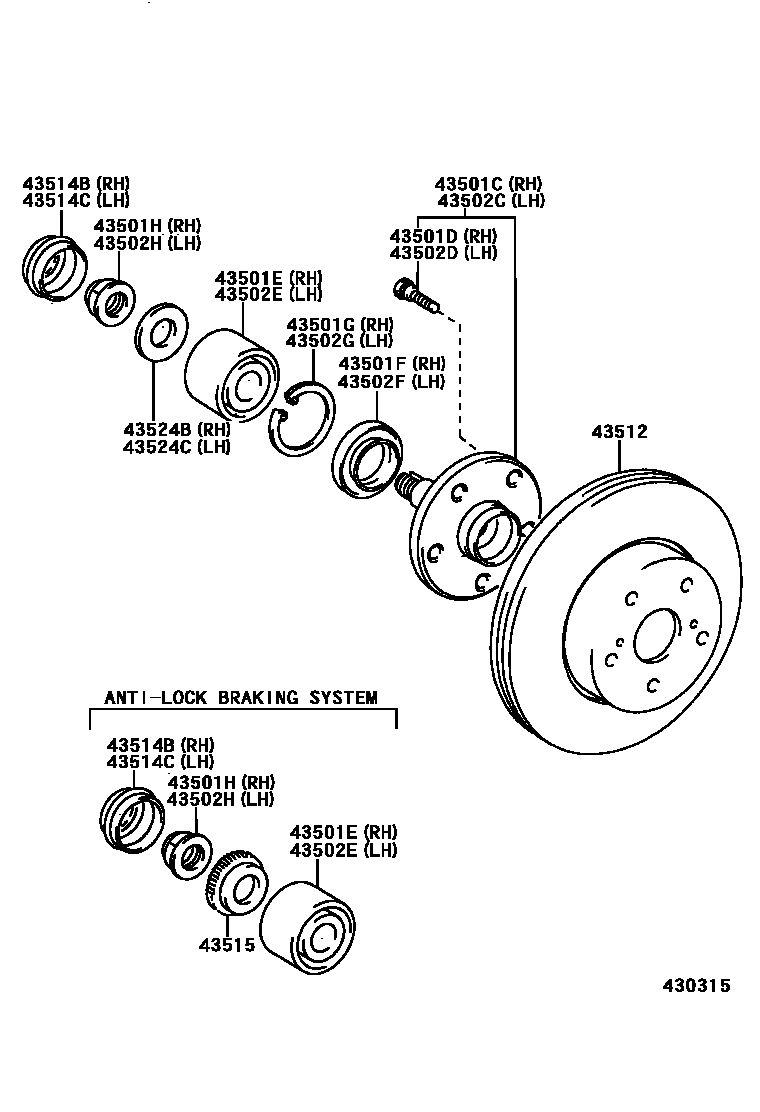

Toyota SOARER — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-24011i199105-199108

main43502-30140i199108

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5i199105-199108

main90942-02070×5i199108

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-35034i199105-199310

main90903-63006i199310

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-50008i199105

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-82001i199105

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90179-24005i199105

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-24011i199105-199108

main43502-30140i199108-199304

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5i199105-199108

main90942-02070×5i199108-199304

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-35034i199105-199304

main90903-63006i199310

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-50008i199305

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-82001i199305

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90179-24005i199105-199304

43512DISC, FRONT

main43512-24041×2i199204-199908

main43512-24051×2i199204-199608

43514BCAP, FRONT AXLE HUB GREASE, RH

main43514-24010i199105

43514CCAP, FRONT AXLE HUB GREASE, LH

main43514-24010i199105

43515ROTOR, SKID CONTROL, FRONT

main43515-24010×2i199105

43524BSPACER, FRONT WHEEL INNER BEARING, RH

main43524-24010i199105-199608

43524CSPACER, FRONT WHEEL INNER BEARING, LH

main43524-24010i199105-199608

18 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota SOARER

This section contains 18 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota SOARER. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), BEARING (FOR FRONT AXLE HUB RH), SEAL, OIL (FOR FRONT AXLE HUB RH), RING, HOLE SNAP (FOR FRONT AXLE HUB RH).
