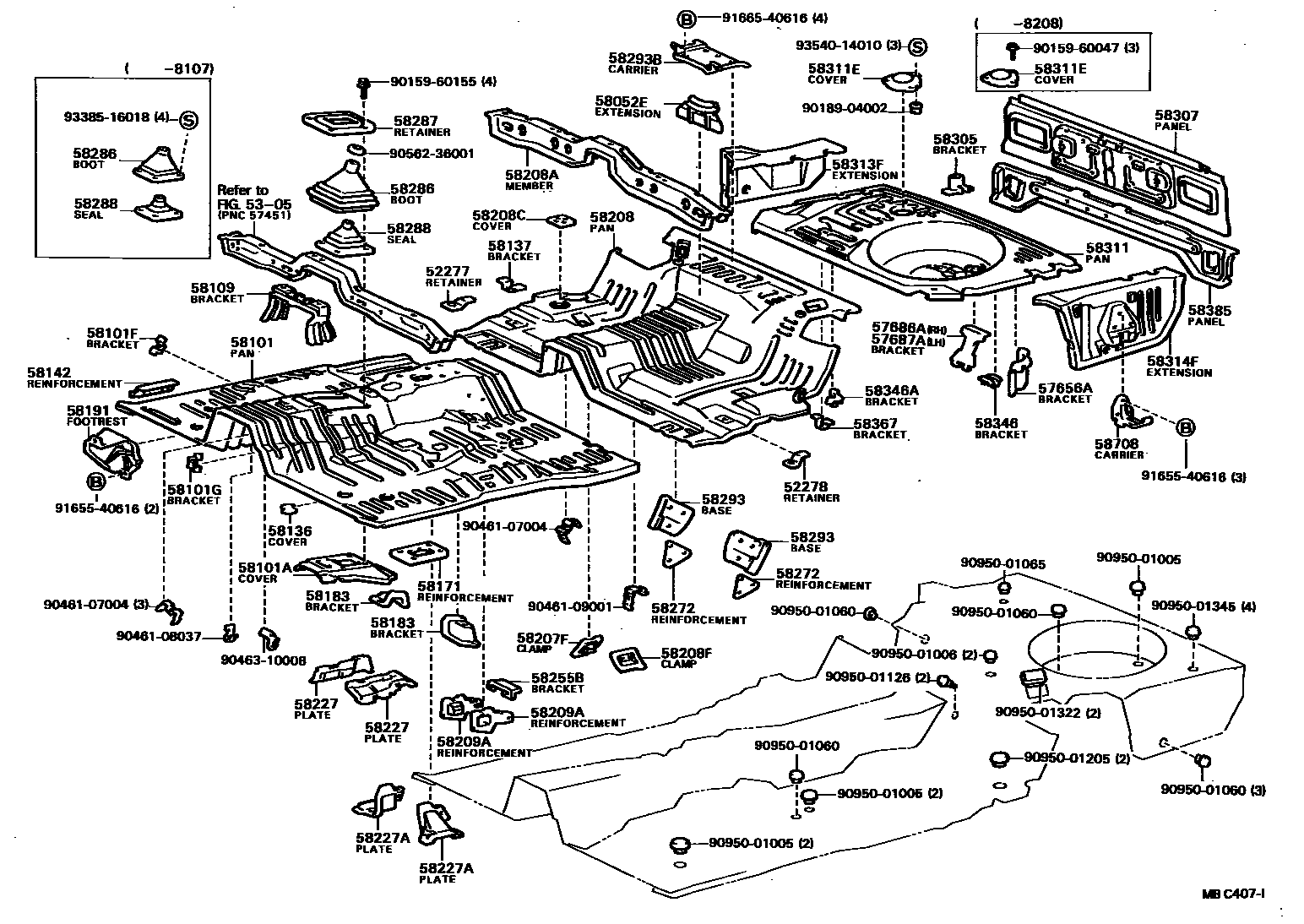

Toyota SOARER — FLOOR PAN & LOWER BACK PANEL
52277RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52278RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH
5305FLOOR SIDE MEMBER
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
58052EEXTENSION, CENTER FLOOR TO BRACE
58101PAN SUB-ASSY, FRONT FLOOR
58101ACOVER, TRANSMISSION AUXILIARY
58101FBRACKET, MOUNTING, FLOOR, NO.1
58101GBRACKET, MOUNTING, FLOOR, NO.2
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58136COVER, FRONT FLOOR HOLE
58137BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4
58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58207FCLAMP SUB-ASSY, PARKING BRAKE CABLE, RH
58208PAN, CENTER FLOOR
58208AMEMBER, CENTER FLOOR CROSS, NO.1
58208CCOVER, CENTER FLOOR HOLE
58208FCLAMP SUB-ASSY, PARKING BRAKE CABLE, LH
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
RH
LH
58227PLATE, AIR GUIDE, OUTSIDE
RH
LH
58227APLATE, AIR GUIDE
RH
LH
58255BBRACKET, PARKING BRAKE CABLE GUIDE, NO.1
58272REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
RH
RH
LH
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58288SEAL, SHIFT LEVER BOOT
58293BASE, BELT ANCHOR TO FLOOR PAN, NO.4
RH
LH
58293BCARRIER, DISPLAY COMPUTER
W/MULTI DISPLAY
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58311ECOVER, REAR FLOOR SERVICE HOLE
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58346BRACKET, REAR FLOOR HEAT INSULATOR
58346ABRACKET, REAR FLOOR HEAT INSULATOR, NO.2
58367BRACKET, FUEL TUBE CLAMP
58385PANEL, REAR VALANCE
58708CARRIER SUB-ASSY, JACK
9015960047
main90159-60047
9015960155
main90159-60155
9018904002
main90189-04002
9046107004
main90461-07004
9046108037
main90461-08037
9046109001
main90461-09001
9046310008
main90463-10008
9056236001
main90562-36001
9095001005
main90950-01005
9095001006
main90950-01006
9095001060
main90950-01060
9095001065
main90950-01065
9095001126
main90950-01126
9095001205
main90950-01205
9095001322
main90950-01322
9095001345
main90950-01345
9165540616
main91655-40616
9166540616
main91665-40616
9338516018
main93385-16018
9354014010
main93540-14010
64 parts on this diagram · 1 diagram in section
FLOOR PAN & LOWER BACK PANEL for Toyota SOARER
This section contains 64 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota SOARER. Key components include: RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH, RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH, FLOOR SIDE MEMBER, BRACKET, EXHAUST PIPE MOUNTING, NO.1, BRACKET, FUEL TANK MOUNTING, REAR RH.
