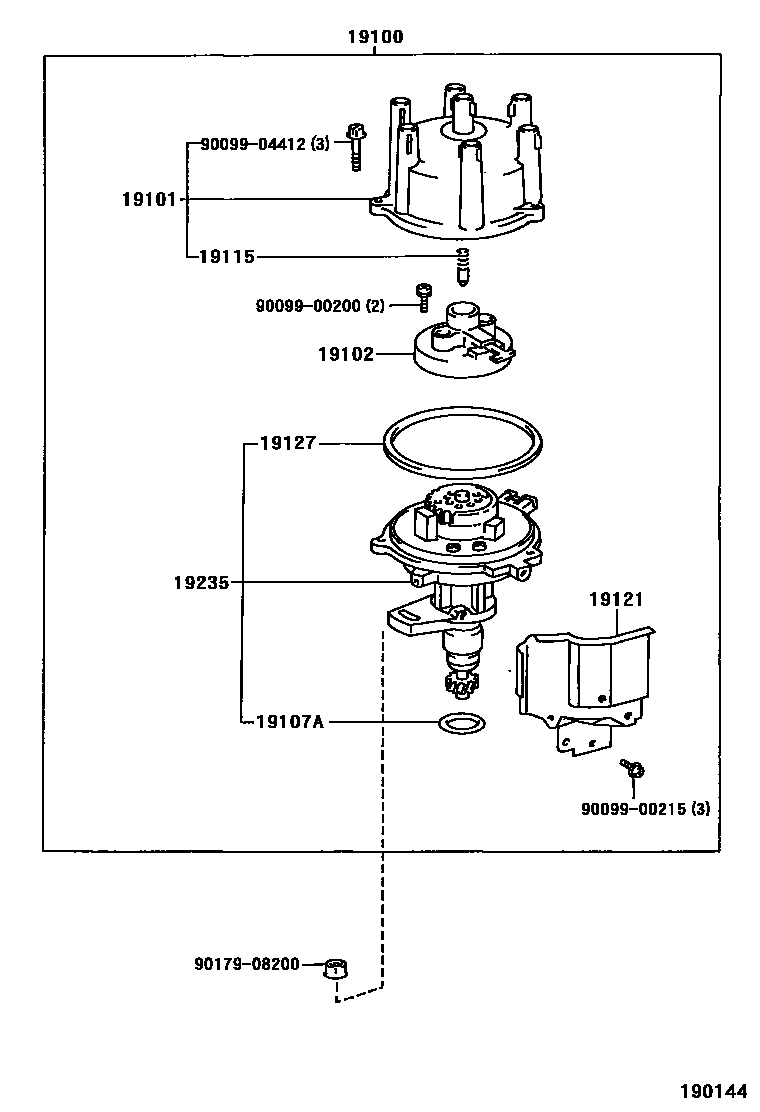

Toyota SOARER — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19100-46011i199401-199709

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-46020i199401-199405

main19101-46030i199405-199406

main19101-50020×2i199105-199709

main19101-70020i199406-199709

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-46011i199401-199709

main19102-50020×2i199105-199709

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14109i199401-199709

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010×2i199105-199709

main19115-88280i199401-199709

19121COVER, DUST PROOF

main19121-46010i199401-199709

19127PACKING, DUST PROOF

main19127-61240i199401-199709

19235HOUSING, DISTRIBUTOR

main19235-46010i199401-199709

9009900200

main90099-00200

9009900215

main90099-00215

9009904412

main90099-04412

9017908200

main90179-08200

12 parts on this diagram · 2 diagrams in section

DISTRIBUTOR for Toyota SOARER

This section contains 22 genuine Toyota parts for the DISTRIBUTOR system of the Toyota SOARER. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
