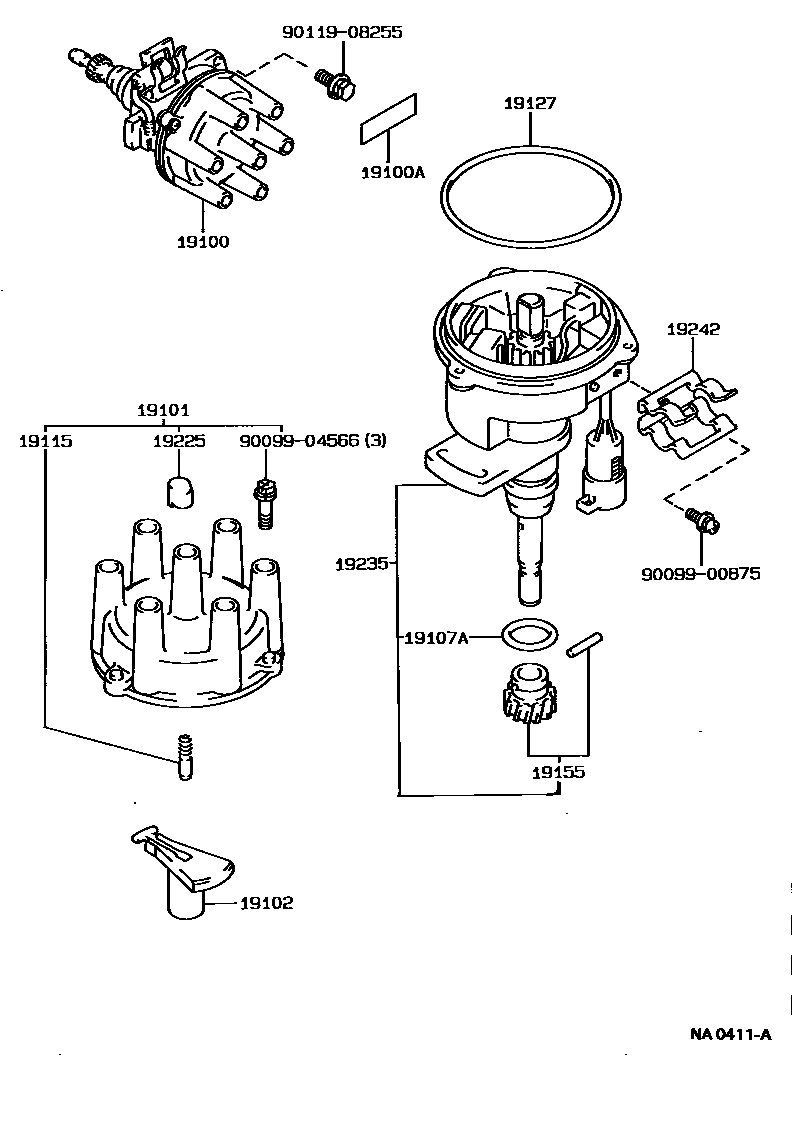

Toyota SOARER — DISTRIBUTOR
19100DISTRIBUTOR ASSY
19100ATAPE, SEALING
19101CAP SUB-ASSY, DISTRIBUTOR
19102ROTOR SUB-ASSY, DISTRIBUTOR
19107ARING, O, DISTRIBUTOR HOUSING
19115PIECE, DISTRIBUTOR CAP, CENTER
19127PACKING, DUST PROOF
19155GEAR, SPIRAL, DISTRIBUTOR
19225CAP, RUBBER
19235HOUSING, DISTRIBUTOR
19242CLAMP, CORD
9009900875
main90099-00875
9009904566
main90099-04566
9011908255
main90119-08255
14 parts on this diagram · 5 diagrams in section
DISTRIBUTOR for Toyota SOARER
This section contains 26 genuine Toyota parts for the DISTRIBUTOR system of the Toyota SOARER. Key components include: DISTRIBUTOR ASSY, TAPE, SEALING, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING.
