Toyota SOARER — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040i198601-198801

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020×2i198601-198801

55701PANEL SUB-ASSY, COWL

main55700-24040i198601-198801

55713APANEL, COWL TOP SIDE, RH

main55713-24020i198601-198801

55714APANEL, COWL TOP SIDE, LH

main55714-24020i198601-198801

55748ABRACE, COWL TOP INNER TO PILLAR

main55748-24010i198601-198801

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-24030i198601-198801

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-24010i198601-198801

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-24010i198601-198801

55950NOZZLE ASSY, DEFROSTER

main55950-24020i198601-198801

55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-24020i198601-198801

55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-24020i198601-198801

55967NOZZLE, DEFROSTER, LOWER

main55967-24010i198601-198801

56111GLASS, WINDSHIELD

main56111-24070i198601-198701

main56111-24071i198701-198801

BRONZE,*LAM,T=4.7

56114RETAINER, WINDSHIELD GLASS

main56114-30050×2i198601-198801

TYPE A

main56114-30060×2i198601-198801

TYPE B

9011906005

main90119-06005

9017908025

main90179-08025

9046710015

main90467-10015

9095001148

main90950-01148

9165540820

main91655-40820

9356755016

main93567-55016

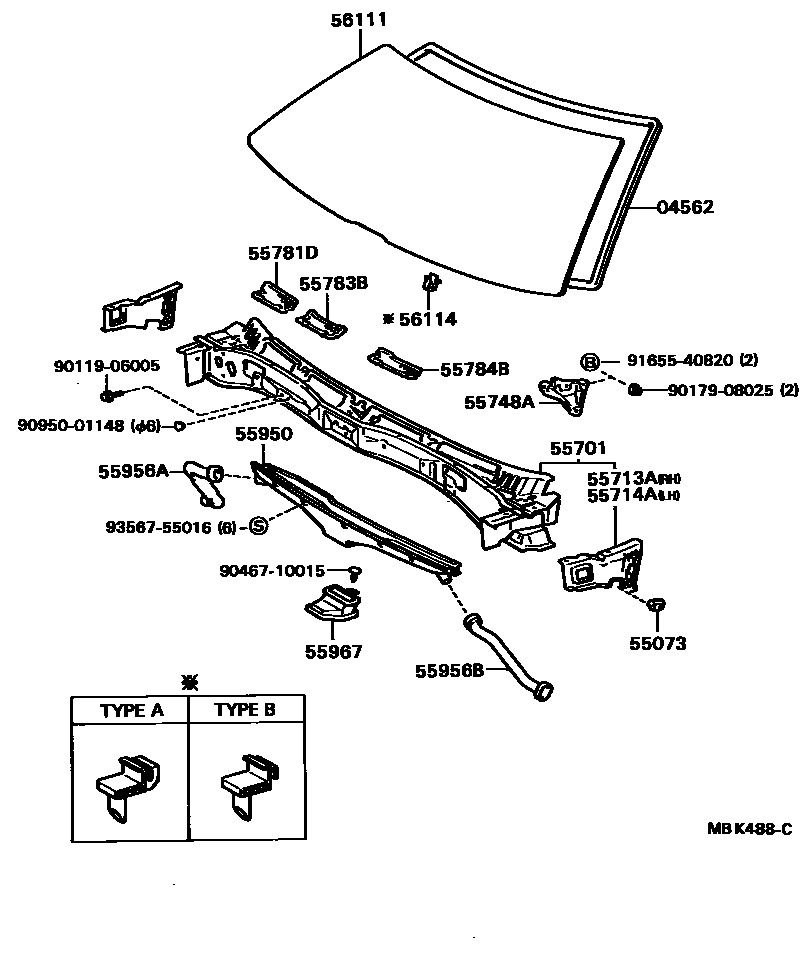

21 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota SOARER

This section contains 21 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota SOARER. Key components include: DAM KIT, WINDSHIELD GLASS, NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT, PANEL SUB-ASSY, COWL, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH.
