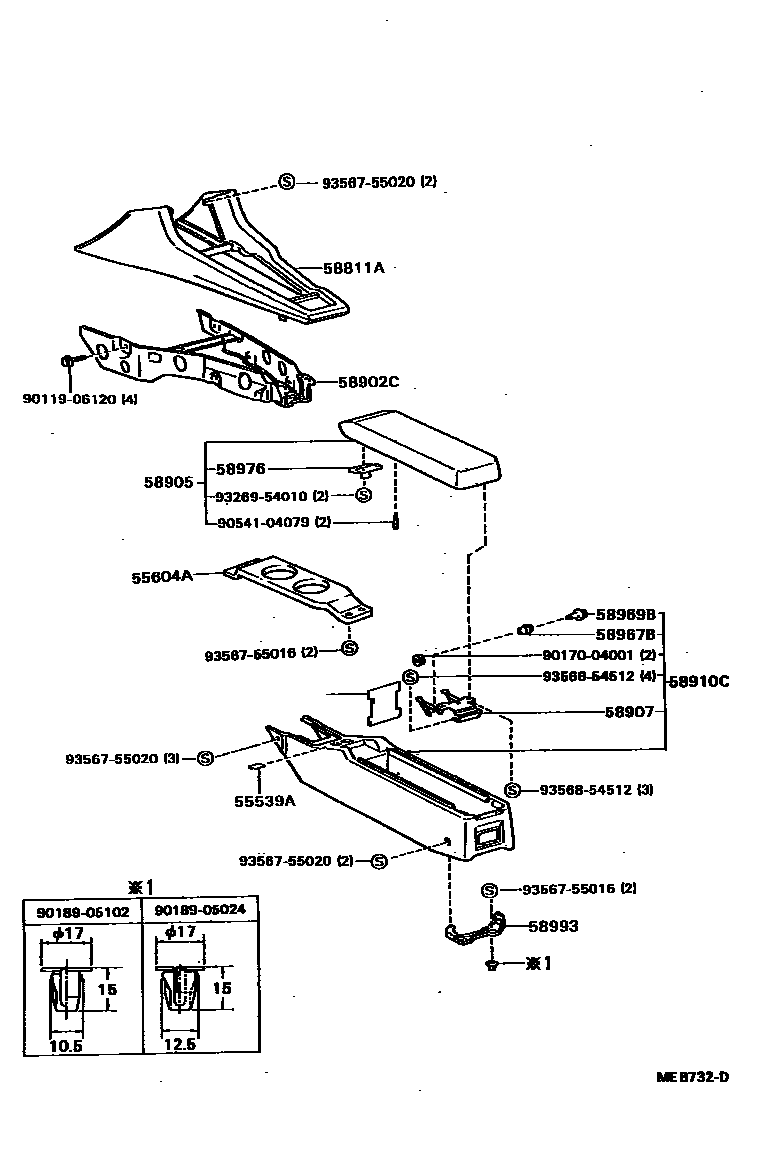

Toyota SOARER — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20030-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main55539-20030-15iGZ20;MZ20..CP..GT198801-199104

GREIGE,TRIM4#

main55539-20030-24iGZ20;MZ20..CP..GT198801-199104

main55539-32010-44iMZ2#..GTL198801-199104

DARK BLUE,TRIM8#

sub55539-32030

main55539-32010-45iMZ2#..GTL198801-199104

GREIGE,TRIM4#

sub55539-32030

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-24010iGZ20,MZ2#198901-199104

58811ABOX, CONSOLE, FRONT

main58810-24010-01iGZ20;MZ20..CP..GT198801-199104

BLACK,TRIM2#

main58810-24010-04iGZ20,MZ2#..CP198801-199104

DARK BLUE,TRIM8#

main58810-24010-15iMZ2#..GTL198801-199104

GREIGE,TRIM4#

main58810-24020-15iMZ2#..GTL198801-199104

GREIGE,TRIM4#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-24010iGZ20,MZ2#198801-199104

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-24020-01iGZ20;MZ20..GT198801-198901

BLACK,TRIM2#

main58905-24020-04iGZ20,MZ2#198801-198901

DARK BLUE,TRIM8#

main58905-24020-15iMZ2#..GTL198801-198901

GREIGE,TRIM4#

main58905-24030-15iMZ2#..GTL198801-198901

GREIGE,TRIM4#

main58905-24040-01iGZ20;MZ20..CP..GT198901-199104

BLACK,TRIM2#

main58905-24040-04iGZ20,MZ2#..CP198901-199104

DARK BLUE,TRIM8#

main58905-24040-05iMZ2#..GTL198901-199104

GREIGE,TRIM4#

main58905-24050-05iMZ2#..GTL198901-199104

GREIGE,TRIM4#

main58905-24060-01iMZ20..GT;GZ20..GTL199004-199104

main58905-24060-04iMZ20..GT;GZ20..GTL199004-199104

main58905-24060-05iMZ20..GT;GZ20..GTL199004-199104

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-24010iGZ20,MZ2#198801-198901

main58907-24020iGZ20,MZ2#198901-199104

58910CBOX ASSY, CONSOLE, REAR

main58910-24010-01iGZ20;MZ20..GT198801-198901

BLACK,TRIM2#

main58910-24010-04iGZ20,MZ20198801-198901

DARK BLUE,TRIM8#

main58910-24010-15iMZ20..GTL198801-198901

GREIGE,TRIM4#

main58910-24030-15iMZ20..GTL198801-198901

GREIGE,TRIM4#

main58910-24050-05iMZ20..GTL198801-198901

GREIGE,TRIM4#

main58910-24060-05iMZ20..GTL198801-198901

main58910-24070-01iGZ20;MZ20..CP..GT198901-199104

BLACK,TRIM2#

main58910-24070-04iGZ20;MZ20..CP..GT198901-199104

main58910-24070-05iMZ20..GTL198901-199104

GREIGE,TRIM4#

main58910-24080-05iMZ20..GTL198901-199104

GREIGE,TRIM4#

main58910-24090-05iMZ20..GTL198905-199104

GREIGE,TRIM4#

main58910-24100-04iMZ20..GTL198901-199104

main58910-24100-05iMZ20..GTL198901-199104

58967BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58967-14030iGZ20,MZ20198801-198901

58969BSTOPPER, CONSOLE COMPARTMENT DOOR, NO.3

main58969-14010iGZ20,MZ20198801-198901

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iGZ20,MZ2#198801-199104

58993BRACKET, CONSOLE BOX MOUNTING, REAR

main58993-14010iGZ20,MZ2#198801-199104

9011906120

main90119-06120

9017004001

main90170-04001

9018905024

main90189-05024

9018905102

main90189-05102

9054104079

main90541-04079

9326954010

main93269-54010

9356654512

main93566-54512

9356755016

main93567-55016

9356755020

main93567-55020

9356854512

main93568-54512

21 parts on this diagram · 1 diagram in section
