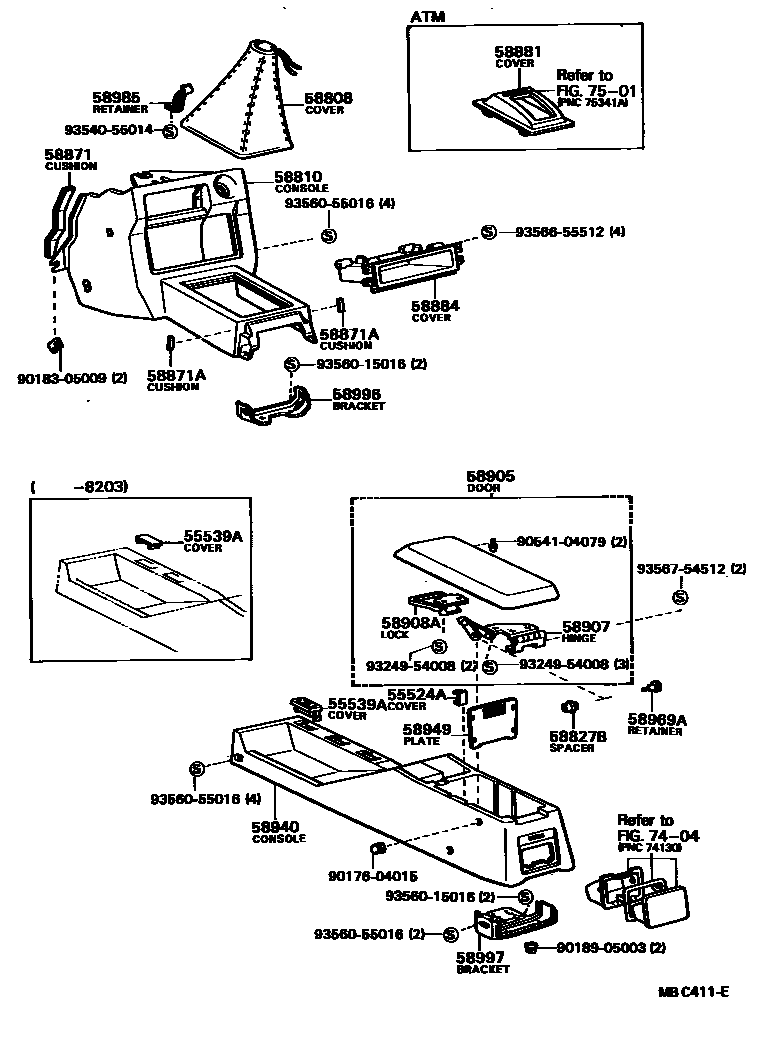

Toyota SOARER — CONSOLE BOX & BRACKET

55524ACOVER, SWITCH BASE HOLE

main55524-24010iGZ10,MZ1#198102-198512

55539ACOVER, SPARE SWITCH HOLE

main55539-14030-02×2iGZ10,MZ1#198203-198208

TERRA COTTA,RED/MAROON,TRIM3#

main55539-14030-03×2iGZ10,MZ1#198203-198208

GRAY,GRAY,TRIM1#

main55539-14030-04×2iGZ10,MZ1#198203-198208

BLUE,BLUE,TRIM8#

main55539-14031-02×2iGZ10,MZ1#198208-198302

TERRA COTTA,RED/MAROON,TRIM3#

main55539-14031-03×2iGZ10,MZ1#198208-198302

GRAY,GRAY,TRIM1#

main55539-14031-04×2iGZ10,MZ1#198208-198512

BLUE,BLUE,TRIM8#

main55539-14031-05×2iGZ10,MZ1#198302-198512

BEIGE,BEIGE,TRIM4#

main55539-14031-12×2iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main55539-24010-01iGZ10,MZ11..5F198102-198201

BLACK,BLACK,TRIM2#

sub55539-32010

sub55539-20030

main55539-24010-02×2iGZ10,MZ1#198201-198203

TERRA COTTA,RED/MAROON,TRIM3#

sub55539-32010

sub55539-20030

main55539-24010-04×2iGZ10,MZ1#198201-198203

BLUE,BLUE,TRIM8#

sub55539-32010

sub55539-20030

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-24010-01iGZ10,MZ11..5F198102-198203

BLACK,BLACK,TRIM2#

main58808-24010-02iGZ10,MZ11..5F198102-198302

TERRA COTTA,RED/MAROON,TRIM3#

main58808-24010-03iGZ10,MZ11..5F198203-198302

GRAY,GRAY,TRIM1#

main58808-24010-04iGZ10,MZ11,12..5F198102-198512

BLUE,BLUE,TRIM8#

main58808-24010-05iGZ10,MZ11,12..5F198302-198512

BEIGE,BEIGE,TRIM4#

main58808-24010-12iGZ10,MZ11,12..5F198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

58810CONSOLE ASSY

main58811-24010-01iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

main58811-24010-02iGZ10,MZ1#198102-198302

TERRA COTTA,RED/MAROON,TRIM3#

main58811-24010-03iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main58811-24010-04iGZ10,MZ1#198102-198512

BLUE,BLUE,TRIM8#

main58811-24010-05iGZ10,MZ1#198302-198512

BEIGE,BEIGE,TRIM4#

main58811-24010-12iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

58827BSPACER, CONSOLE COMPARTMENT DOOR STOPPER

main58827-20021iGZ10,MZ1#198102-198512

58871CUSHION, CONSOLE BOX

main58871-24010iGZ10,MZ1#198102-198512

58871ACUSHION, CONSOLE BOX, NO.2

main58872-24010×2iGZ10,MZ1#198102-198512

58881COVER, SHIFTING HOLE

main58843-24010-01iGZ10,MZ1#..4FC198102-198203

BLACK,BLACK,TRIM2#

main58843-24010-02iGZ10,MZ1#..4FC198102-198302

TERRA COTTA,RED/MAROON,TRIM3#

main58843-24010-03iGZ10,MZ1#..4FC198203-198302

GRAY,GRAY,TRIM1#

main58843-24010-04iGZ10,MZ1#..4FC198102-198401

BLUE,BLUE,TRIM8#

main58843-24010-05iGZ10,MZ1#..4FC198302-198401

BEIGE,BEIGE,TRIM4#

main58843-24010-12iGZ10,MZ1#..4FC198302-198401

DEEP MAROON,RED/MAROON,TRIM3#

main58843-24020-04iGZ10,MZ1#..4FC198401-198512

BLUE,BLUE,TRIM8#

main58843-24020-05iGZ10,MZ1#..4FC198401-198512

BEIGE,BEIGE,TRIM4#

main58843-24020-12iGZ10,MZ1#..4FC198401-198512

DEEP MAROON,RED/MAROON,TRIM3#

58884COVER, STEREO OPENING

main55521-22020iGZ10,MZ10198102-198302

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-24010-01iGZ10,MZ1#198102-198203

BLACK,BLACK,TRIM2#

main58905-24010-02iGZ10,MZ1#198102-198302

TERRA COTTA,RED/MAROON,TRIM3#

main58905-24010-03iGZ10,MZ1#198203-198302

GRAY,GRAY,TRIM1#

main58905-24010-04iGZ10,MZ1#198102-198512

BLUE,BLUE,TRIM8#

main58905-24010-05iGZ10,MZ1#198302-198512

BEIGE,BEIGE,TRIM4#

main58905-24010-12iGZ10,MZ1#198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-14010iGZ10,MZ1#198102-198512

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-14010iGZ10,MZ1#198102-198512

58940CONSOLE ASSY, REAR

main58901-24010-01iGZ10,MZ1#198102-198201

BLACK,BLACK,TRIM2#

main58901-24010-02iGZ10,MZ1#198102-198201

TERRA COTTA,RED/MAROON,TRIM3#

main58901-24010-04iGZ10,MZ1#198102-198201

BLUE,BLUE,TRIM8#

main58901-24011-01iGZ10,MZ1#198201-198203

BLACK,BLACK,TRIM2#

main58901-24011-02iMZ11..5F198203-198302

TERRA COTTA,RED/MAROON,TRIM3#

main58901-24011-03iMZ11..5F198203-198302

GRAY,GRAY,TRIM1#

main58901-24011-04iGZ10,MZ10..TBO,V2,VR,VX198302-198401

BLUE,BLUE,TRIM8#

main58901-24011-05iGZ10,MZ11,12..5F..(GT,GTL)198302-198512

BEIGE,BEIGE,TRIM4#

main58901-24011-12iGZ10,MZ11,12..5F..(GT,GTL)198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main58901-24020-01iMZ11198102-198201

W/RR WIPER,BLACK,BLACK,TRIM2#

main58901-24020-02iMZ11198102-198201

W/RR WIPER,TERRA COTTA,RED/MAROON,TRIM3#

main58901-24020-04iMZ11198102-198201

W/RR WIPER,BLUE,BLUE,TRIM8#

main58901-24021-01iMZ11198201-198203

W/RR WIPER,BLACK,BLACK,TRIM2#

main58901-24021-02iMZ11198201-198203

W/RR WIPER,TERRA COTTA,RED/MAROON,TRIM3#

main58901-24021-03iMZ11..4FC198203-198302

GRAY,GRAY,TRIM1#

main58901-24021-04iGZ10,MZ1#..4FC..(GT,GTL,TBO)198401-198512

BLUE,BLUE,TRIM8#

main58901-24021-05iGZ10,MZ1#..4FC..(GT,GTL,TBO)198401-198512

BEIGE,BEIGE,TRIM4#

main58901-24021-12iGZ10,MZ1#..4FC..(GT,GTL,TBO)198401-198512

DEEP MAROON,RED/MAROON,TRIM3#

main58901-24030-02iMZ12..4FC..GTL198501-198512

W/MULTI DISPLAY,DEEP MAROON,DEEP MAROON,TRIM3#

58949PLATE, CONSOLE BOX

main58919-24010×2iGZ10,MZ1#198102-198512

58969ARETAINER, CONSOLE COMPARTMENT DOOR STOPPER

main58969-20010iGZ10,MZ1#198102-198512

58985RETAINER, CONSOLE BOX

main58985-24010iGZ10,MZ11,12..5F198102-198512

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58996-24010iGZ10,MZ1#198102-198512

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-24010iGZ10,MZ1#198102-198512

7404

7501

9017604015

main90176-04015

9018305009

main90183-05009

9018905003

main90189-05003

9054104079

main90541-04079

9324954008

main93249-54008

9354055014

main93540-55014

9356015016

main93560-15016

9356055016

main93560-55016

9356655512

main93566-55512

9356754512

main93567-54512

9824954008

main98249-54008

31 parts on this diagram · 1 diagram in section
