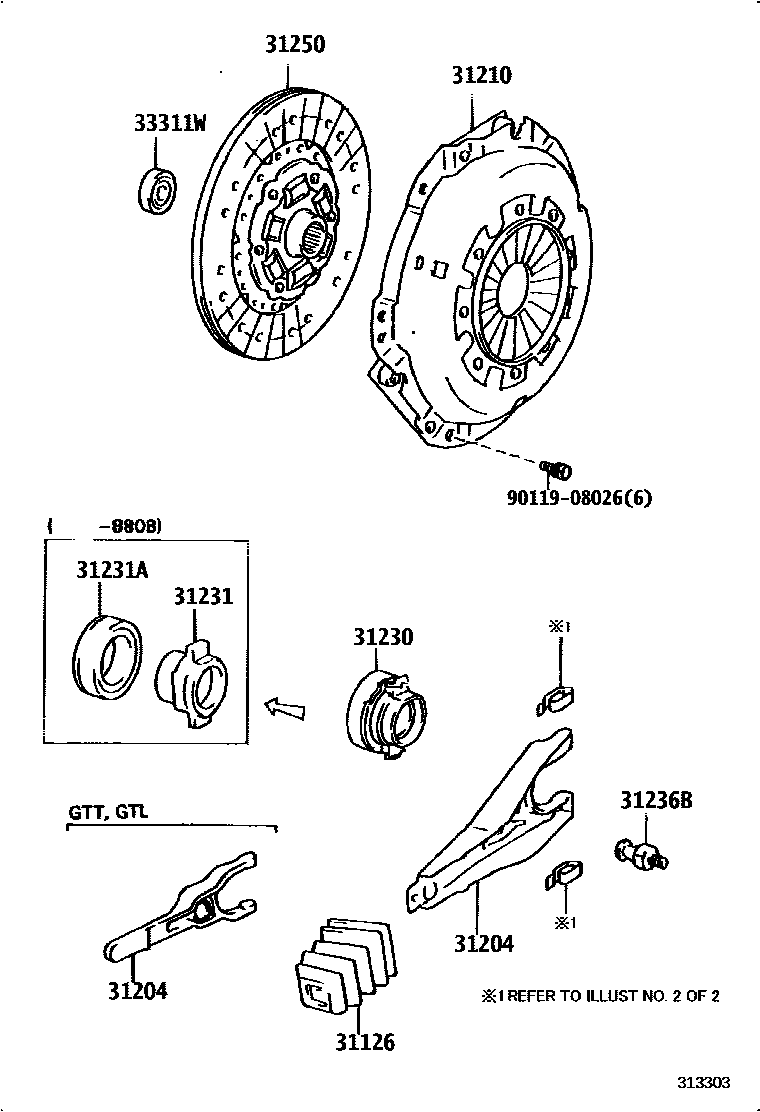

Toyota SOARER — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31231HUB, CLUTCH RELEASE BEARING
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
33311WBEARING (FOR INPUT SHAFT)
9011908026
main90119-08026
10 parts on this diagram · 3 diagrams in section
CLUTCH & RELEASE FORK for Toyota SOARER
This section contains 20 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota SOARER. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, HUB, CLUTCH RELEASE BEARING.
