Toyota SOARER — CAUTION PLATE & NAME PLATE (ENGINE)

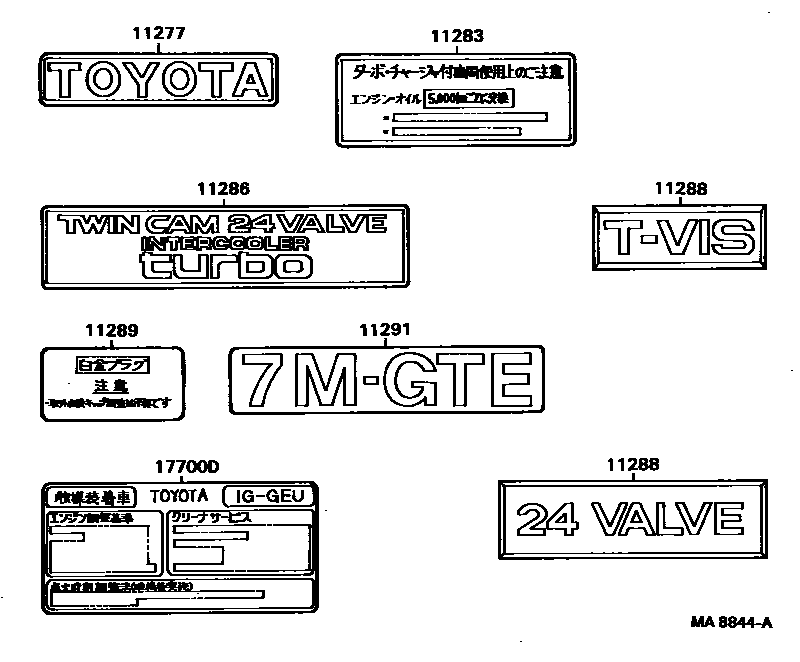

Parts diagram

11277PLATE, ENGINE SPECIFICATION, NO.2

main11277-42010i198601-198801

11283PLATE, TURBOCHARGER CAUTION

main11283-41010i198601-198801

11286PLATE, ENGINE SPECIFICATION

main11286-42010i198601-198801

11288PLATE, ENGINE SYSTEM

main11288-88301i198601-198801

main11288-88340i198601-198801

11289PLATE, SPARK PLUG CAUTION

main11289-13030i198601-198606

main11289-16010i198606-198801

main11289-70010i198601-198606

main11289-70020i198606-198801

11291PLATE, ENGINE NAME

main11291-42020i198601-198801

main11291-70020i198601-198706

main11291-88300i198601-198801

main11291-88340i198601-198801

17700DPLATE, ENGINE CAUTION

main11293-42080i198601-198608

main11293-42081i198608-198801

main11293-70051i198601-198608

main11293-70100i198601-198608

main11293-70110i198601-198801

main11296-70010i198608-198801

main11296-70030i198608-198801

7 parts on this diagram · 1 diagram in section

CAUTION PLATE & NAME PLATE (ENGINE) for Toyota SOARER

This section contains 7 genuine Toyota parts for the CAUTION PLATE & NAME PLATE (ENGINE) system of the Toyota SOARER. Key components include: PLATE, ENGINE SPECIFICATION, NO.2, PLATE, TURBOCHARGER CAUTION, PLATE, ENGINE SPECIFICATION, PLATE, ENGINE SYSTEM, PLATE, SPARK PLUG CAUTION.
