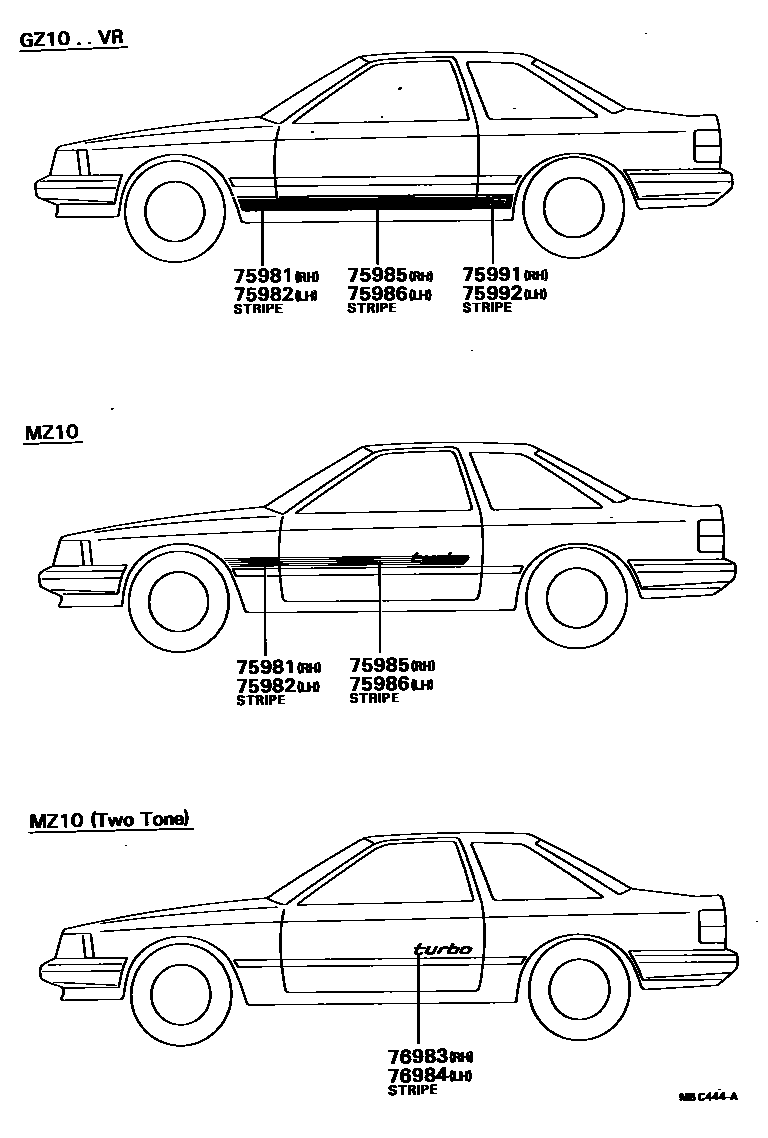

Toyota SOARER — BODY STRIPE
75981STRIPE, FRONT FENDER, RH NO.1
MAROON & BLUE & BLACK,RED/MAROON
IVORY & SILVER,IVORY
BLACK,BLACK
BEIGE,BEIGE
75982STRIPE, FRONT FENDER, LH NO.1
MAROON & BLUE & BLACK,RED/MAROON
IVORY & SILVER,IVORY
BLACK,BLACK
BEIGE,BEIGE
75985STRIPE, FRONT DOOR, RH
MAROON & BLUE & BLACK,RED/MAROON
IVORY & SILVER,IVORY
BLACK,BLACK
BEIGE,BEIGE
75986STRIPE, FRONT DOOR, LH
MAROON & BLUE & BLACK,RED/MAROON
IVORY & SILVER,IVORY
BLACK,BLACK
BEIGE,BEIGE
75991STRIPE, QUARTER, RH NO.1
MAROON & BLUE & BLACK,RED/MAROON
IVORY & SILVER,IVORY
75992STRIPE, QUARTER, LH NO.1
MAROON & BLUE & BLACK,RED/MAROON
IVORY & SILVER,IVORY
76983STRIPE, FRONT DOOR MARK, RH
BLACK,BLACK
BLUE,BLUE
WHITE,IVORY
TURBO
BLACK,BLACK
BLUE,BLUE
WHITE,IVORY
76984STRIPE, FRONT DOOR MARK, LH
BLACK,BLACK
BLUE,BLUE
WHITE,IVORY
TURBO
BLACK,BLACK
BLUE,BLUE
WHITE,IVORY
8 parts on this diagram · 3 diagrams in section
BODY STRIPE for Toyota SOARER
This section contains 8 genuine Toyota parts for the BODY STRIPE system of the Toyota SOARER. Key components include: STRIPE, FRONT FENDER, RH NO.1, STRIPE, FRONT FENDER, LH NO.1, STRIPE, FRONT DOOR, RH, STRIPE, FRONT DOOR, LH, STRIPE, QUARTER, RH NO.1.
