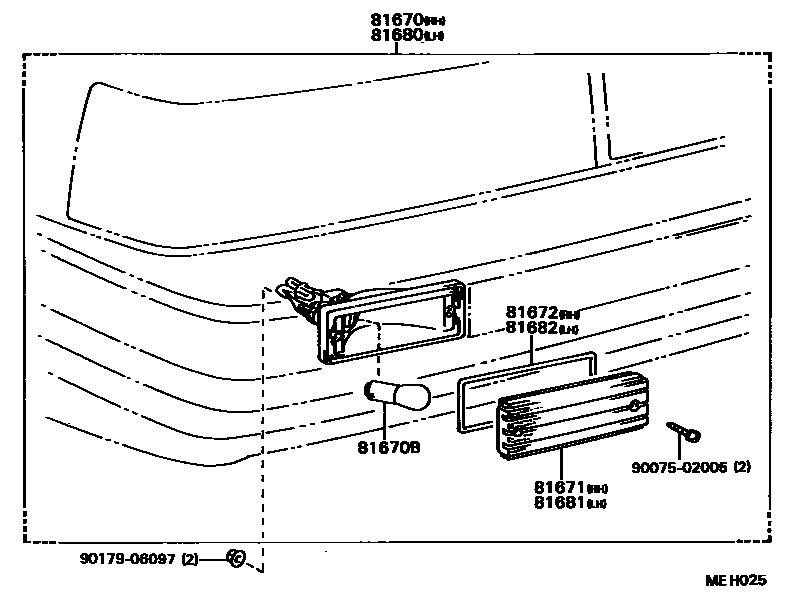

Toyota SOARER — BACK UP LAMP
81670LAMP ASSY, BACK-UP, RH
81670BBULB(FOR BACK-UP LAMP)
81671LENS, BACK-UP LAMP, RH
81672GASKET, BACK-UP LAMP LENS, RH
81680LAMP ASSY, BACK UP, LH
81681LENS, BACK-UP LAMP, LH
81682GASKET, BACK UP LAMP LENS, LH
9007502005
main90075-02005
9017906097
main90179-06097
9 parts on this diagram · 1 diagram in section
BACK UP LAMP for Toyota SOARER
This section contains 9 genuine Toyota parts for the BACK UP LAMP system of the Toyota SOARER. Key components include: LAMP ASSY, BACK-UP, RH, BULB(FOR BACK-UP LAMP), LENS, BACK-UP LAMP, RH, GASKET, BACK-UP LAMP LENS, RH, LAMP ASSY, BACK UP, LH.
