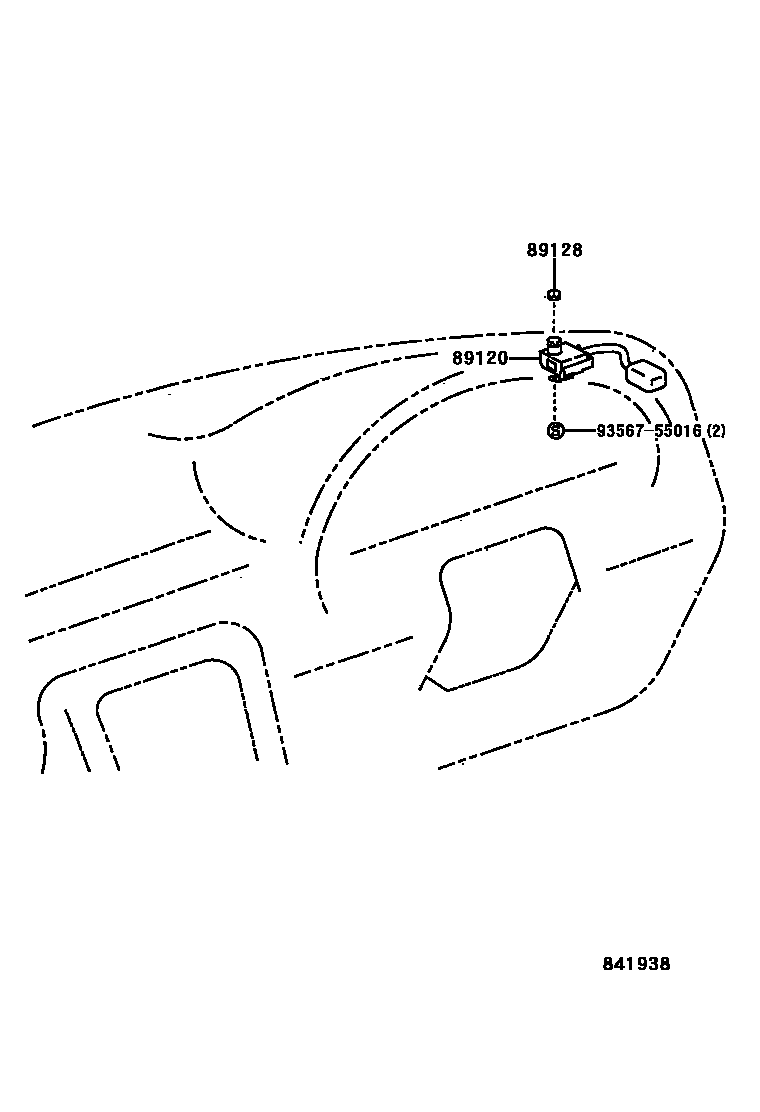

Toyota SOARER — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

89120SENSOR, AUTOMATIC LIGHT CONTROL

main89120-24010iJZZ30,UZZ3#..GT,GTL,GTTL199105-199401

89128NUT, CONLIGHT SCANNER

main89128-24010-05iJZZ30,UZZ3#..GT,GTL,GTTL199105-199303

GRAIGE,TRIM0#

main89128-24010-07iJZZ30,UZZ3#..GT,GTL,GTTL199105-199303

DARK SPRUCE,TRIM6#

main89128-24010-P0iJZZ30,UZZ3#..GT,GTL,GTTL199105-199303

SHADOW GR,TRIM1#

main89128-30020iJZZ30,UZZ3#..GT,GTL,GTTL199303-199401

9356755016

main93567-55016

3 parts on this diagram · 1 diagram in section
