Toyota SOARER — ARMREST & VISOR

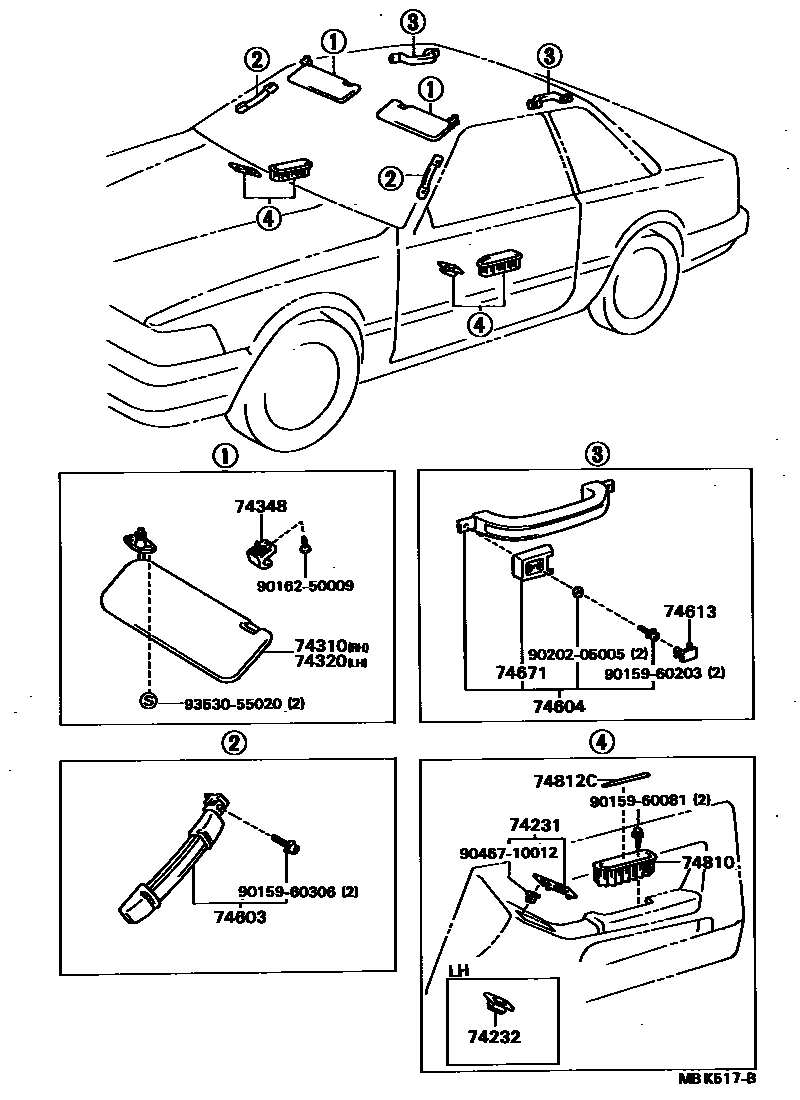

Parts diagram
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-24020i198601-198801
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-24030i198601-198801
74310VISOR ASSY, RH
main74310-24060-01i198601-198801
BLACK,BLACK,TRIM2#
main74310-24060-05i198601-198801
BEIGE,DARK BEIGE,TRIM4#
main74310-24060-06i198601-198801
BROWN,BROWN,TRIM4#
main74310-24070-01i198601-198801
BLACK,BLACK,TRIM2#
main74310-24070-05i198701-198801
BEIGE,DARK BEIGE,TRIM4#
main74310-24070-06i198601-198801
BROWN,BROWN,TRIM4#
main74310-24080-05i198601-198801
BEIGE,DARK BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-24050-01i198601-198801
BLACK,BLACK,TRIM2#
main74320-24050-05i198701-198801
DARK BEIGE,DARK BEIGE,TRIM4#
main74320-24050-06i198601-198801
BROWN,BROWN,TRIM4#
main74320-24060-05i198601-198801
BEIGE,DARK BEIGE,TRIM4#
74348HOLDER, VISOR
main74348-20020-01×2i198601-198801
BLACK,BLACK,TRIM2#
main74348-20020-05×2i198601-198701
BEIGE,DARK BEIGE,TRIM4#
main74348-20020-16×2i198601-198801
BROWN,DARK BEIGE,TRIM4#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-24020-01×2i198601-198801
BLACK,BLACK,TRIM2#
main74610-24020-05×2i198701-198801
BEIGE,DARK BEIGE,TRIM4#
main74610-24020-06×2i198601-198801
BROWN,BROWN,TRIM4#
74604GRIP SUB-ASSY, ASSIST, REAR
main74610-24030-03×2i198601-198801
GRAY,GRAY,TRIM2#
main74610-24030-05×2i198601-198801
BEIGE,BEIGE,TRIM4#
main74610-24030-06×2i198601-198801
BROWN,BROWN,TRIM4#
main74610-24040-03×2i198601-198801
GRAY,GRAY,TRIM2#
main74610-24040-05×2i198601-198701
BEIGE,BEIGE,TRIM4#
main74610-24040-06×2i198601-198801
BROWN,BROWN,TRIM4#
74613PLUG, ASSIST GRIP
main74617-22010-16×4i198601-198801
BROWN,BROWN,TRIM4#
main74617-22010-43×4i198601-198801
GRAY,GRAY,TRIM2#
main74617-22010-45×4i198701-198801
BEIGE,BEIGE,TRIM4#
74671SUPPORT, ASSIST GRIP
main74671-22010-16×4i198601-198801
BROWN,BROWN,TRIM4#
main74671-22010-43×4i198601-198801
GRAY,GRAY,TRIM2#
main74671-22010-45×4i198601-198701
BEIGE,BEIGE,TRIM4#
74810PULL ASSY, DOOR, INSIDE
main74811-24010-01i198601-198801
RH,BLACK,BLACK,TRIM2#
main74811-24010-05i198601-198701
RH,BEIGE,DARK BEIGE,TRIM4#
main74811-24010-06i198601-198801
RH,BROWN,BROWN,TRIM4#
main74811-24020-01i198601-198801
LH,BLACK,BLACK,TRIM2#
main74811-24020-05i198701-198801
LH,BEIGE,DARK BEIGE,TRIM4#
main74811-24020-06i198601-198801
LH,BROWN,BROWN,TRIM4#
74812CCOVER, DOOR PULL HANDLE
main74812-24010-01×2i198601-198801
BLACK,BLACK,TRIM2#
main74812-24010-05×2i198601-198701
BEIGE,DARK BEIGE,TRIM4#
9015960081
main90159-60081
9015960203
main90159-60203
9015960306
main90159-60306
9016250009
main90162-50009
9020205005
main90202-05005
9046710012
main90467-10012
9353055020
main93530-55020

18 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota SOARER

This section contains 18 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SOARER. Key components include: PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH, VISOR ASSY, RH, VISOR ASSY, LH, HOLDER, VISOR.
