Toyota SOARER — ARMREST & VISOR

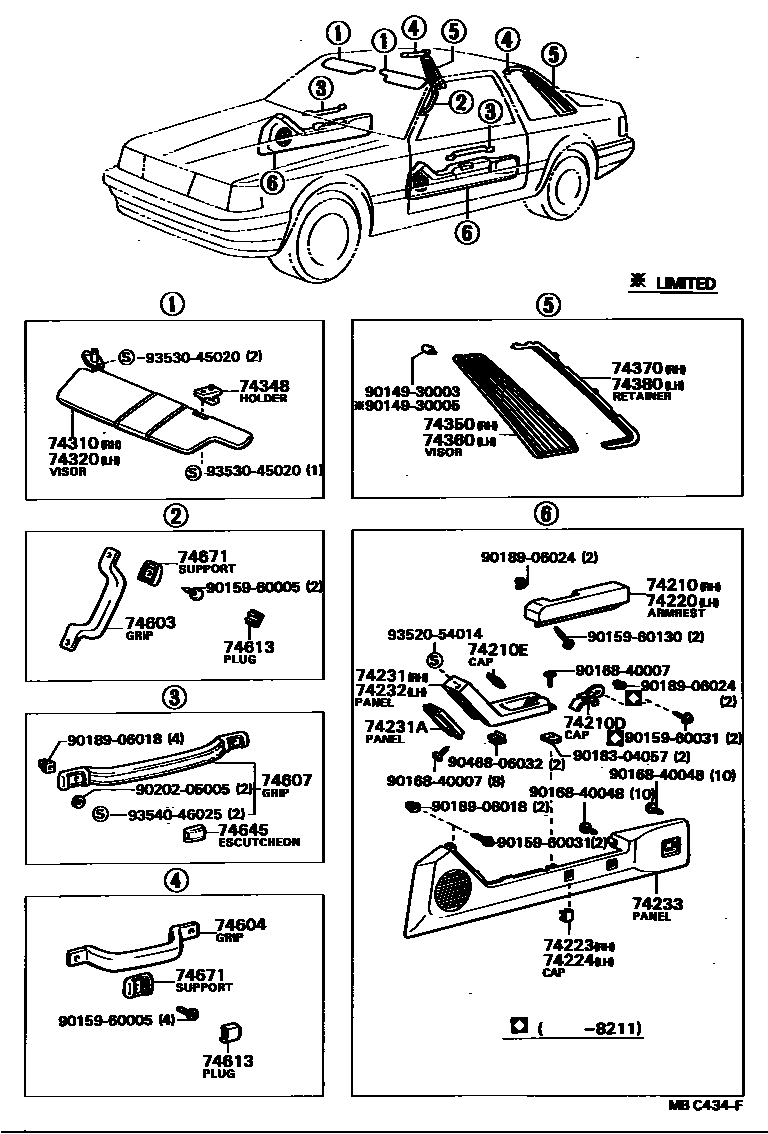

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-24010-01i198102-198203
BLACK,BLACK,TRIM2#
main74210-24010-02i198102-198302
TERRA COTTA,RED/MAROON,TRIM3#
main74210-24010-03i198203-198302
GRAY,GRAY,TRIM1#
main74210-24010-04i198102-198512
BLUE,BLUE,TRIM8#
main74210-24010-05i198302-198512
BEIGE,BEIGE,TRIM4#
main74210-24010-12i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
74210DCAP, DOOR ARMREST
main74270-24010-01i198102-198203
RH,BLACK,BLACK,TRIM2#
main74270-24010-02i198102-198302
RH,TERRA COTTA,RED/MAROON,TRIM3#
main74270-24010-03i198203-198302
RH,GRAY,GRAY,TRIM1#
main74270-24010-04i198102-198512
RH,BLUE,BLUE,TRIM8#
main74270-24010-05i198302-198512
RH,BEIGE,BEIGE,TRIM4#
main74270-24010-12i198302-198512
RH,DEEP MAROON,RED/MAROON,TRIM3#
main74280-24010-01i198102-198203
LH,BLACK,BLACK,TRIM2#
main74280-24010-02i198102-198302
LH,TERRA COTTA,RED/MAROON,TRIM3#
main74280-24010-03i198203-198302
LH,GRAY,GRAY,TRIM1#
main74280-24010-04i198102-198512
LH,BLUE,BLUE,TRIM8#
main74280-24010-05i198302-198512
LH,BEIGE,BEIGE,TRIM4#
main74280-24010-12i198302-198512
LH,DEEP MAROON,RED/MAROON,TRIM3#
74210ECAP, DOOR ARMREST, NO.2
main74267-24010-01×2i198102-198203
BLACK,BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
main74220-24010-01i198102-198203
BLACK,BLACK,TRIM2#
main74220-24010-02i198102-198302
TERRA COTTA,RED/MAROON,TRIM3#
main74220-24010-03i198203-198302
GRAY,GRAY,TRIM1#
main74220-24010-04i198102-198512
BLUE,BLUE,TRIM8#
main74220-24010-05i198302-198512
BEIGE,BEIGE,TRIM4#
main74220-24010-12i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
74223CAP, DOOR ARMREST, RH
main74237-24010-02×2i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74237-24010-03×2i198102-198302
GRAY,GRAY,TRIM1#,2#
main74237-24010-04×2i198102-198302
LIGHT BLUE,BLUE,TRIM8#
main74237-24010-05×2i198102-198302
LIGHT BEIGE,BEIGE,TRIM3#
main74237-24010-15×2i198302-198512
BEIGE,BEIGE,TRIM4#
main74237-24010-24×2i198302-198512
BLUE,BLUE,TRIM8#
main74237-24020-02×2i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74237-24020-03×2i198102-198302
GRAY,GRAY,TRIM1#,2#
main74237-24020-04×2i198102-198302
LIGHT BLUE,BLUE,TRIM8#
main74237-24020-05×2i198102-198302
LIGHT BEIGE,BEIGE,TRIM3#
main74237-24020-06×2i198203-198302
LIMITED,BROWN,BROWN,TRIM3#
main74237-24020-14×2i198302-198512
BLUE,BLUE,TRIM8#
main74237-24020-15×2i198302-198512
BEIGE,BEIGE,TRIM4#
74224CAP, DOOR ARMREST, LH
main74237-24010-02×2i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74237-24010-03×2i198102-198302
GRAY,GRAY,TRIM1#,2#
main74237-24010-04×2i198102-198302
LIGHT BLUE,BLUE,TRIM8#
main74237-24010-05×2i198102-198302
LIGHT BEIGE,BEIGE,TRIM3#
main74237-24010-15×2i198302-198512
BEIGE,BEIGE,TRIM4#
main74237-24010-24×2i198302-198512
BLUE,BLUE,TRIM8#
main74237-24020-02×2i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74237-24020-03×2i198102-198302
GRAY,GRAY,TRIM1#,2#
main74237-24020-04×2i198102-198302
LIGHT BLUE,BLUE,TRIM8#
main74237-24020-05×2i198102-198302
LIGHT BEIGE,BEIGE,TRIM3#
main74237-24020-06×2i198203-198302
LIMITED,BROWN,BROWN,TRIM3#
main74237-24020-14×2i198302-198512
BLUE,BLUE,TRIM8#
main74237-24020-15×2i198302-198512
BEIGE,BEIGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-24010-01i198102-198203
BLACK,BLACK,TRIM2#
main74231-24010-02i198102-198302
TERRA COTTA,RED/MAROON,TRIM3#
main74231-24010-03i198203-198302
GRAY,GRAY,TRIM1#
main74231-24010-04i198102-198512
BLUE,BLUE,TRIM8#
main74231-24010-05i198302-198512
BEIGE,BEIGE,TRIM4#
main74231-24010-12i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
74231APANEL, FRONT DOOR ARMREST BASE, UPPER NO.3
main74241-24010×2i198102-198203
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-24010-01i198102-198203
BLACK,BLACK,TRIM2#
main74232-24010-02i198102-198302
TERRA COTTA,RED/MAROON,TRIM3#
main74232-24010-03i198203-198302
GRAY,GRAY,TRIM1#
main74232-24010-04i198102-198512
BLUE,BLUE,TRIM8#
main74232-24010-05i198302-198512
BEIGE,BEIGE,TRIM4#
main74232-24010-12i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
74233PANEL, FRONT ARMREST BASE, LOWER
main74230-24010-02i198302-198512
RH,DEEP MAROON,RED/MAROON,TRIM3#
main74230-24010-03i198102-198302
RH,GRAY,GRAY,TRIM1#,2#
main74230-24010-04i198102-198302
RH,LIGHT BLUE,BLUE,TRIM8#
main74230-24010-05i198102-198302
RH,LIGHT BEIGE,BEIGE,TRIM3#
main74230-24010-14i198302-198512
RH,BLUE,BLUE,TRIM8#
main74230-24010-15i198302-198512
RH,BEIGE,BEIGE,TRIM4#
main74230-24020-02i198302-198501
LIMITED,RH,DEEP MAROON,RED/MAROON,TRIM3#
main74230-24020-06i198203-198302
LIMITED,RH,BROWN,BROWN,TRIM3#
main74233-24010-02i198302-198512
RH,DEEP MAROON,RED/MAROON,TRIM3#
main74233-24010-03i198102-198302
RH,GRAY,GRAY,TRIM1#,2#
main74233-24010-04i198102-198302
RH,LIGHT BLUE,BLUE,TRIM8#
main74233-24010-05i198302-198512
RH,BEIGE,BEIGE,TRIM4#
main74233-24010-14i198302-198512
RH,BLUE,BLUE,TRIM8#
main74234-24010-02i198302-198512
LH,DEEP MAROON,RED/MAROON,TRIM3#
main74234-24010-03i198102-198302
LH,GRAY,GRAY,TRIM1#,2#
main74234-24010-04i198102-198302
LH,LIGHT BLUE,BLUE,TRIM8#
main74234-24010-05i198302-198512
LH,BEIGE,BEIGE,TRIM4#
main74234-24010-14i198302-198512
LH,BLUE,BLUE,TRIM8#
main74240-24010-02i198302-198512
LH,DEEP MAROON,RED/MAROON,TRIM3#
main74240-24010-03i198102-198302
LH,GRAY,GRAY,TRIM1#,2#
main74240-24010-04i198102-198302
LH,LIGHT BLUE,BLUE,TRIM8#
main74240-24010-05i198102-198302
LH,LIGHT BEIGE,BEIGE,TRIM3#
main74240-24010-14i198302-198512
LH,BLUE,BLUE,TRIM8#
main74240-24010-15i198302-198512
LH,BEIGE,BEIGE,TRIM4#
main74240-24020-02i198302-198501
LIMITED,LH,DEEP MAROON,RED/MAROON,TRIM3#
main74240-24020-06i198203-198302
LIMITED,LH,BROWN,BROWN,TRIM3#
74310VISOR ASSY, RH
main74310-24010i198102-198302
VL,IVORY
main74310-24020i198302-198512
W/SUN ROOF,FB,IVORY
main74310-24030i198302-198512
FB,IVORY
main74310-24040i198501-198512
FB,IVORY
main74310-24050i198203-198501
LIMITED,W/SUN ROOF,FB,IVORY
74320VISOR ASSY, LH
main74320-24010i198302-198512
VL,IVORY
main74320-24020i198203-198302
FB,IVORY
main74320-24030i198501-198512
FB,IVORY
74348HOLDER, VISOR
main74348-12010-08×2i198102-198512
IVORY,IVORY
74350VISOR ASSY, QUARTER WINDOW, RH
main74491-24010i198102-198302
main74491-24020-02i198203-198302
LIMITED,TERRA COTTA,RED/MAROON,TRIM3#
main74491-24020-12i198501-198512
DEEP MAROON,RED/MAROON,TRIM3#
74360VISOR ASSY, QUARTER WINDOW, LH
main74492-24010i198102-198302
main74492-24020-02i198203-198302
LIMITED,TERRA COTTA,RED/MAROON,TRIM3#
main74492-24020-12i198302-198501
LIMITED,DEEP MAROON,RED/MAROON,TRIM3#
74370RETAINER ASSY, QUARTER WINDOW VISOR, RH
main74370-24010i198302-198512
main74370-24020-02i198203-198302
LIMITED,TERRA COTTA,TERACOTTA,TRIM3#
main74370-24020-12i198302-198501
LIMITED,DEEP MAROON,DEEP MAROON,TRIM3#
74380RETAINER ASSY, QUARTER WINDOW VISOR, LH
main74380-24010i198102-198302
main74380-24020-02i198203-198302
LIMITED,TERRA COTTA,TERACOTTA,TRIM3#
main74380-24020-12i198501-198512
DEEP MAROON,DEEP MAROON,TRIM3#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-24010-01i198102-198203
BLACK,BLACK,TRIM2#
main74610-24010-02i198102-198302
TERRA COTTA,RED/MAROON,TRIM3#
main74610-24010-03i198203-198302
GRAY,GRAY,TRIM1#
main74610-24010-04i198102-198302
BLUE,BLUE,TRIM8#
main74610-24010-05i198302-198512
BEIGE,BEIGE,TRIM4#
main74610-24010-12i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
main74610-24010-14i198302-198512
BLUE,BLUE,TRIM8#
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-22020-08×2i198102-198302
IVORY,IVORY
main74610-22010-08×2i198302-198512
IVORY,IVORY
74607GRIP SUB-ASSY, FRONT DOOR ASSIST
main74630-14010-01×2i198102-198203
BLACK,BLACK,TRIM2#
main74630-14010-03×2i198203-198302
GRAY,GRAY,TRIM1#
main74630-14010-05×2i198302-198512
BEIGE,BEIGE,TRIM4#
main74630-14010-12×2i198102-198302
TERRA COTTA,RED/MAROON,TRIM3#
main74630-14010-14×2i198102-198302
BLUE,BLUE,TRIM8#
main74630-14010-22×2i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
74613PLUG, ASSIST GRIP
main74617-22010-01×2i198102-198203
FR,BLACK,BLACK,TRIM2#
main74617-22010-02×2i198102-198302
FR,TERRA COTTA,RED/MAROON,TRIM3#
main74617-22010-08×4i198302-198512
RR,IVORY,IVORY
main74617-22010-12×2i198302-198512
FR,DEEP MAROON,RED/MAROON,TRIM3#
main74617-22010-14×2i198102-198512
FR,BLUE,BLUE,TRIM8#
main74617-22010-25×2i198302-198512
FR,BEIGE,BEIGE,TRIM4#
main74617-22010-33×2i198203-198302
FR,GRAY,GRAY,TRIM1#
main74617-24010-08×4i198302-198512
RR,IVORY,IVORY
74645ESCUTCHEON, DOOR ASSIST GRIP
main74615-14010-01×4i198102-198203
BLACK,BLACK,TRIM2#
main74615-14010-03×4i198203-198302
GRAY,GRAY,TRIM1#
main74615-14010-05×4i198302-198512
BEIGE,BEIGE,TRIM4#
main74615-14010-12×4i198102-198302
TERRA COTTA,RED/MAROON,TRIM3#
main74615-14010-14×4i198102-198302
BLUE,BLUE,TRIM8#
main74615-14010-22×4i198302-198512
DEEP MAROON,RED/MAROON,TRIM3#
74671SUPPORT, ASSIST GRIP
main74671-22010-01×2i198102-198203
FR,BLACK,BLACK,TRIM2#
main74671-22010-02×2i198102-198302
FR,TERRA COTTA,RED/MAROON,TRIM3#
main74671-22010-08×4i198102-198302
RR,IVORY,IVORY
main74671-22010-12×2i198302-198512
FR,DEEP MAROON,RED/MAROON,TRIM3#
main74671-22010-14×2i198102-198512
FR,BLUE,BLUE,TRIM8#
main74671-22010-25×2i198302-198512
FR,BEIGE,BEIGE,TRIM4#
main74671-22010-33×2i198203-198302
FR,GRAY,GRAY,TRIM1#
main74671-24010×4i198102-198302
RR,IVORY
9014930003
main90149-30003
9014930005
main90149-30005
9015960005
main90159-60005
9015960031
main90159-60031
9015960130
main90159-60130
9016840007
main90168-40007
9016840048
main90168-40048
9018304057
main90183-04057
9018906018
main90189-06018
9018906024
main90189-06024
9020205005
main90202-05005
9046806032
main90468-06032
9352054014
main93520-54014
9353045020
main93530-45020
9354046025
main93540-46025

38 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota SOARER

This section contains 38 genuine Toyota parts for the ARMREST & VISOR system of the Toyota SOARER. Key components include: ARMREST ASSY, FRONT, RH, CAP, DOOR ARMREST, CAP, DOOR ARMREST, NO.2, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH.
