Toyota SOARER — ANTENNA

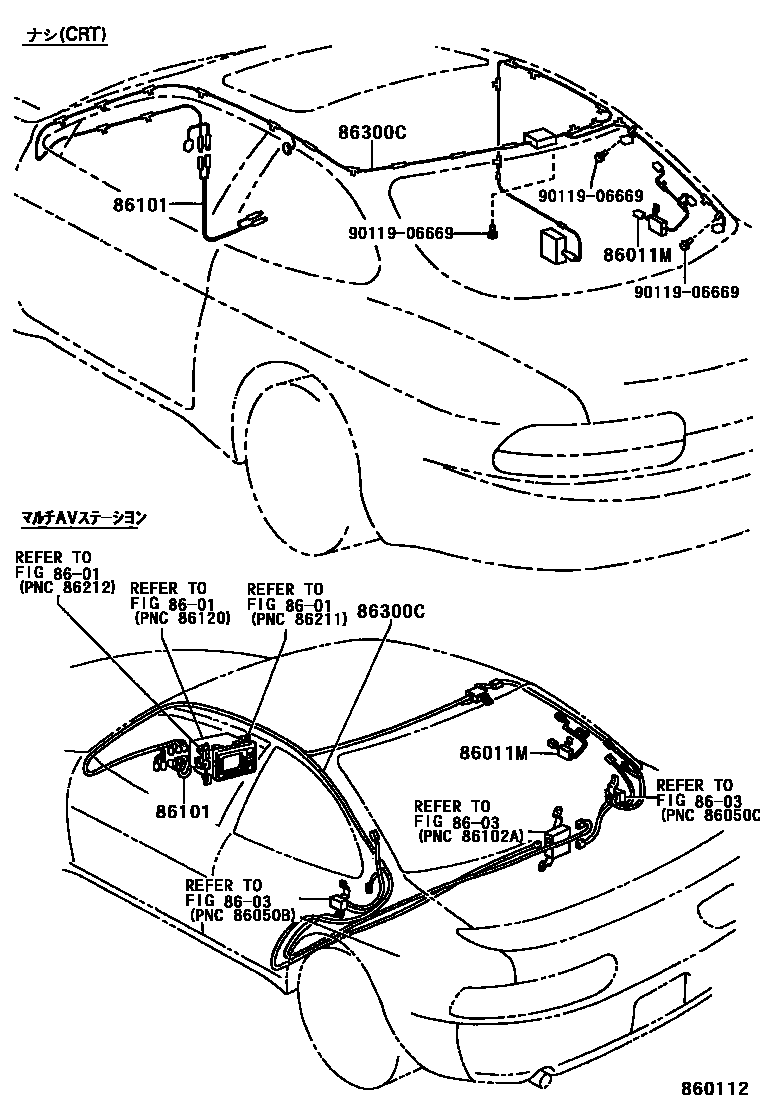

Parts diagram

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86011MFILTER, NOISE

main90980-05197i199105

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86101CORD SUB-ASSY, ANTENNA

main86101-24030i199105

main86101-24040i199105-199608

main86101-24080i199608

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-24100i199105-199401

main86300-24110i199105-199401

main86300-24120i199110-199401

main86300-24130i199110-199401

main86300-24140i199105-199608

main86300-24150i199105-199401

main86300-24160i199105-199401

main86300-24190i199401-199608

main86300-24200i199505-199608

main86300-24210i199401-199505

main86300-24220i199505-199608

main86300-24230i199401-199505

main86300-24240i199401-199505

main86300-24241i199505-199608

main86300-24250i199505-199608

main86300-24260i199505-199608

main86300-24280i199608-199709

main86300-24290i199608-199709

main86300-24300i199608

main86300-24310i199608

main86300-24320i199608

main86300-24330i199608

main86300-24350i199608

main86300-24360i199608

9011906669

main90119-06669

6 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota SOARER

This section contains 9 genuine Toyota parts for the ANTENNA system of the Toyota SOARER. Key components include: RADIO RECEIVER & AMPLIFIER & CONDENSER, FILTER, NOISE, NAVIGATION & FRONT MONITOR DISPLAY, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, AMPLIFIER, NO.1.
