Toyota SOARER — ACTIVE CONTROL

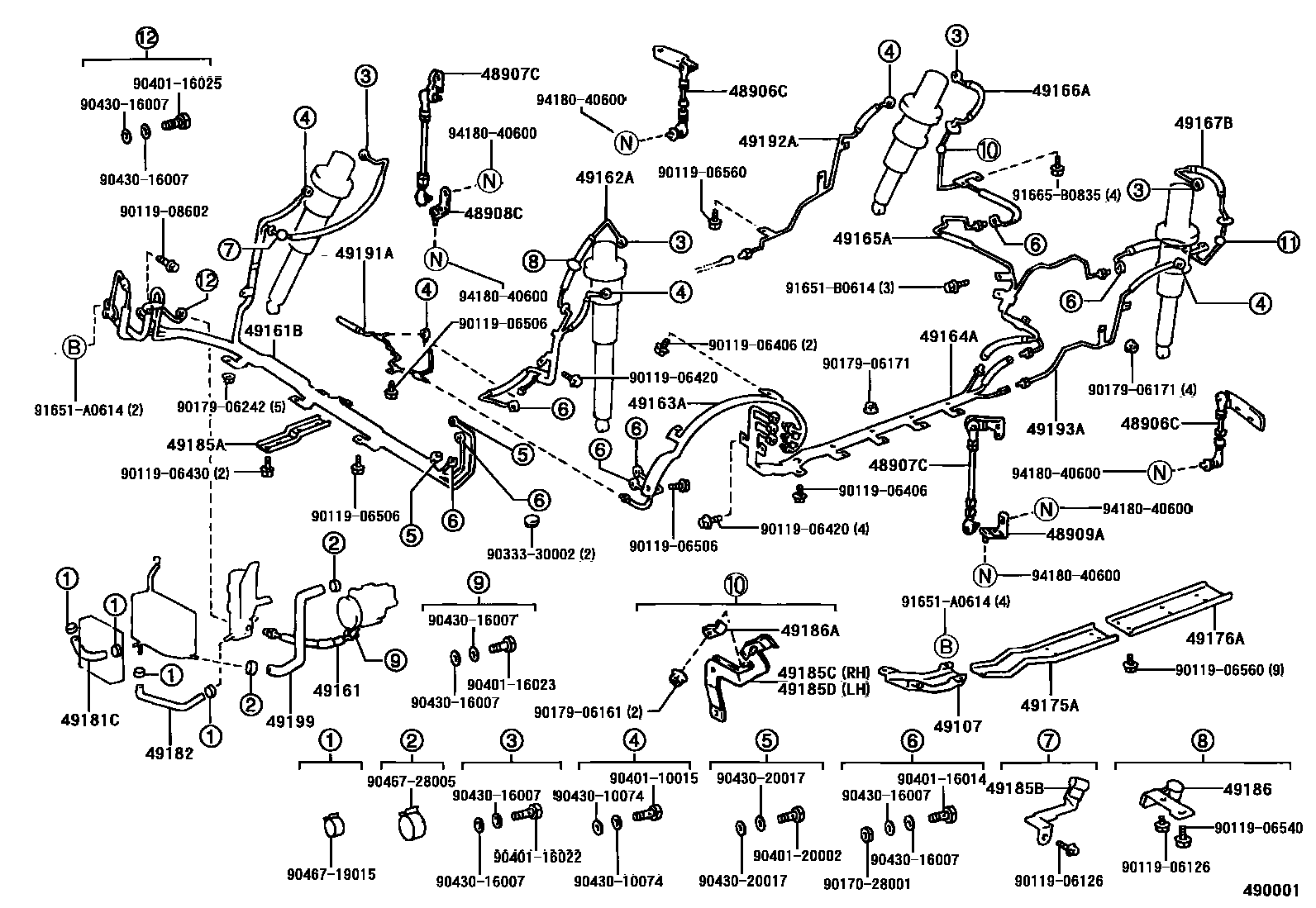

0001 1 0002 1 0003 1 0004 1 0005 1

48906CLINK, HEIGHT CONTROL SENSOR, REAR(FOR ACTIVE SUSPENSION)

main48906-24020iUZZ32199105-199608

main48906-24030iUZZ32199105-199608

48907CLINK, HEIGHT CONTROL SENSOR, FRONT(FOR ACTIVE SUSPENSION)

main48907-24050iUZZ32199105-199608

main48907-24060iUZZ32199105-199608

48908CBRACKET SUB-ASSY, ACTIVE SUSPENSION SENSOR LINK, RH

main48908-24030iUZZ32199105-199608

48909ABRACKET SUB-ASSY, ACTIVE SUSPENSION SENSOR LINK, LH

main48909-24010iUZZ32199105-199608

49107PROTECTOR ASSY, SUSPENSION CONTROL HOSE

main49107-24010iUZZ32199105-199106

main49107-24011iUZZ32199106-199608

49161HOSE, SUSPENSION CONTROL PRESSURE, NO.1

main49165-24060iUZZ32199105-199608

49161BTUBE ASSY, SUSPENSION CONTROL PRESSURE

main49160-24010iUZZ32199105-199401

main49160-24030iUZZ32199401-199608

49162ATUBE ASSY, SUSPENSION CONTROL PRESSURE, NO.2

main49170-24050iUZZ32199105-199608

49163ATUBE ASSY, SUSPENSION CONTROL PRESSURE, NO.3

main49170-24030iUZZ32199105-199608

49164ATUBE ASSY, SUSPENSION CONTROL PRESSURE, NO.4

main49170-24010iUZZ32199105-199608

49165ATUBE ASSY, SUSPENSION CONTROL PRESSURE, NO.5

main49170-24020iUZZ32199105-199608

49166HOSE, SUSPENSION CONTROL PRESSURE, NO.6

main49166-24070iUZZ32199105-199608

49166ATUBE ASSY, SUSPENSION CONTROL PRESSURE, NO.7

main49165-24050iUZZ32199105-199608

49167BTUBE ASSY, SUSPENSION CONTROL PRESSURE NO.8

main49166-24030iUZZ32199401-199608

main49166-24050iUZZ32199105-199401

49175APROTECTOR, SUSPENSION CONTROL TUBE, NO.1

main49175-24010iUZZ32199105-199608

49176APROTECTOR, SUSPENSION CONTROL TUBE, NO.2

main49176-24010iUZZ32199105-199608

49181HOSE, SUSPENSION CONTROL RETURN

main49181-24030iUZZ32199105-199608

49181CHOSE, SUSPENSION CONTROL RETURN, NO.2

main49182-24010iUZZ32199105-199401

main49182-24030iUZZ32199401-199608

49182HOSE, SUSPENSION CONTROL RETURN, NO.3

main49182-24020iUZZ32199105-199608

49185ABRACKET, SUSPENSION CONTROL TUBE, NO.1

main49185-24010iUZZ32199105-199608

49185BBRACKET, SUSPENSION CONTROL HOSE, NO.2

main49185-24040iUZZ32199105-199608

49185CBRACKET, SUSPENSION CONTROL HOSE, NO.4

main49185-24050iUZZ32199105-199608

49185DBRACKET, SUSPENSION CONTROL HOSE, NO.5

main49185-24060iUZZ32199105-199608

49186BRACKET, SUSPENSION CONTROL HOSE, NO.3

main49186-24040iUZZ32199105-199608

49186ABRACKET, SUSPENSION CONTROL HOSE, NO.6

main49186-24050×2iUZZ32199105-199608

49191HOSE, SUSPENSION CONTROL DRAIN

main49192-24030iUZZ32199105-199608

49191ATUBE, SUSPENSION CONTROL DRAIN, NO.1

main49192-24040iUZZ32199105-199608

49192ATUBE, SUSPENSION CONTROL DRAIN, NO.2

main49194-24010iUZZ32199105-199107

main49194-24011iUZZ32199107-199608

49193ATUBE, SUSPENSION CONTROL DRAIN, NO.3

main49195-24010iUZZ32199105-199608

49199HOSE, SUSPENSION CONTROL SUCTION

main49199-24010iUZZ32199105-199311

main49199-24011iUZZ32199311-199608

9011906126

main90119-06126

9011906406

main90119-06406

9011906420

main90119-06420

9011906430

main90119-06430

9011906506

main90119-06506

9011906540

main90119-06540

9011906560

main90119-06560

9011908602

main90119-08602

9017028001

main90170-28001

9017906161

main90179-06161

9017906171

main90179-06171

9017906242

main90179-06242

9033330002

main90333-30002

9040110015

main90401-10015

9040116014

main90401-16014

9040116022

main90401-16022

9040116023

main90401-16023

9040116025

main90401-16025

9040120002

main90401-20002

9043010074

main90430-10074

9043016007

main90430-16007

9043020017

main90430-20017

9046719015

main90467-19015

9046728005

main90467-28005

91651A0614

main91651-A0614

91651B0614

main91651-B0614

91665B0835

main91665-B0835

9418040600

main94180-40600

58 parts on this diagram · 5 diagrams in section
