Toyota SOARER — ACCELERATOR LINK

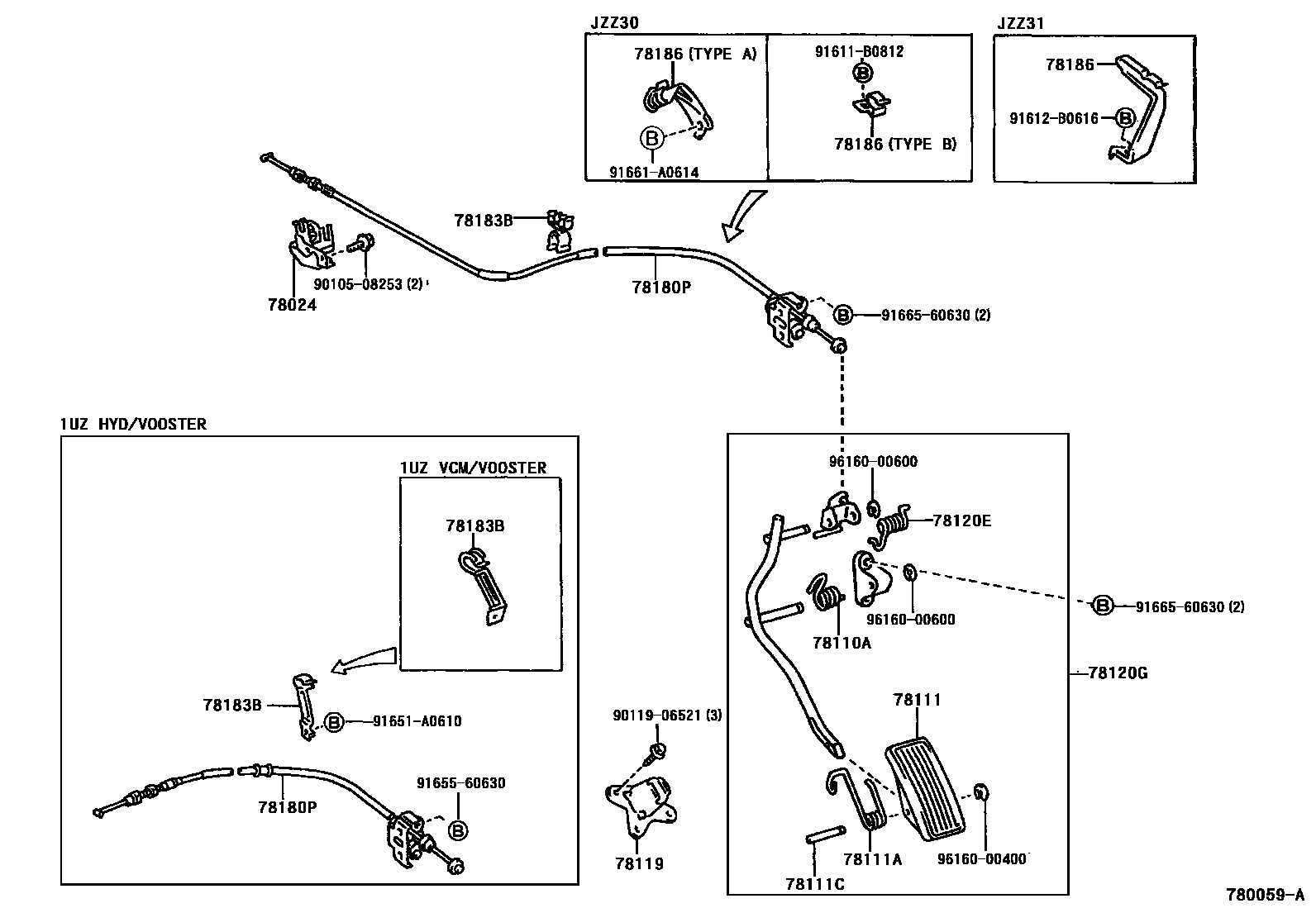

Parts diagram

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-88400i199105

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18060i199105

78111PEDAL, ACCELERATOR

main78111-12100i199105

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-23088i199105-199401

main90508-23121i199105-199401

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001i199105

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-24010i199109-199401

78120ESPRING, TENSION (FOR ACCELERATOR LINK ROD)

main90508-29022i199105-199207

78120GROD ASSY, ACCELERATOR PEDAL

main78120-24040i199105-199401

main78120-24060i199401

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-1B100i199401-199709

main78180-24080i199105

main78180-24100i199105-199205

main78180-24160i199105-199401

main78180-24190i199205-199709

main78180-24200i199709

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-24010i199105-199205

main78183-24020i199105-199307

main78183-24040i199105-199401

main78183-24050i199307

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-24040i199105

main88276-14110i199401

main88276-24030i199608

9010508253

main90105-08253

9011906521

main90119-06521

91611B0812

main91611-B0812

91612B0616

main91612-B0616

91651A0610

main91651-A0610

9165560630

main91655-60630

91661A0614

main91661-A0614

9166560630

main91665-60630

9616000400

main96160-00400

9616000600

main96160-00600

21 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota SOARER

This section contains 21 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota SOARER. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), PIN (FOR ACCELERATOR PEDAL).
