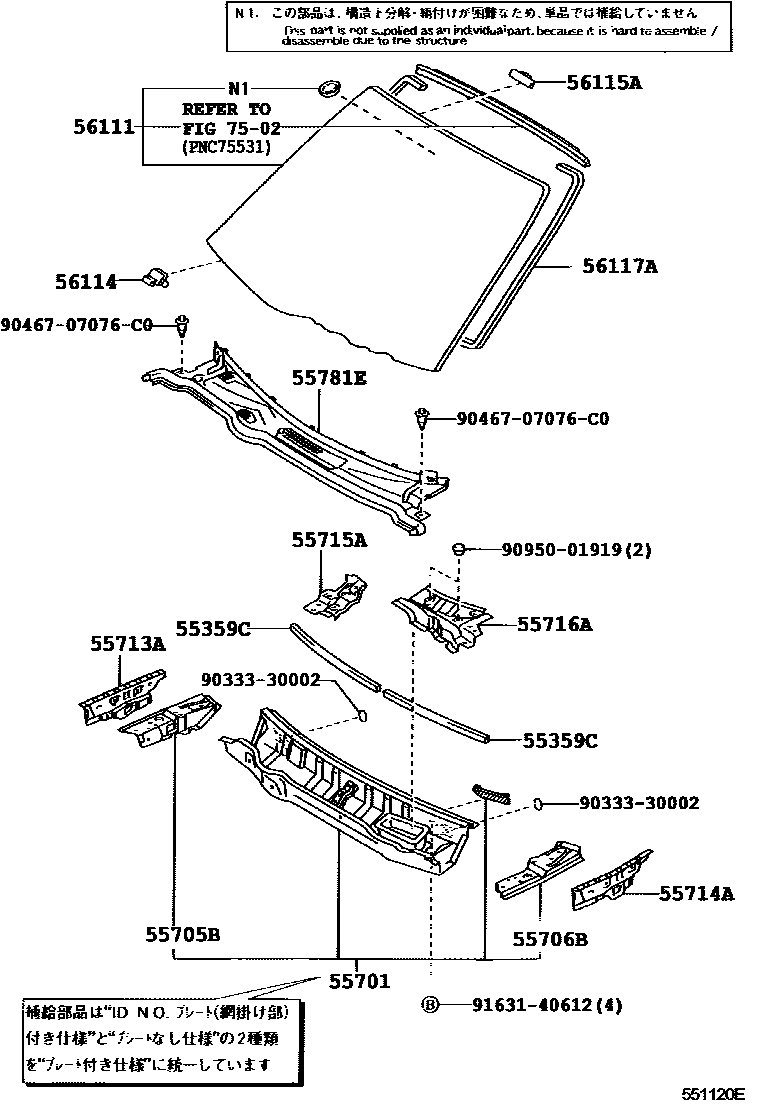

Toyota SOARER/LEXUS SC430 — COWL PANEL & WINDSHIELD GLASS

55359CCOSHION, INSTRUMENT PANEL, NO.5

main55359-50010×2i200104-200508

55701PANEL SUB-ASSY, COWL

main55700-24120i200104-200508

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-24030i200104-200508

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-24030i200104-200508

55713APANEL, COWL TOP SIDE, RH

main55713-24040i200104-200508

55714APANEL, COWL TOP SIDE, LH

main55714-24040i200104-200508

55715ABRACE, COWL TOP TO APRON, RH

main55715-24060i200104-200508

55716ABRACE, COWL TOP TO APRON, LH

main55716-24060i200104-200508

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-24020i200104-200508

56111GLASS, WINDSHIELD

main56101-24030i200104-200301

main56101-24060i200301-200312

main56101-24061i200312-200508

main56101-24090i200508-200808

main56101-24100i200808

56114RETAINER, WINDSHIELD GLASS

main56114-50020×2i200104-200508

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56116-35050×2i200104-200508

56117ADAM, WINDOW GLASS ADHESIVE

main56117-24060i200104-200508

7502FRONT MOULDING

→ Go to FIG 75-02

9033330002

main90333-30002

9046707076C0

main90467-07076C0

9095001919

main90950-01919

9163140612

main91631-40612

18 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota SOARER/LEXUS SC430

This section contains 18 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota SOARER/LEXUS SC430. Key components include: COSHION, INSTRUMENT PANEL, NO.5, PANEL SUB-ASSY, COWL, PANEL SUB-ASSY, COWL TOP SIDE, RH, PANEL SUB-ASSY, COWL TOP SIDE, LH, PANEL, COWL TOP SIDE, RH.
