Toyota SOARER/LEXUS SC430 — CONSOLE BOX & BRACKET
55406FPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
ECRU BROWN,TRIM01,21,41
DK.GRAY,TRIM03,23,3#,43
MD.BROWN,TRIM00,20,40
DK.BROWN,TRIM02,22,42
ECRU BROWN,TRIM0#
RED,TRIM3#
MD.BROWN,TRIM20,21
ECRU BROWN,TRIM01,21,31,41
DK.GRAY,TRIM03,23,24,33,43
"THE ETERNAL JEWEL" *(J),MD.BROWN,TRIM08,28,51,52
"THE ETERNAL JEWEL" *(J),DK.BROWN,TRIM07,44,45
55420BPANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1
ECRU BROWN,TRIM01,21,31,41
DK.GRAY,TRIM03,23,24,33,43
MD.BROWN,TRIM00,20,30,40
DK.BROWN,TRIM02,22,32,42
ECRU BROWN,TRIM0#
RED,TRIM3#
MD.BROWN,TRIM20,21
55434HPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55539ACOVER, SPARE SWITCH HOLE
BLACK
55620BHOLDER, INSTRUMENT PANEL CUP
55665ABEZEL, CONSOLE BOX REGISTER, LOWER RH
ECRU,TRIM0#
BLACK,TRIM20
RED,TRIM3#
SADDLE TAN,TRIM21
CAMEL,TRIM4#
55666BEZEL, CONSOLE BOX REGISTER, LOWER LH
ECRU,TRIM0#
BLACK,TRIM20
RED,TRIM3#
SADDLE TAN,TRIM21
CAMEL,TRIM4#
58801EBOX SUB-ASSY, CONSOLE, UPPER
ECRU,TRIM0#
BLACK,TRIM20
RED,TRIM3#
SADDLE TAN,TRIM21
CAMEL,TRIM4#
ECRU,TRIM0#
BLACK,TRIM2#
RED,TRIM3#
CAMEL,TRIM4#
ECRU,TRIM0#
BLACK,TRIM24
BLACK,TRIM20,21,22,23
RED,TRIM3#
CAMEL,TRIM4#
"THE ETERNAL JEWEL" *(J),ECRU/BLACK,TRIM25
"THE ETERNAL JEWEL" *(J),ECRU/RED,TRIM34
"THE ETERNAL JEWEL" *(J),ECRU/CAMEL,TRIM44
"THE ETERNAL JEWEL" *(J),BLACK/ECRU,TRIM05
"THE ETERNAL JEWEL" *(J),BLACK/RED,TRIM35
"THE ETERNAL JEWEL" *(J),BLACK/CAMEL,TRIM45
"THE ETERNAL JEWEL" *(J),RED/ECRU,TRIM06
"THE ETERNAL JEWEL" *(J),RED/BLACK,TRIM26
"THE ETERNAL JEWEL" *(J),CAMEL/CAMEL/ECRU,TRIM07
"THE ETERNAL JEWEL" *(J),SADDLE TAN/ECRU,TRIM08,51
"THE ETERNAL JEWEL" *(J),CAMEL/BLACK,TRIM27
"THE ETERNAL JEWEL" *(J),SADDLE TAN/BLACK,TRIM28,51
58804APANEL SUB-ASSY, CONSOLE, UPPER
ECRU BROWN,TRIM0#
DK.GRAY,TRIM03,23,24,33,43
RED,TRIM3#
"THE ETERNAL JEWEL" *(J),MD.BROWN,TRIM08,28,51,52
DK.BROWN,TRIM02,22,32,42
58818ACOVER, CONSOLE BOX, FR
58829POCKET, CONSOLE BOX
ECRU,TRIM0#
BLACK,TRIM2#
RED,TRIM3#
SADDLE TAN,TRIM21
CAMEL,TRIM4#
ECRU,TRIM0#
BLACK,TRIM2#
RED,TRIM3#
CAMEL,TRIM4#
58831AGARNISH, CONSOLE UPPER PANEL, FRONT
ECRU,TRIM0#
ECRU,TRIM0#
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
RED,TRIM3#
SADDLE TAN,TRIM21
SADDLE TAN,TRIM21
CAMEL,TRIM4#
"THE ETERNAL JEWEL" *(J),CAMEL,TRIM07,27,51
58832AGARNISH, CONSOLE UPPER PANEL, REAR
ECRU,TRIM0#
BLACK,TRIM20
SADDLE TAN,TRIM21
RED,TRIM3#
CAMEL,TRIM4#
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58920AARMREST ASSY, REAR CONSOLE
RED,TRIM3#
ECRU,TRIM0#
BLACK,TRIM20
SADDLE TAN,TRIM21
ECRU,TRIM0#
BLACK,TRIM2#
RED,TRIM3#
CAMEL,TRIM4#
ECRU,TRIM0#
BLACK,TRIM2#
RED,TRIM3#
CAMEL,TRIM4#
"THE ETERNAL JEWEL" *(J),ECRU/BLACK,TRIM25
"THE ETERNAL JEWEL" *(J),ECRU/RED,TRIM34
"THE ETERNAL JEWEL" *(J),ECRU/CAMEL,TRIM44
"THE ETERNAL JEWEL" *(J),BLACK/ECRU,TRIM05
"THE ETERNAL JEWEL" *(J),BLACK/RED,TRIM35
"THE ETERNAL JEWEL" *(J),BLACK/CAMEL,TRIM45
"THE ETERNAL JEWEL" *(J),RED/ECRU,TRIM06
"THE ETERNAL JEWEL" *(J),RED/BLACK,TRIM26
"THE ETERNAL JEWEL" *(J),CAMEL/ECRU,TRIM07
"THE ETERNAL JEWEL" *(J),SADDLE TAN/ECRU,TRIM08,51
"THE ETERNAL JEWEL" *(J),CAMEL/BLACK,TRIM27
"THE ETERNAL JEWEL" *(J),SADDLE TAN/BLACK,TRIM28,51
58971LOCK, CONSOLE COMPARTMENT DOOR
BLACK,TRIM0#,20,21,3#
58991BRACKET, CONSOLE BOX MOUNTING, UPPER
58995ABRACKET, CONSOLE BOX MOUNTING, NO.1
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404ASH RECEPTACLE
8401SWITCH & RELAY & COMPUTER
8601RADIO RECEIVER & AMPLIFIER & CONDENSER
9011906050
main90119-06050
9015350010
main90153-50010
9016440057
main90164-40057
9017606045
main90176-06045
9046710201
main90467-10201
9046710203
main90467-10203
9046804160
main90468-04160
9054103078
main90541-03078
91631J0620
main91631-J0620
9166160616
main91661-60616
9354014012
main93540-14012
9354054010
main93540-54010
9356855012
main93568-55012
9356855014
main93568-55014
9356855016
main93568-55016
39 parts on this diagram · 1 diagram in section

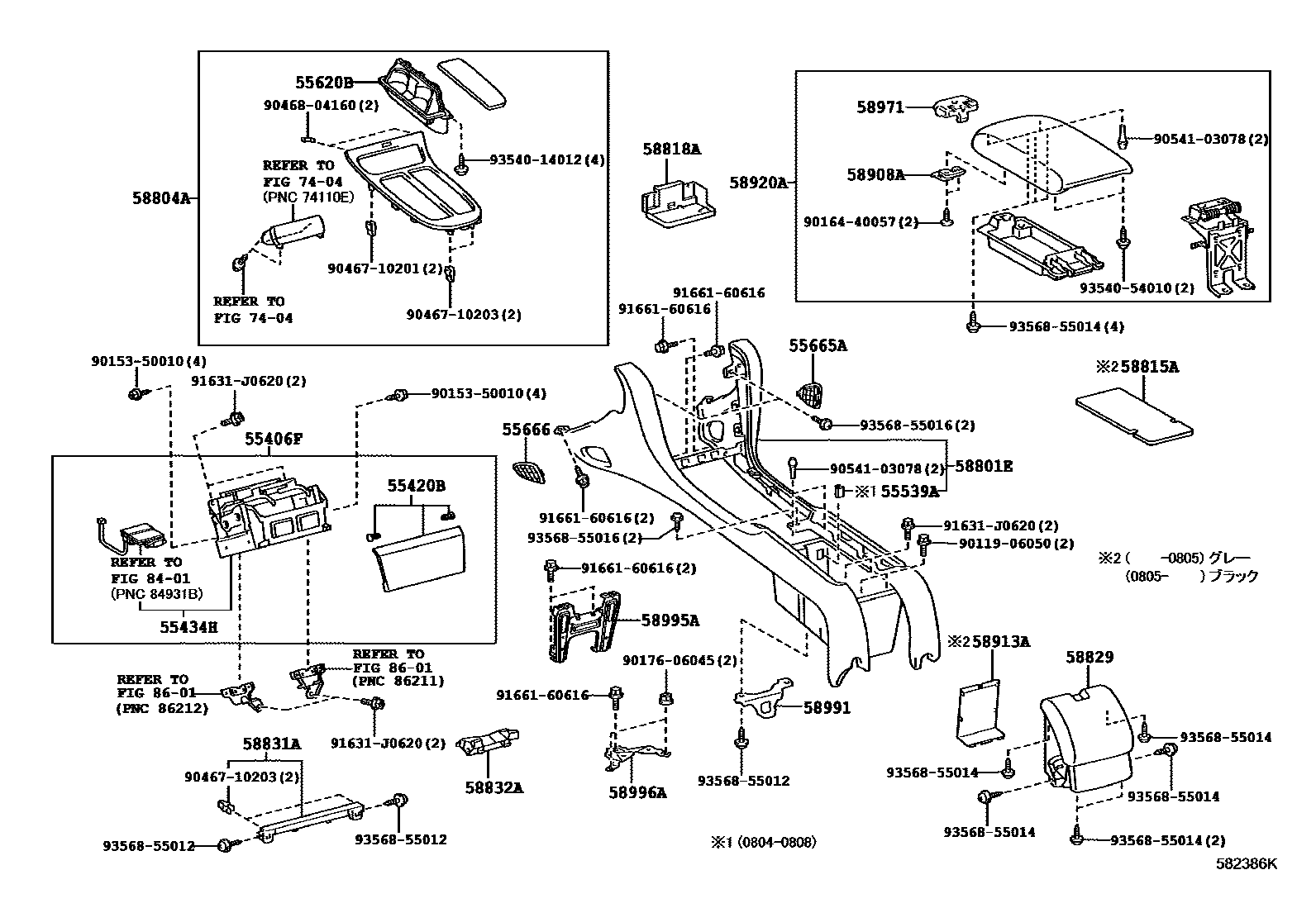

CONSOLE BOX & BRACKET for Toyota SOARER/LEXUS SC430
This section contains 39 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota SOARER/LEXUS SC430. Key components include: PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER, PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER NO.1, PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER, COVER, SPARE SWITCH HOLE, HOLDER, INSTRUMENT PANEL CUP.
