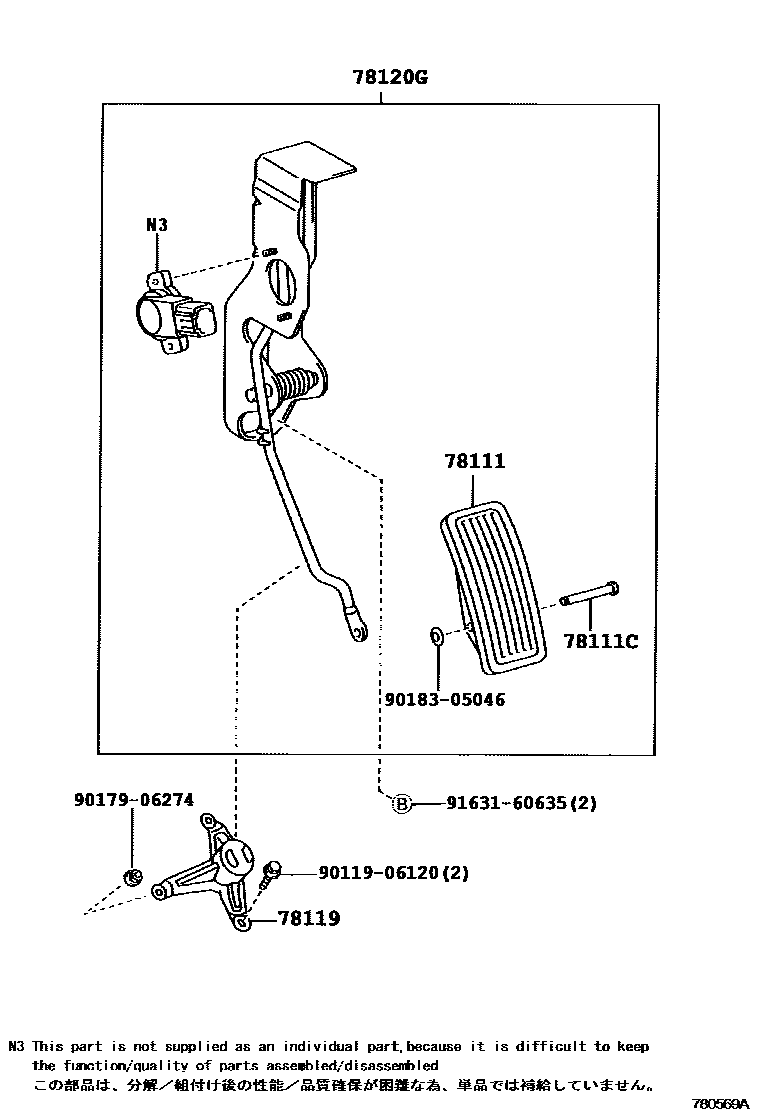

Toyota SOARER/LEXUS SC430 — ACCELERATOR LINK

78111PEDAL, ACCELERATOR

main78111-22020i200104-200508

78111CPIN (FOR ACCELERATOR PEDAL)

main90241-05022i200104-200508

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-30110i200104-200508

78120GROD ASSY, ACCELERATOR PEDAL

main78010-24010i200104-200508

9011906120

main90119-06120

9017906274

main90179-06274

9018305046

main90183-05046

9163160635

main91631-60635

8 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota SOARER/LEXUS SC430

This section contains 8 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota SOARER/LEXUS SC430. Key components include: PEDAL, ACCELERATOR, PIN (FOR ACCELERATOR PEDAL), STOPPER, ACCELERATOR PEDAL ROD, ROD ASSY, ACCELERATOR PEDAL.
