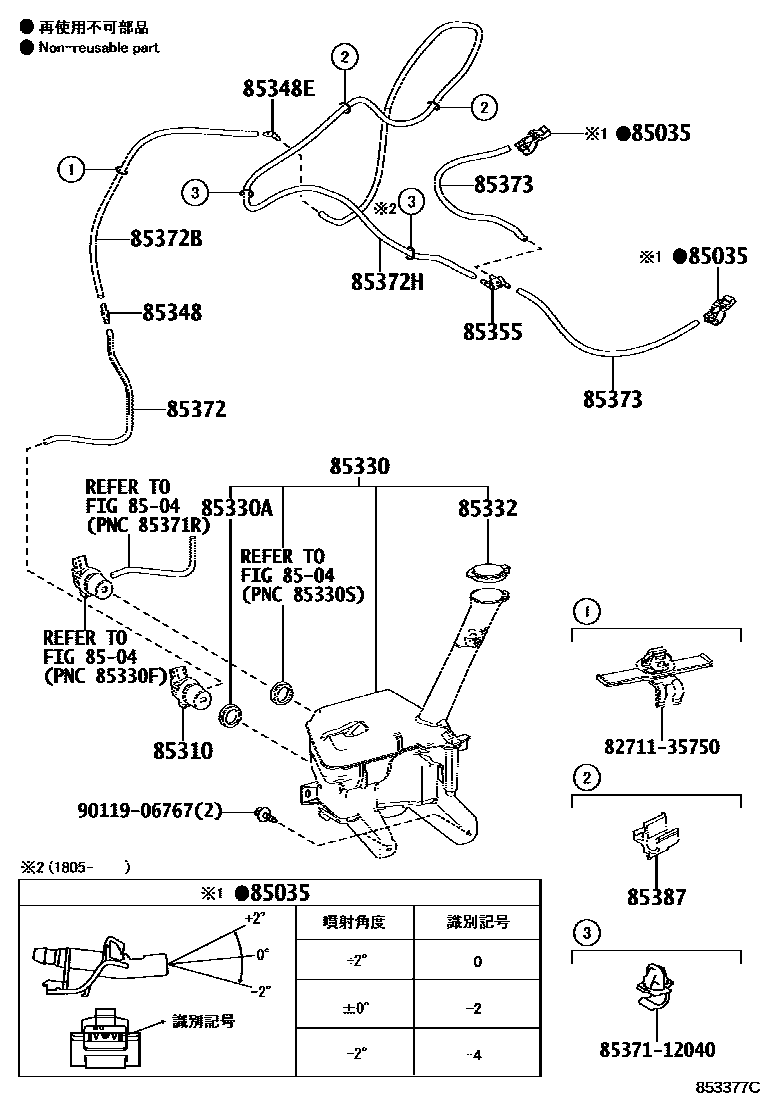

Toyota SIENTA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12400×2i201506-201809

main85381-12410×2i201506-201809

main85381-12420×2i201506-201809

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-21010i201809-202207

85330JAR ASSY, WINDSHIELD WASHER

main85315-52420i201506-201809

85330ABUSH, WINDSHIELD WASHER JAR

main85336-60300i201506-201809

85332CAP, WINDSHIELD WASHER JAR

main85316-16070i201506-201809

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i201809-202207

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-20200i201506-201809

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020i201506-201809

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080i201506-201809

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001i201506-201809

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001i201506-201809

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299×2i201506-201809

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85375-12540×2i201506-201809

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

17 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota SIENTA

This section contains 17 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota SIENTA. Key components include: NOZZLE SUB-ASSY, WASHER, REAR WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
