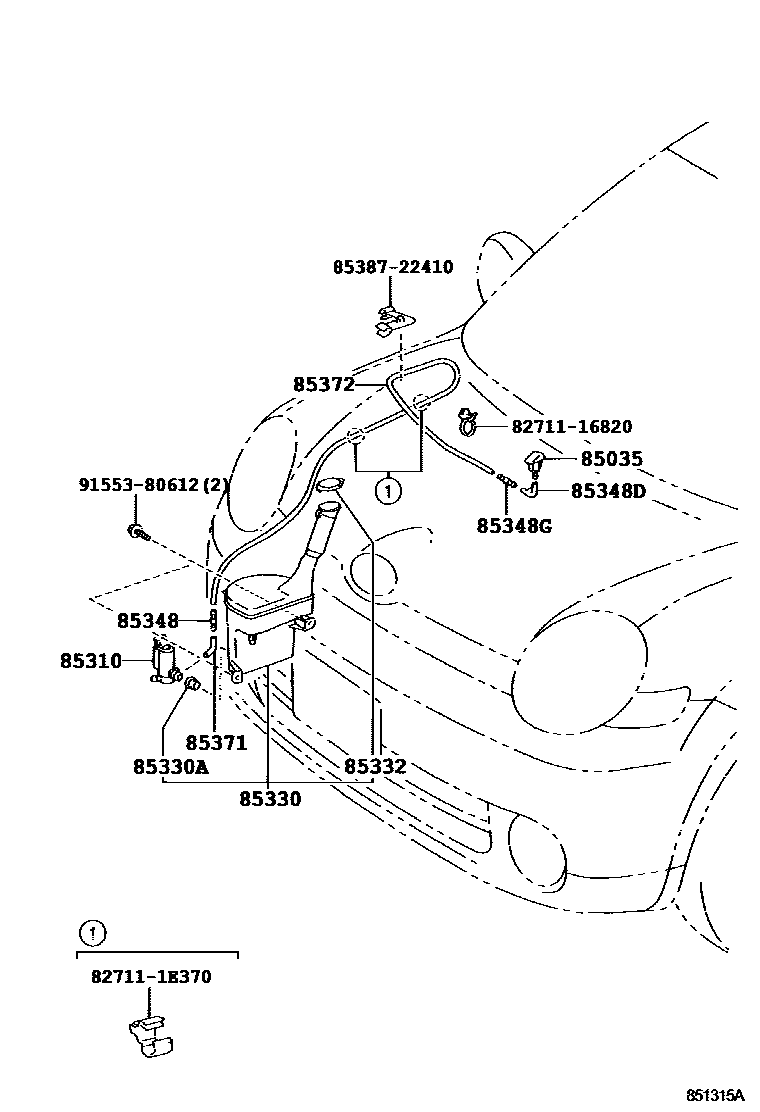

Toyota SIENTA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52150iNCP8#200309-200605

main85381-52151iNCP8#200803-201008

main85381-52400iNCP8#..DICE,DICEG201106

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-20460iNCP8#200605-201008

sub85330-20461

main85330-52010iNCP81..X200309-200605

85330JAR ASSY, WINDSHIELD WASHER

main85315-52050iNCP8#200309-200605

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNCP8#200309-200605

85332CAP, WINDSHIELD WASHER JAR

main85316-42011iNCP8#200309-200605

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNCP8#200309-200605

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85336-12230iNCP8#200309-200605

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNCP8#200605-201008

main85375-10260iNCP8#..DICE201106-201110

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP8#200309-200605

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33589iNCP8#..G,X201106

8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16820

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8538722410CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-22410

9155380612

main91553-80612

14 parts on this diagram · 1 diagram in section
